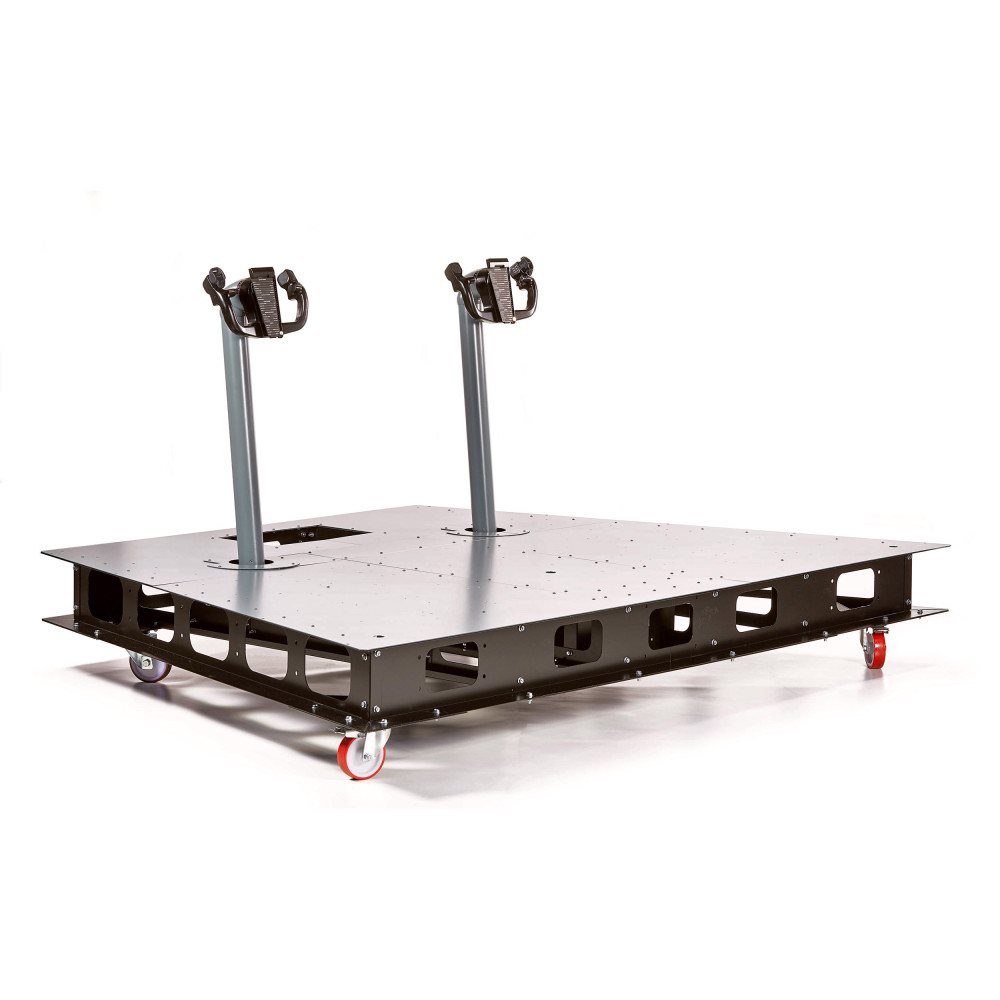

Floorstand with dual linked Yoke PRO with adjustable forces, fixed during simulation.
Preload and damping adjustment
Included in the product
System assembled and tested in FSC laboratories with the assistance of 737 pilots
Every single button, switch, lever and mechanism works to simulate the original
The extension of the yoke wheel reflects the actual inclination angle
Made of aluminum using high quality electrical/electronic materials
Compatible with SKU: 116526
| High quality OTTO switches |
Aviation quality buttons allow 1000000 actuations |
|
|---|---|---|
| Laser engraved labels, no adhesive labels |
All writings are laser engraved and painted white, they are not stickers |
|
| Bodnar Joystick card |
USB interface board designed for use with flight simulators, driving simulators, and other custom game controls. It supports up to 32 buttons. It has 8 analog inputs for potentiometers (for example, for joystick axes). Compatible with Windows without the need for additional drivers, as it uses standard HID (Human Interface Device) drivers. The board is plug-and-play, so once connected via USB, it is automatically recognized by the operating system |
|
| Double acting trim switches |
Split dual safety switch as found in the actual aircraft |
|
| High reading and movement precision |
Micrometric movements and readings from PLCs |
|
| Wheel axis with spiral gears |
Maximum precision, no mechanical play, maximum fluidity |
|
| Joystick board included |
USB connection, Standard Joystick |
| Accurate center position adjustment |
Ability to accurately adjust the center position of the column as in reality (7° forward) and the forward contact limits on the lower edge of the MIP |
|
|---|---|---|
| Wheels with 7 buttons |
Stab switch UP 1 Stab switch UP 2 Stab switch DOWN 1 Stab switch DOWN 2 AP disconnect pushbutton MIC pushbutton INT pushbutton |
|
| 15mm Wheel axle |
15 mm axis for greater reliability, with locking device for precise alignment of both wheels |
|
| Boeing style gray painted |
RAL 7011, Professional anti-corrosion coating |
|
| USB Connection |
All USB types are supported |
|
| Wheels included |
Pivoting wheels with brake |
|
| 1:1 real scale |
Designed by studying the dimensions of the original components |
With Pitch&Bank passive force control systems.
Real bank angle as the original.
Built to last over time and support the weight of the entire simulator.
It is possible to carry out all operations remaining on the upper side.
Wheels with brakes included.
The yoke wheel is created through aluminum casting.
Many professional pilots assist us to test and improve our products.
Aluminium gooseneck allows to protect the internal mechanism.
This system operate by applying a dynamic loading on the Pitch and Bank.
A USB connection can serve various purposes: in fact, USB is the acronym for "Universal Serial Bus."
Some of these connections are used to create virtual COM ports to allow serial communication.
The disadvantage of this solution is related to the fact that there are two connections on the PC: one to the peripheral and one to the operating system.
In fact, in Device Manager, you can see both the USB device and its corresponding COM port.
If software is using the COM port and the USB connection is lost, communication is interrupted, but the software continues to occupy the port.
When communication resumes, because the original port is still occupied, the driver will assign a new port with a different number, effectively preventing reconnection.
A solution could be a LAN TCP/IP connection.
Not all of our peripherals have dual ports (USB and LAN), but where they are solely USB, it is a design choice to simplify circuitry or for reasons strictly related to speed (such as the Control Loading system).
For HID peripherals (joysticks), these problems do not occur because the peripheral is always recognized even if it was previously disconnected.
