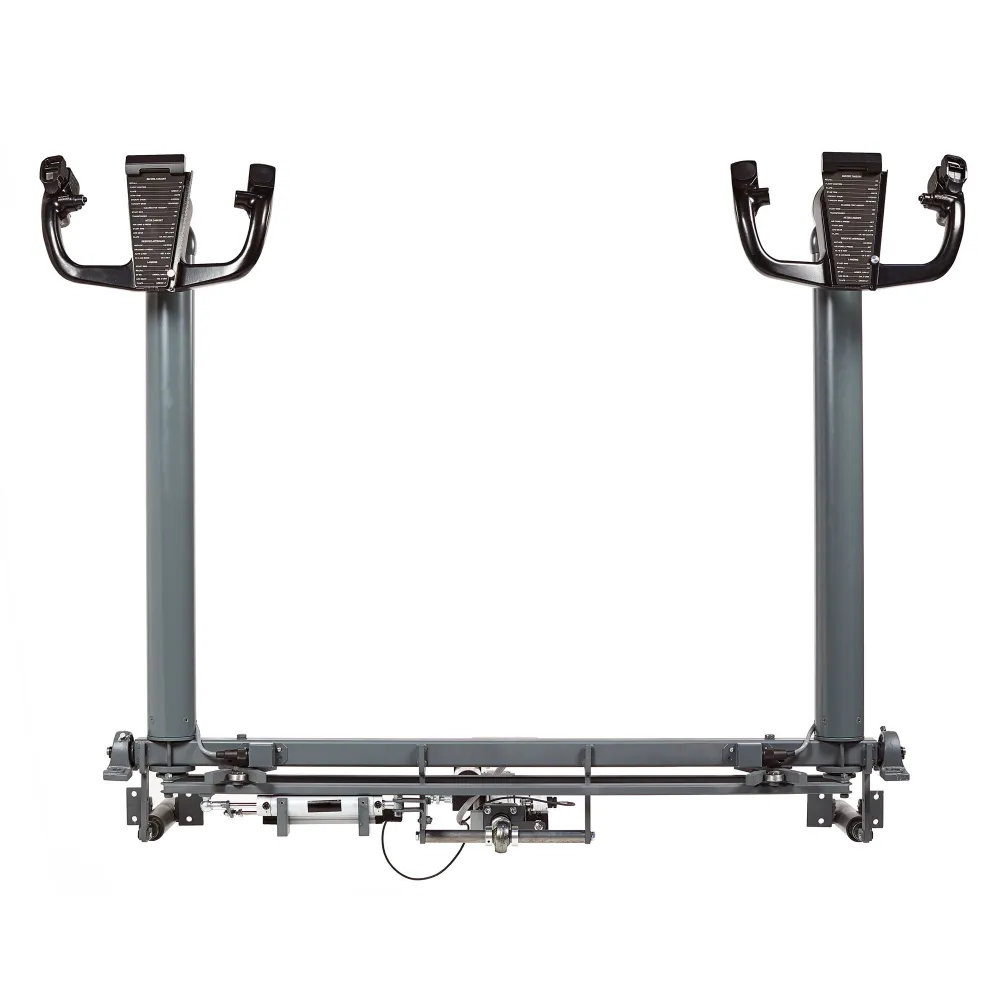

Professional dual linked Yoke - Control Column for Boeing 737 style Flight Simulators.
The extension of the yoke wheel reflects the actual inclination angle
Included in the product
Preload and damping adjustment
Every single button, switch, lever and mechanism works to simulate the original
System assembled and tested in FSC laboratories with the assistance of 737 pilots
Made of aluminum using high quality electrical/electronic materials
| Bodnar Joystick card |
USB interface board designed for use with flight simulators, driving simulators, and other custom game controls. It supports up to 32 buttons. It has 8 analog inputs for potentiometers (for example, for joystick axes). Compatible with Windows without the need for additional drivers, as it uses standard HID (Human Interface Device) drivers. The board is plug-and-play, so once connected via USB, it is automatically recognized by the operating system |
|
|---|---|---|
| High quality OTTO switches |
Aviation quality buttons allow 1000000 actuations |
|
| High precision position sensors |
High precision industrial grade linear potentiometers |
|
| Joystick board included |
USB connection, Standard Joystick |
|
| Wheel axis with spiral gears |
Maximum precision, no mechanical play, maximum fluidity |
|
| Accurate center position adjustment |
Ability to accurately adjust the center position of the column as in reality (7° forward) and the forward contact limits on the lower edge of the MIP |
|
| Wheels with 7 buttons |
Stab switch UP 1 Stab switch UP 2 Stab switch DOWN 1 Stab switch DOWN 2 AP disconnect pushbutton MIC pushbutton INT pushbutton |
| 15mm Wheel axle |
15 mm axis for greater reliability, with locking device for precise alignment of both wheels |
|
|---|---|---|
| USB Connection |
All USB types are supported |
|
| 1:1 real scale |
Designed by studying the dimensions of the original components |
|
| Upgradable with control loading system |
Fully compatible with 737NG control loading yoke hardware Kit (SKU: 390457) |
Comes with two yoke control wheels, chart holders and linkage mechanism.
The Chart Holder is included in 737 Yoke Control Wheel.
Real bank angle as the original.
Equipped with high quality hydraulic dampers with double side regulation.
The yoke wheel is created through aluminum casting.
USB interface board designed for use with flight simulators.
With high precision linear potentiometer.
Many professional pilots assist us to test and improve our products.
With high precision linear potentiometer.
This system operate by applying a dynamic loading on the Pitch and Bank.
Thanks to the field experience gained during the past years, with intensive use by professional and amateur users, we have been able to further improve our FSC B737 Yoke, which has been completely re-engineered, with new mechanics and materials.
The Control Column is more realistic, precise and reliable.
The product includes the FSC 737NG Yoke Wheels Captain and First Officer with Chart Holders.
It is also available together with the B737 Floorstand PRO (SKU: 858236).
This version features a robust but lightweight aluminium structure, engineered to better protect the gear box and to allow an easier installation and facilitate any maintenance operation, by granting access to its mechanisms from above the floor stand - base level, avoiding the need of lifting the whole structure.
To achieve an even higher realism, the bank angle has been widened in order to match the original one. Furthermore, all gears and potentiometers have been completely replaced with the latest high-end components.
The new developments reduced the slack on the steering wheel and further improved the accuracy of the whole system and the passive feedback settings.
A USB connection can serve various purposes: in fact, USB is the acronym for "Universal Serial Bus."
Some of these connections are used to create virtual COM ports to allow serial communication.
The disadvantage of this solution is related to the fact that there are two connections on the PC: one to the peripheral and one to the operating system.
In fact, in Device Manager, you can see both the USB device and its corresponding COM port.
If software is using the COM port and the USB connection is lost, communication is interrupted, but the software continues to occupy the port.
When communication resumes, because the original port is still occupied, the driver will assign a new port with a different number, effectively preventing reconnection.
A solution could be a LAN TCP/IP connection.
Not all of our peripherals have dual ports (USB and LAN), but where they are solely USB, it is a design choice to simplify circuitry or for reasons strictly related to speed (such as the Control Loading system).
For HID peripherals (joysticks), these problems do not occur because the peripheral is always recognized even if it was previously disconnected.
