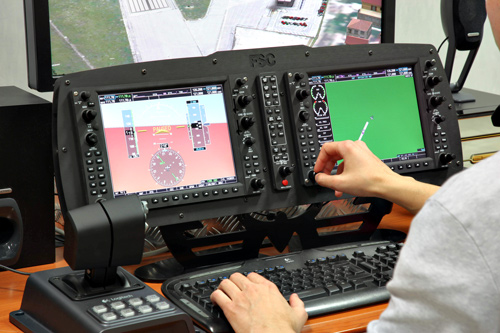

REALISTIC SIMULATION WITH FULL SCALE INSTRUMENTS AND CONTROLS
During the flight a pilot needs to have everything under control, and to be able to do so, he has to operate in a natural way, in a familiar environment.
The FSC1000 is designed as a so-called HID Device, so you do not need any low level driver
software.
Connecting the FSC1000 to your PC is easy: use the USB interface and the standard VGA or DVI-I Dual Link interface (Digital & Analog) to connect the 800x600 LCD/TFT screens to your PC and you are ready to fly.
Once you have trained with FSC1000 Glass Cockpit, you'll feel at home only in a real plane cockpit.
PROJECT MAGENTA GLASS COCKPIT SOFTWARE POWERED

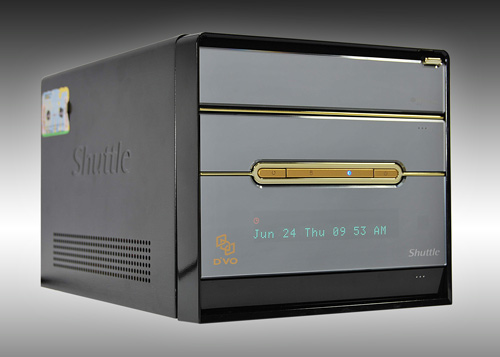

DEDICATED PROJECT MAGENTA SHUTTLE COMPUTER INCLUDED

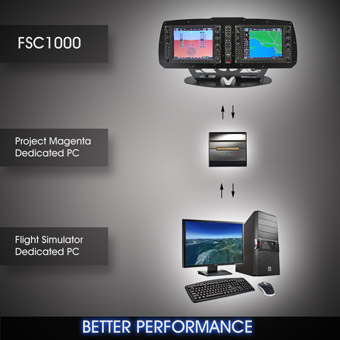

To boost the performance of your Flight Simulator the FSC1000 is connected to an external PC and via LAN to the main simulation PC so the latter will be free to perform simulation tasks more efficiently, in the classical ProjectMagenta style.

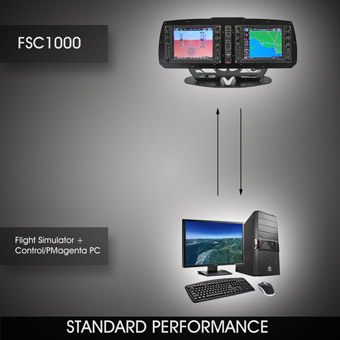

CONFIGURATION WITHOUT/WITH PROJECT MAGENTA GENERAL AVIATION GLASS COCKPIT SOFTWARE
The Shuttle Dedicated Computer ships to you ready to fly, with pre-installed and configured Project Magenta Glass Cockpit Software (Home License), allowing the main PC to free important resources for graphics and simulation tasks.

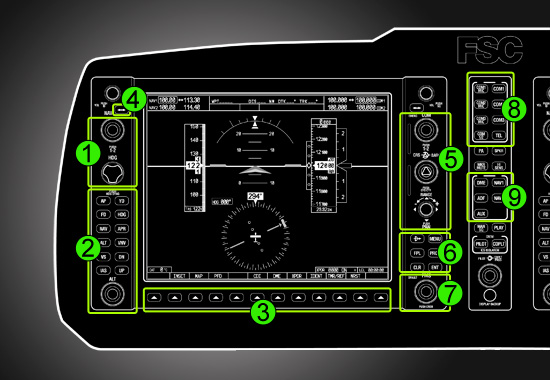

CONTROLS
-
NAV: NAV frequency selector
HDG: heading selector
-
AP: autopilot
FD : flight director
HDG: autopilot heading selector
NAV: course VOR selector
APR: ILS approach mode switch
ALT: autopilot altitude mode switch
VS: vertical speed
DN: down
UP: up
IAS: autopilot speed (autothrottle)
ALT: altitude selector
-
Function keys
-
Switch standby frequency
-
COM: COM frequency selector
CRS BARO: NAV heading & barometer selector
RANGE: map zoom selector
-
Navigation system function keys
-
Function pages and nav system selector
-
Auto radio com selection keys
-
NAV audio selection keys
TECHNICAL DETAILS
