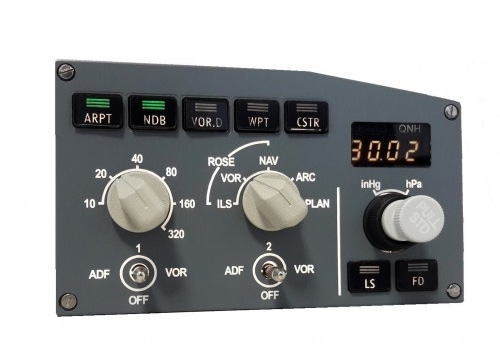

A320 EFIS First Officer

EFIS selector First Officer side for A320 flight simulators. Internal and external adjustable backlight. USB interface.

MAIN FEATURES:

Warm white backlit frontplate
Backlit push-buttons
Push-buttons white color backlit captions
Push-buttons green color active status LEDs
Mechanical encoders with PUSH/PULL function, 20 increments for each rotation (with detents)
Aluminum, powder-coated Knobs, with symbols
Internal and external display brightness adjustment
Display: custom-made backlit LCD
Display color: Warm white
16 bit Flash microcontroller
DIN 5 pole socket for interfacing plug&play CPflight modules

Buy New

in Stock 2

A320-EFI320R

SKU: 200549

€ 399,00

(22% VAT EXCLUDED)

Request info arrows down

Request info

Name and Surname * : City * : Country * : E-Mail * : Telephone : Message * : Send

the field with * are required

Documents and Technical files

English manual 1019 Kb
CP FLIGHT A320 FCU E EFIS DIMENSIONI
English manual 706 Kb
CP FLIGHT A320 FCU USER MANUAL ENG

A320 EFIS First Officer side

CPflight EFIS320R is a full scale replica of AIRBUS FLIGHT CONTROL UNIT.

The module is complete and ready to use and interface with Microsoft Flight Simulator.

The unit works with the FSX Airbus A320 aircraft using the CPflight driver FS_COM.

It is also compatible with Project Magenta, AST software and FeelThere Airbus series.

EFIS320R is connected to the FCU320 through DIN connection .

USB driver can be free downloaded at CPflight website www.cpflight.com.

FCU320 can be interfaced with Microsoft Simulator (FSX), Project Magenta FCU, AST software and FeelThere Airbus series (payware driver).

The hardware establishes an interface with FSX, PM, AST and FeelThere Airbus software; logics, operating modes and aircraft behavior are managed by the PC software.

EFIS320R does not require further driver installations or software configurations and does not take USB ports on the pc. Behind the panel the thickness of our EFIS320 R is besides of 27 mm
