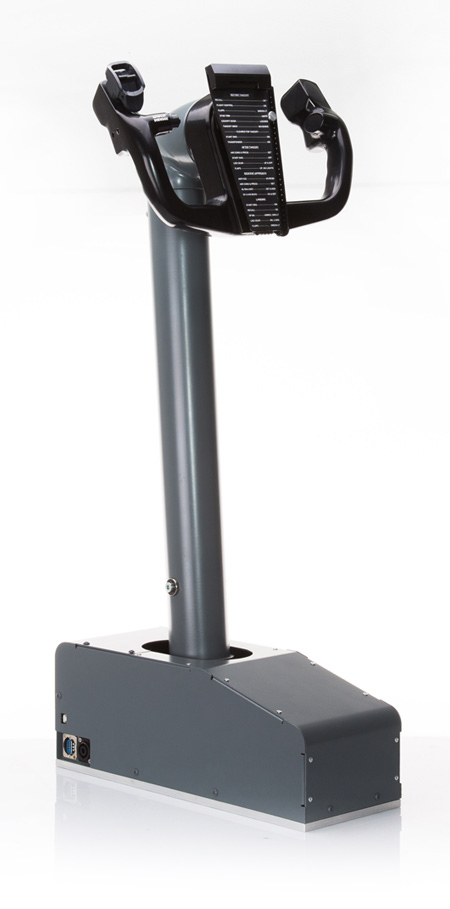

B737 Single Yoke / Control Column with Control Loading


Professional Single Yoke - Control Column for Boeing 737 style Flight Simulators, Control Wheel with +/- 90° movement, active control loading on both axes.

MAIN FEATURES:

  • Loading System with Force and Vibration Feedback.
  • Compatible with Project magenta
  • Compatible with Prosim 737
  • Compatible with Sim-Avionics
  • Compatible with PMDG 737NGX and NGXu
  • Compatible with FSX , P3D v3, P3D v4, P3D v5, Xplane 9, Xplane 10, Xplane 11
  • Active controls, with 2 axis: Roll, Pitch (Active Force and Vibration feedback)
  • Sturdy, heavy duty construction
  • Aluminium base, stainless steel Yoke Axis, with full metal gears

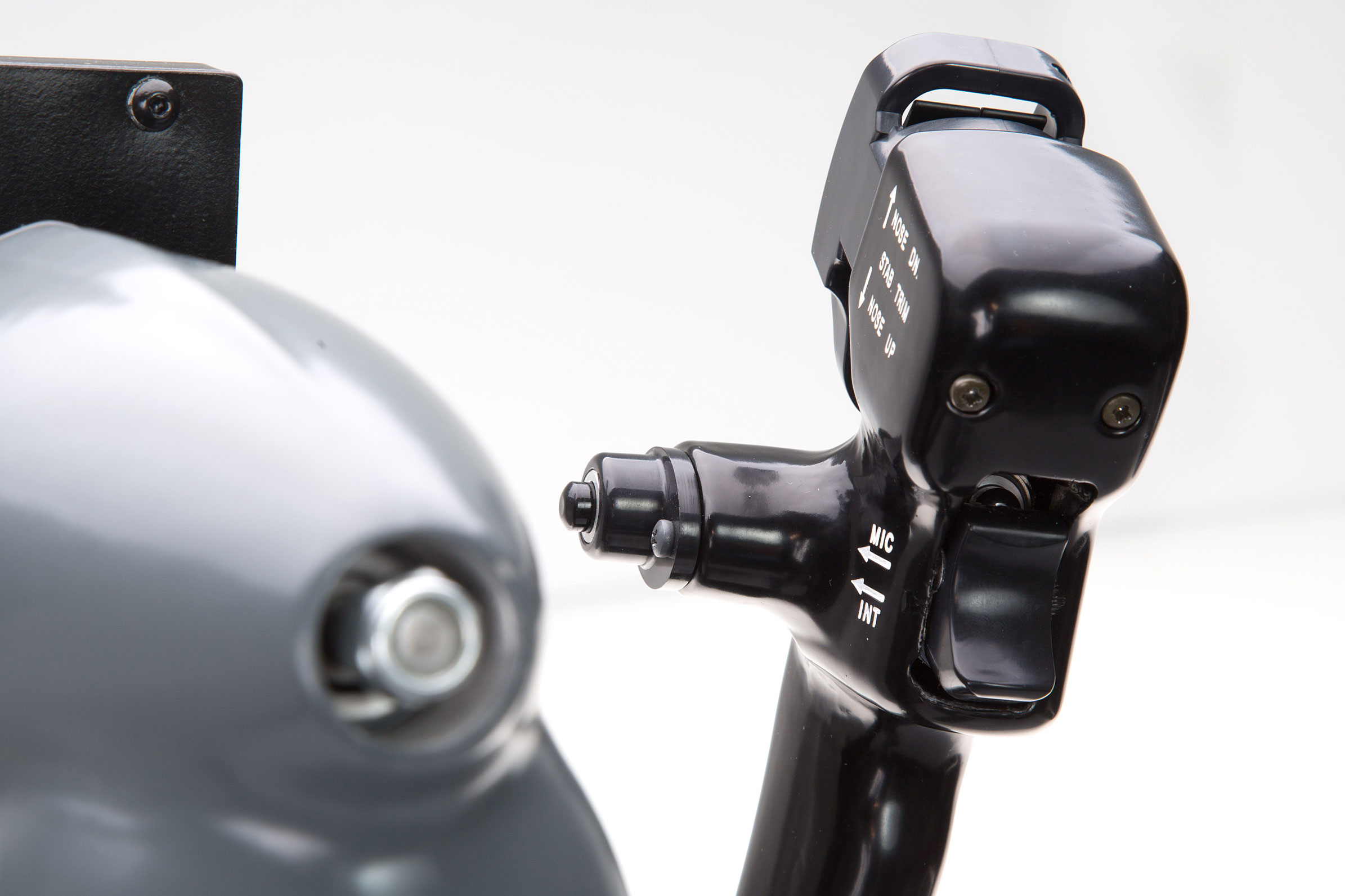

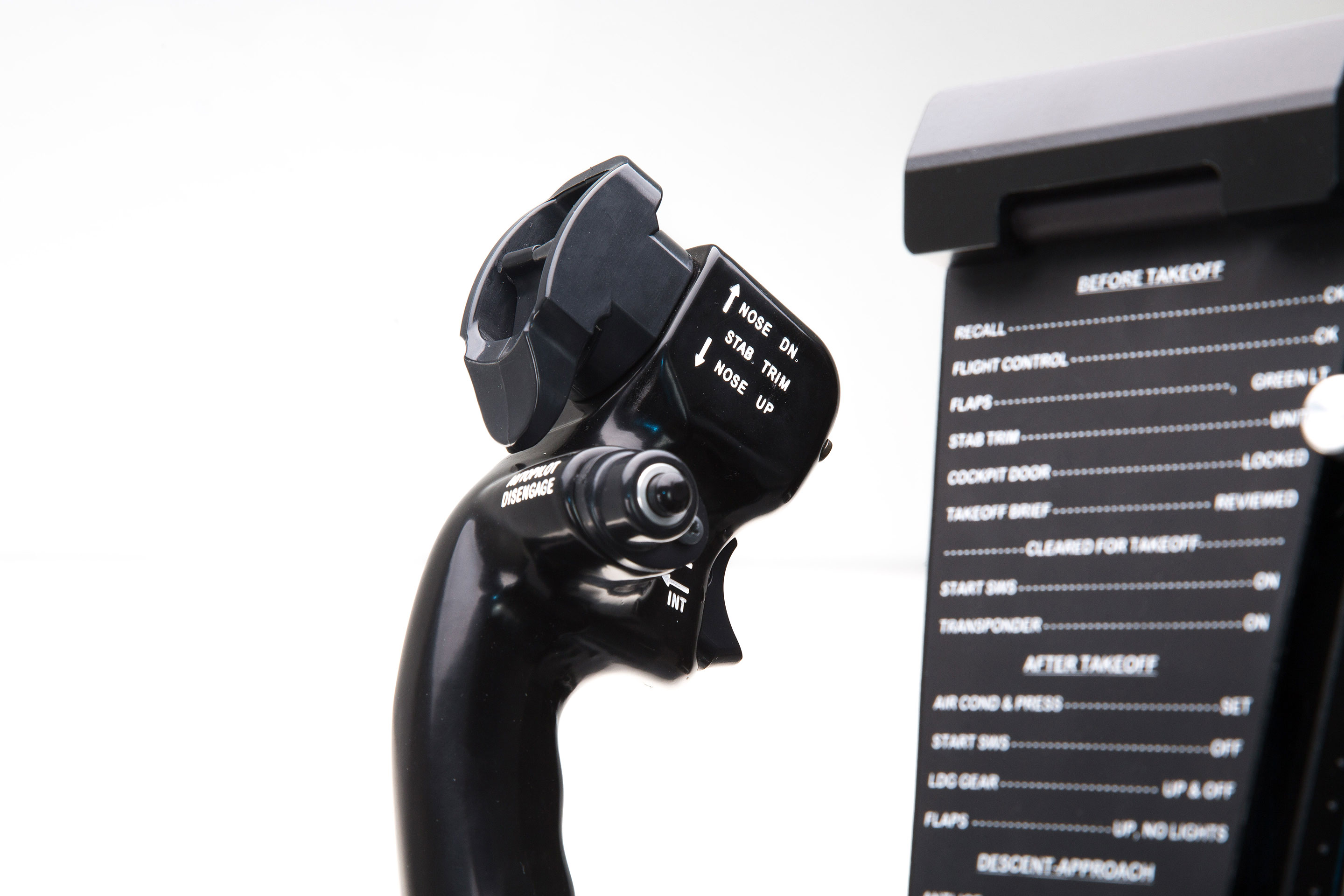

  • Double acting trim switches as the original one
  • Heavy Duty OTTO switches (1000000 actuations)
  • Powder Coated
  • Engineered and manufactured by FSC
  • Chart holder (SKU 219911) included
  • Active control loading with brushless motors, with 2 axis: Roll, Pitch (Rudder channel can be integrated in pedals and sold separately)
  • Variable force feedback according to different flight situations
  • Effects: Elevator and aileron lift Gain, Alpha Gain, Elevator Loading from Aircraft pitch rate, Control surface weight effect, Mass Gain and Gforce effect Gain,
  • Vibration effects: Stall Buffett, Gain and Frequency, Runway vibration
  • Real-time synchronization logic for dual-pilot cockpit with automatic pilot/co-pilot take-over (MCC) (2 sets are needed)
  • Auto-Pilot Position Following
  • Connections: one USB interface , Power AC 110-240V
Email me when available

Sold out

737NG-YOKE-SINGLE-ACTIVE-STNA

SKU: 160263

€ 7.500,00

(22% VAT EXCLUDED)

Request info

Manuals and technical manualsDocuments and Technical filesarrows

Please enter your email address, we will send you a download link for the requested document.


Your email address will not be recorded in any archive, so you must provide it whenever a document is required.

CLICK TO VIEW AND DOWNLOAD
CLICK TO VIEW AND DOWNLOAD
B737 Single Yoke / Control Column with Control Loading

We are proud to introduce the new B737NG SINGLE YOKE PRO with control loading.
Designed for advanced cockpit builders who need a reliable and ultimate solution, the new YOKE is engineered to deliver a realistic flight simulation experience.
The new control loading system designed by FSC allows the user to experience a high level of accuracy and feedback in a compact, above platform/FLOOR design.


The new control column comes with our B737 Yoke Control Wheel SKU 194713 >>
The same component is mounted on the new version of the 737NG Yoke Dual Linked SKU 219914 >> , complete with B737 Yoke Wheel Chart Holder - Clipboard SKU 219911>> and B737 Yoke Trim Switch SKU 116897 >> and OTTO brand switches.

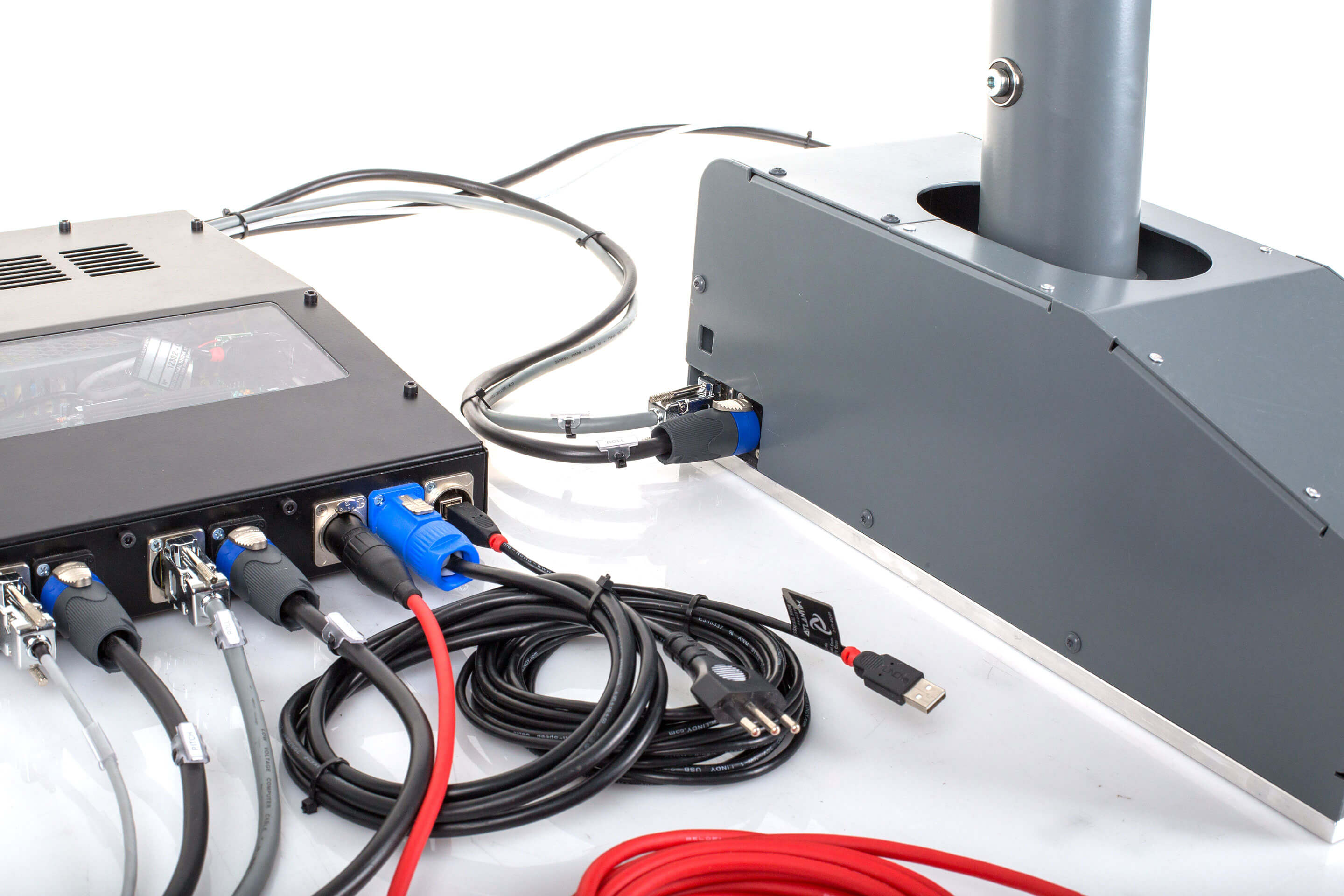

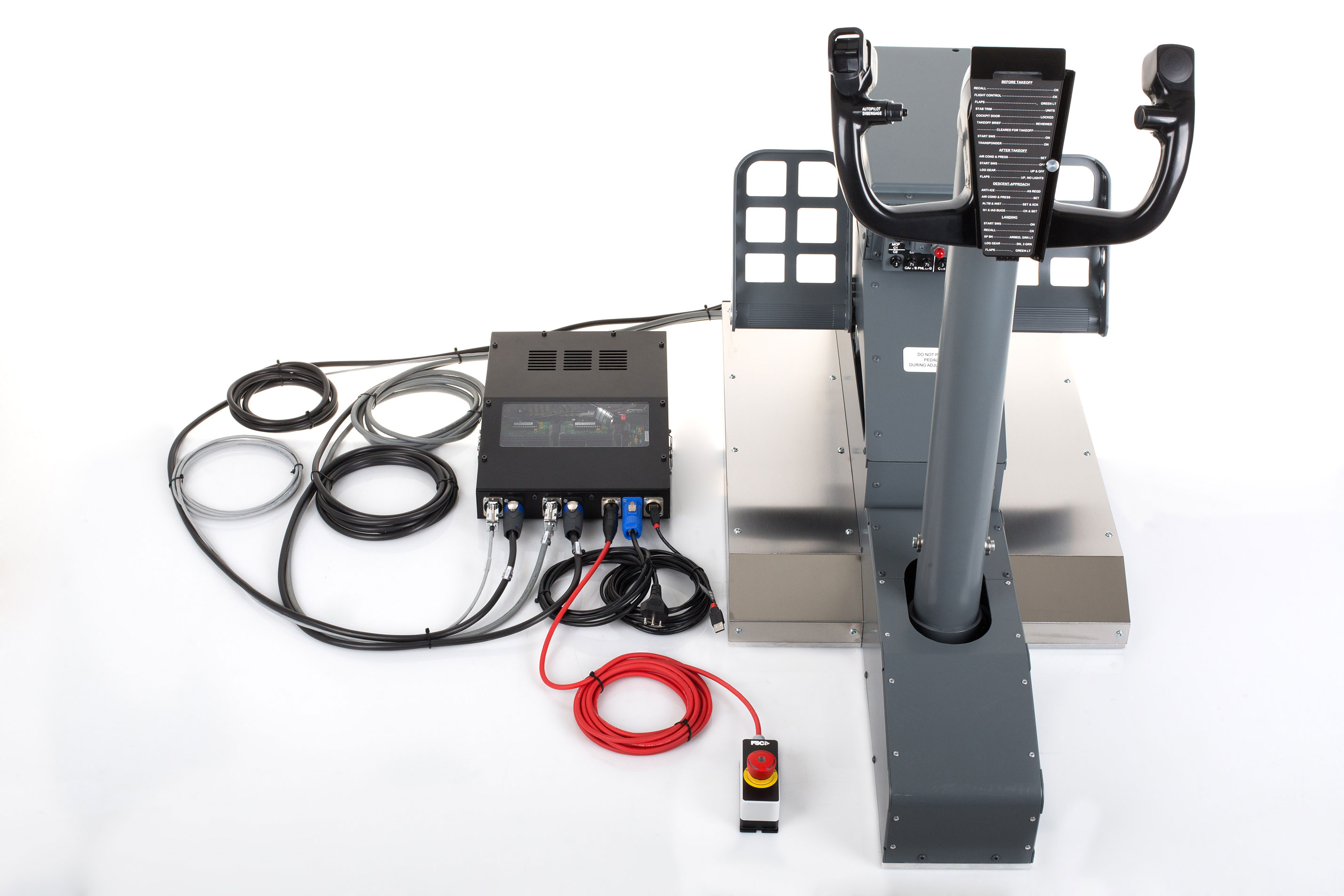

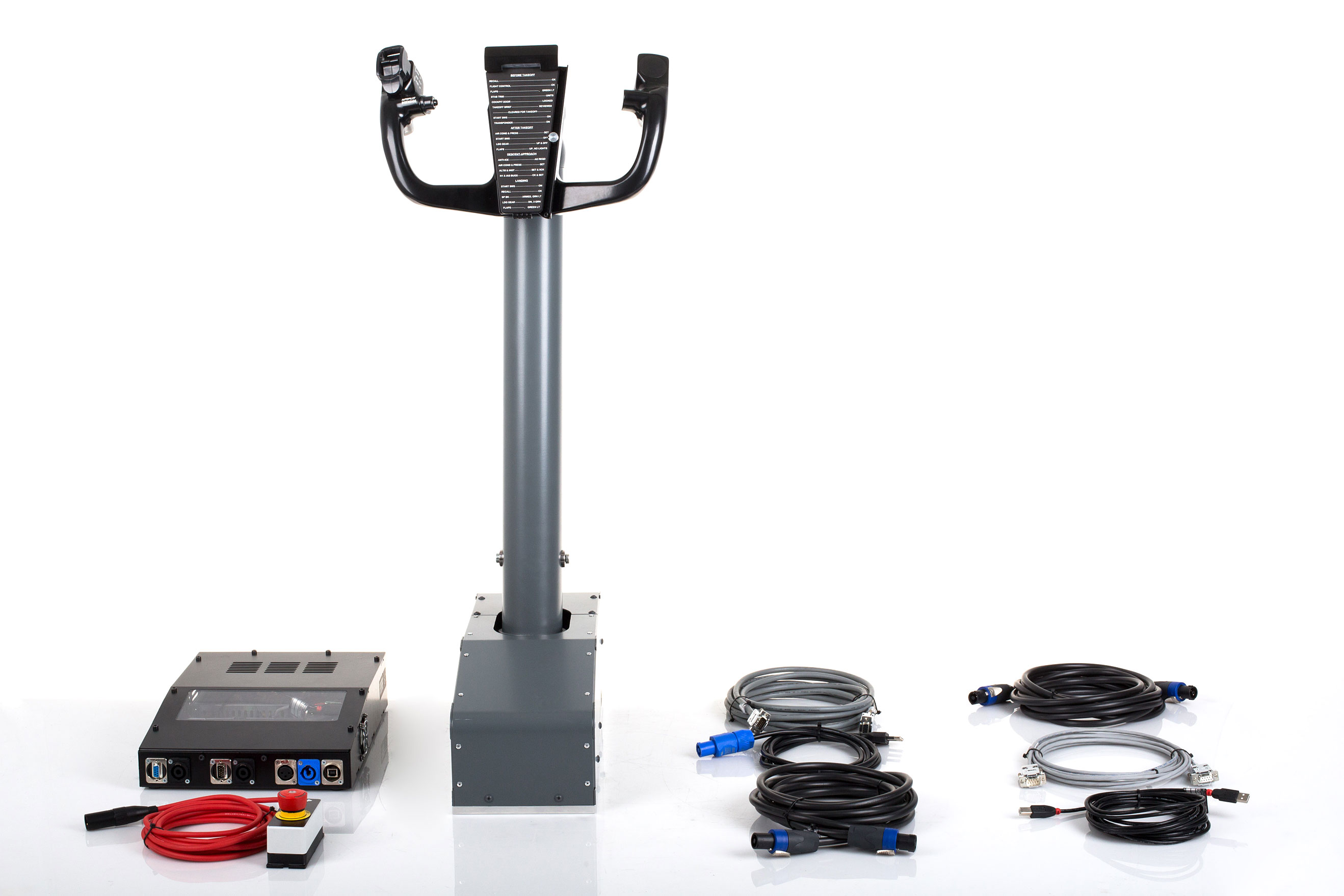

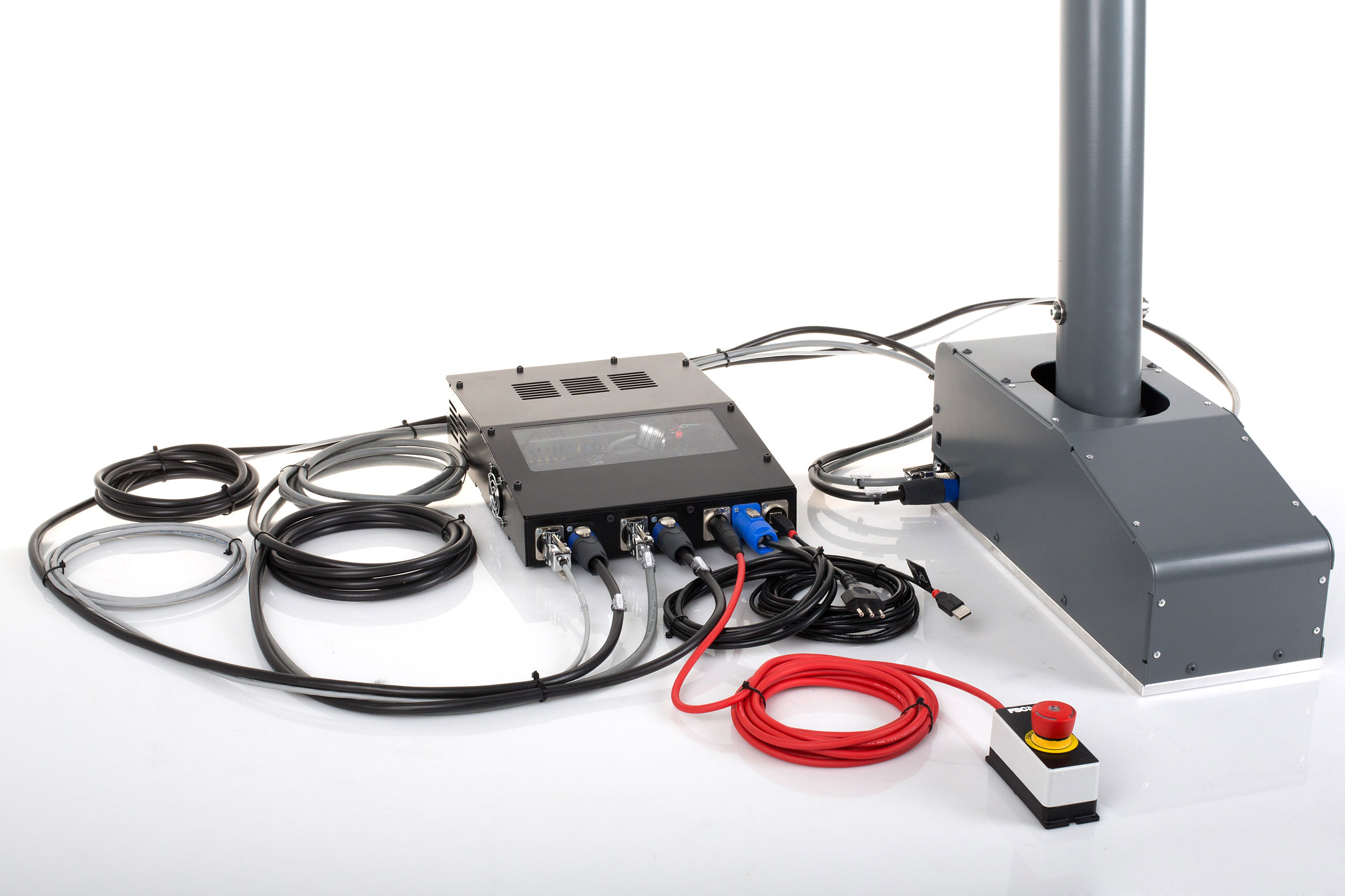

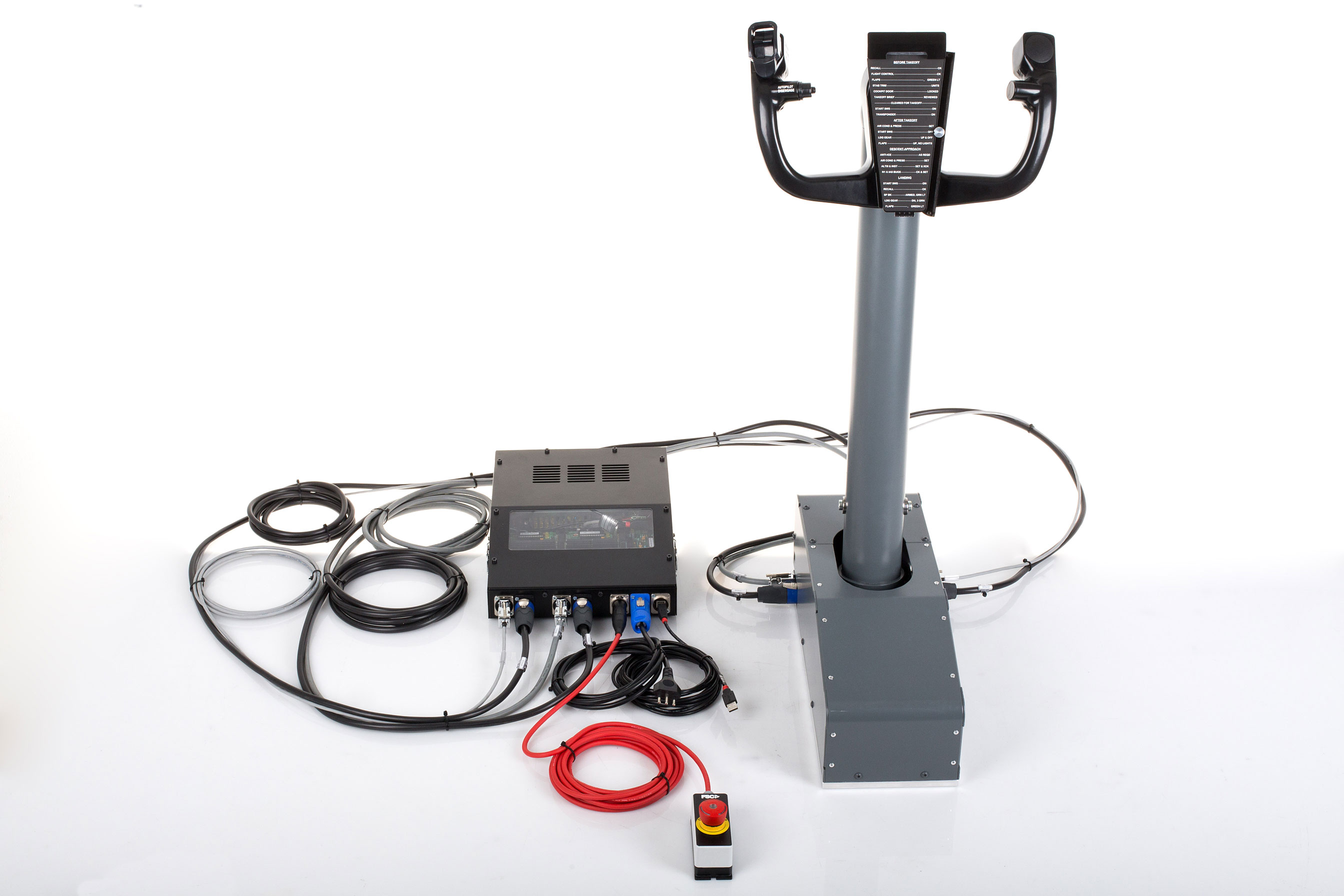

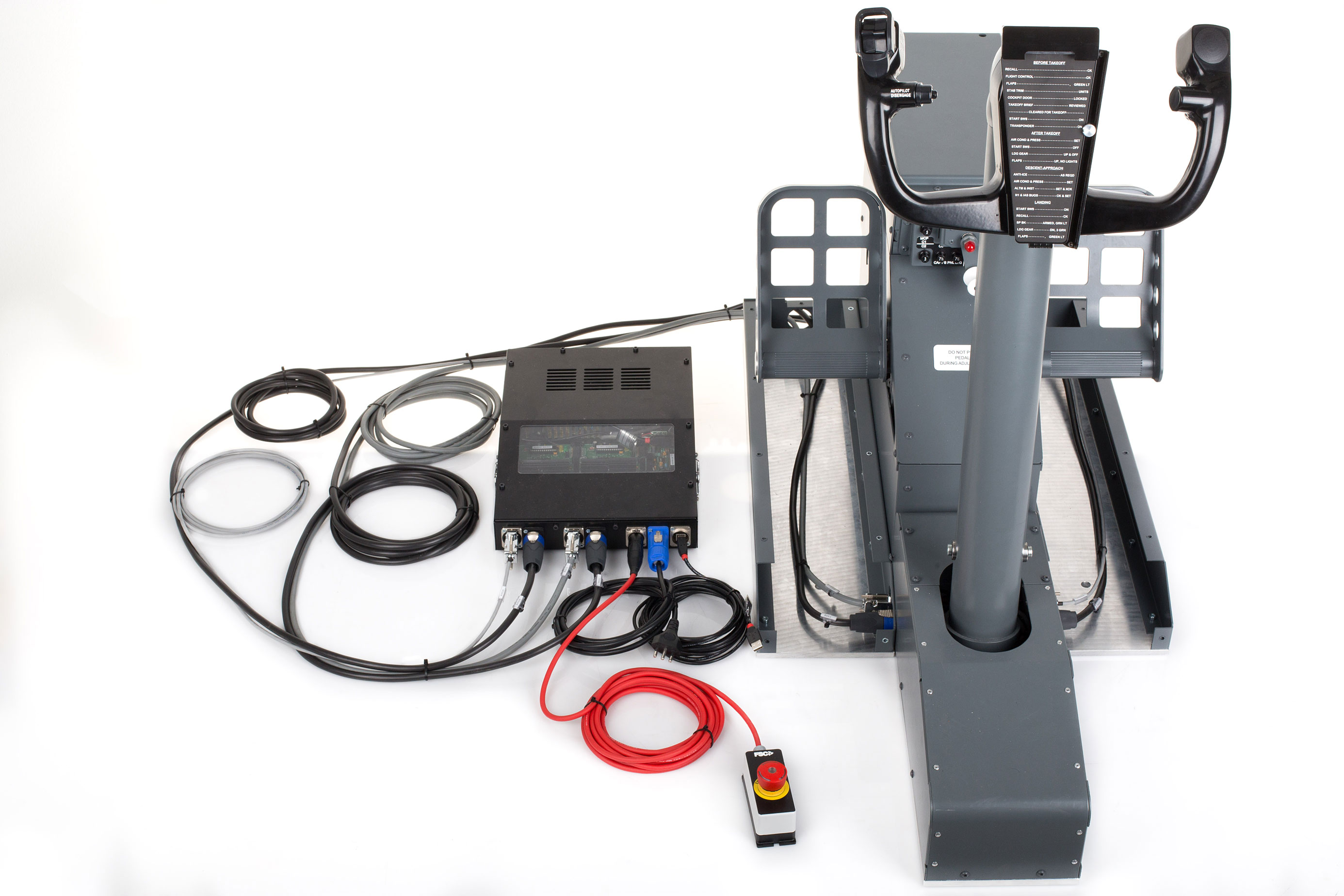

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-CABLING The new FSC B737 standalone Control column / Yoke complete kit connections

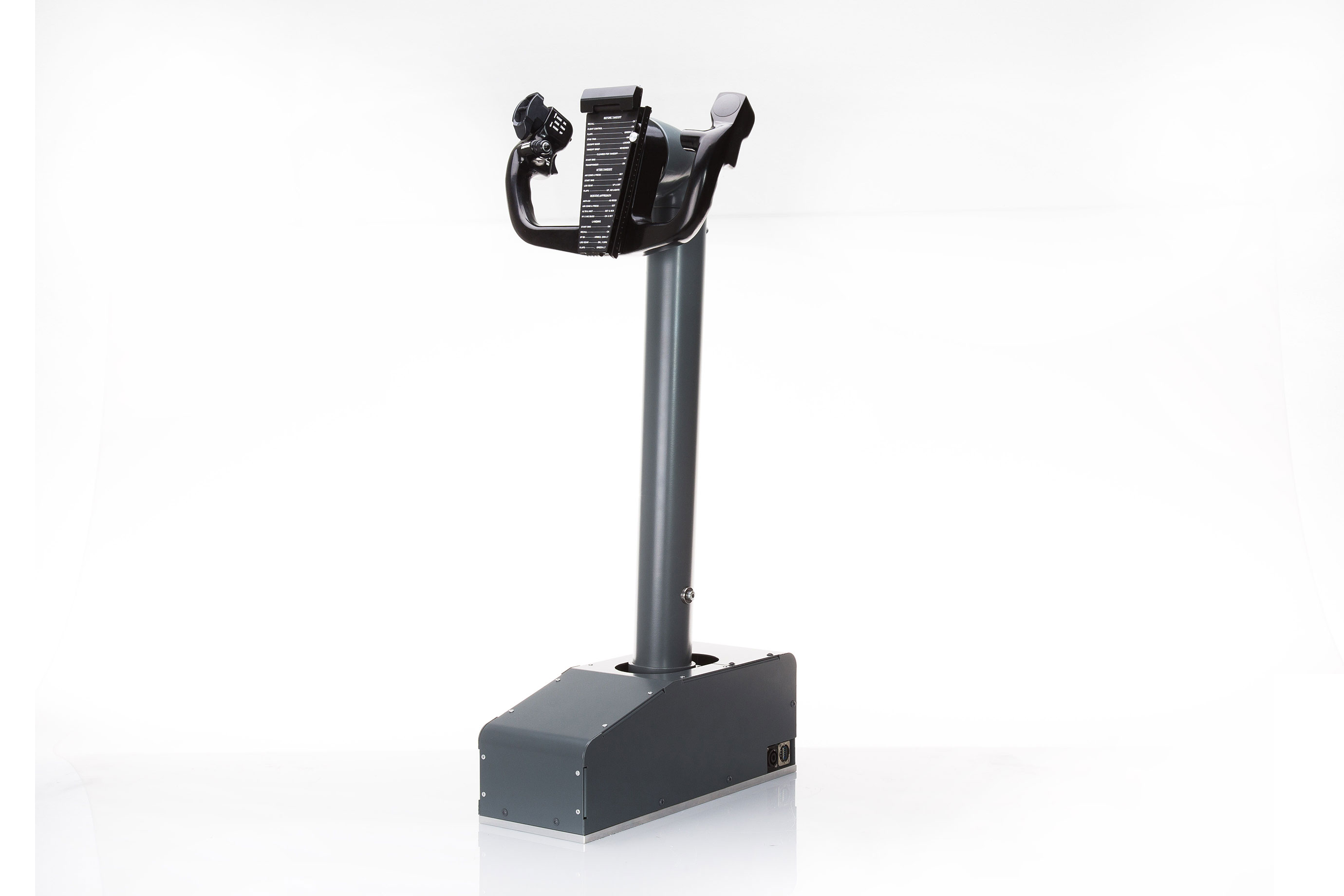

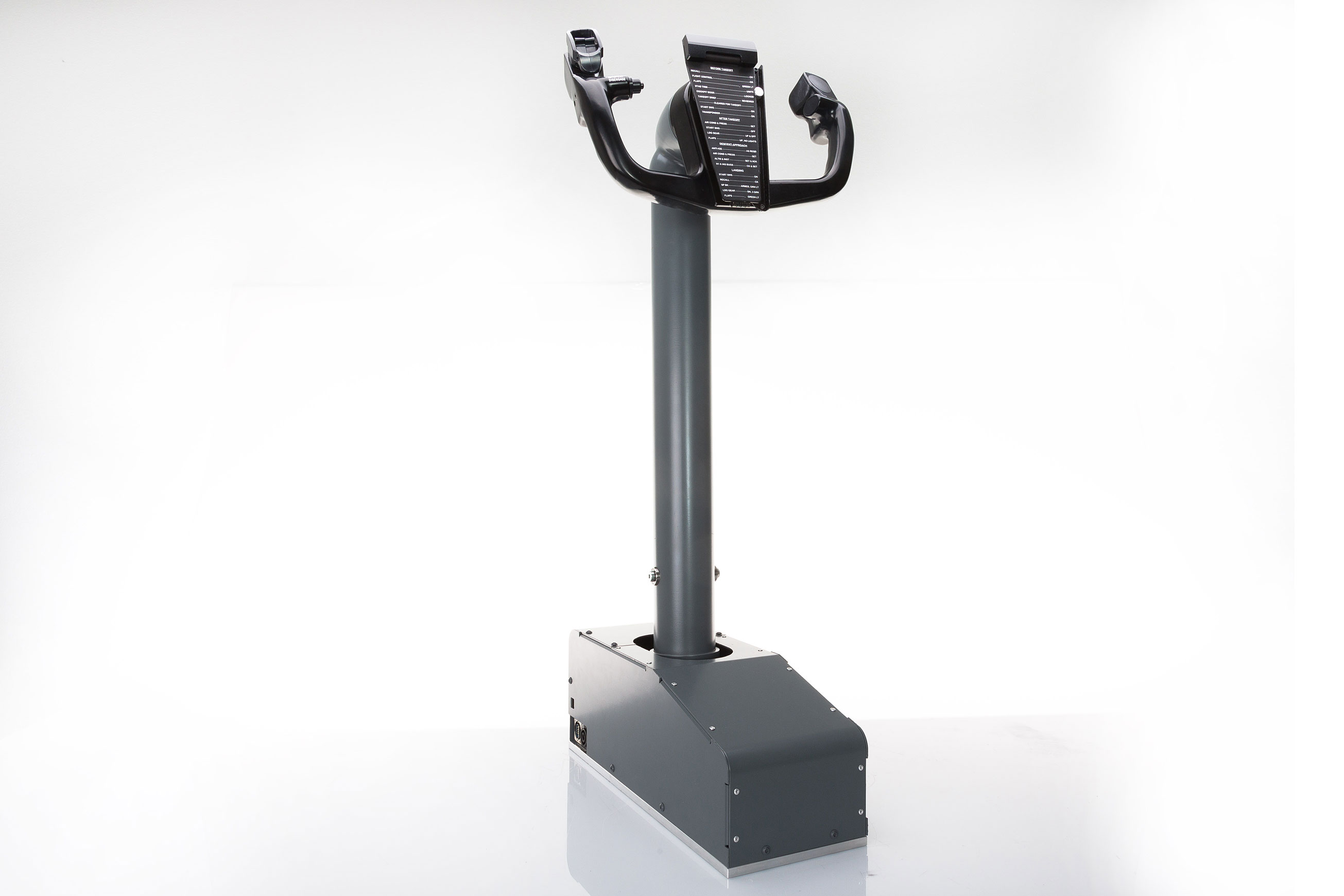

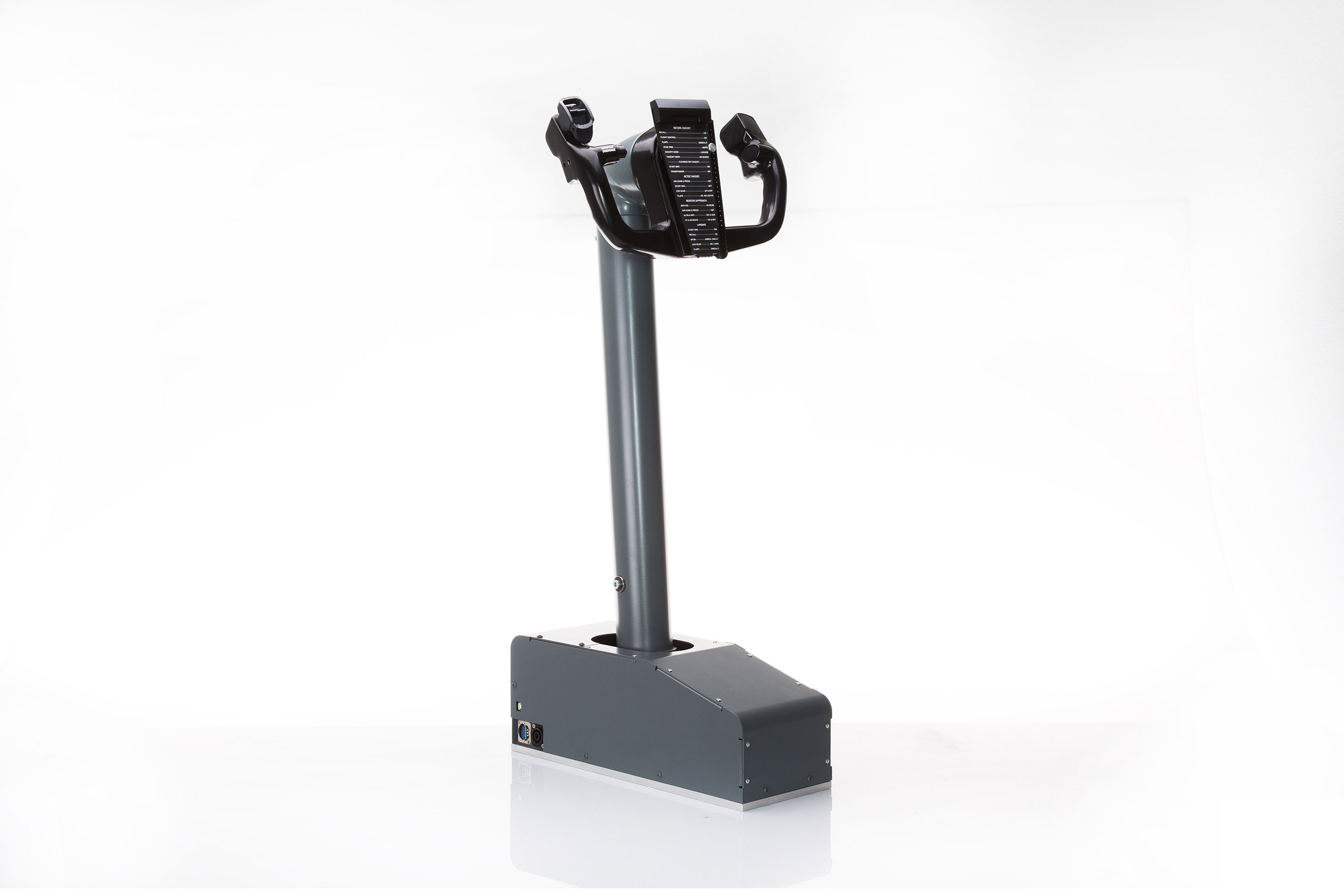

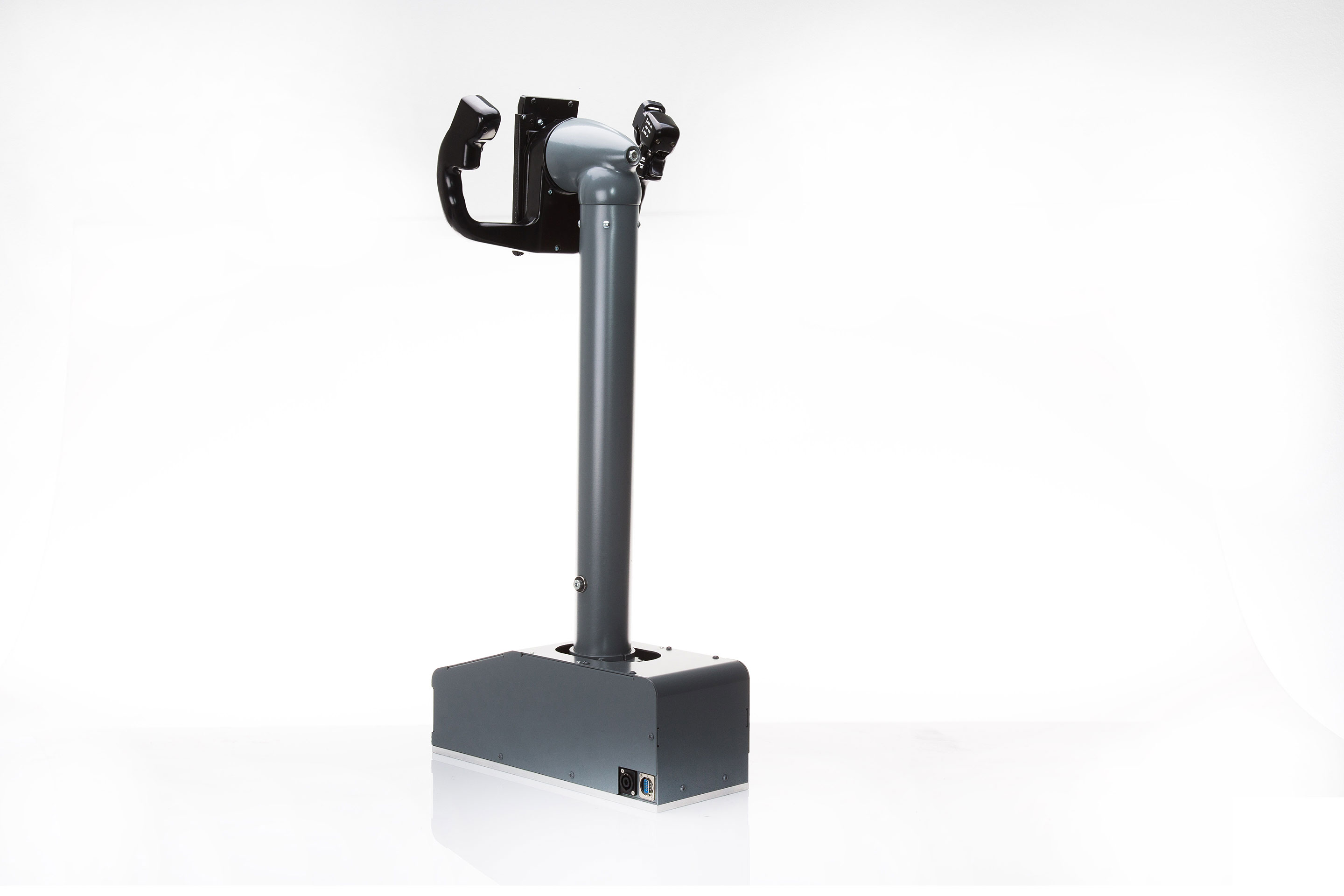

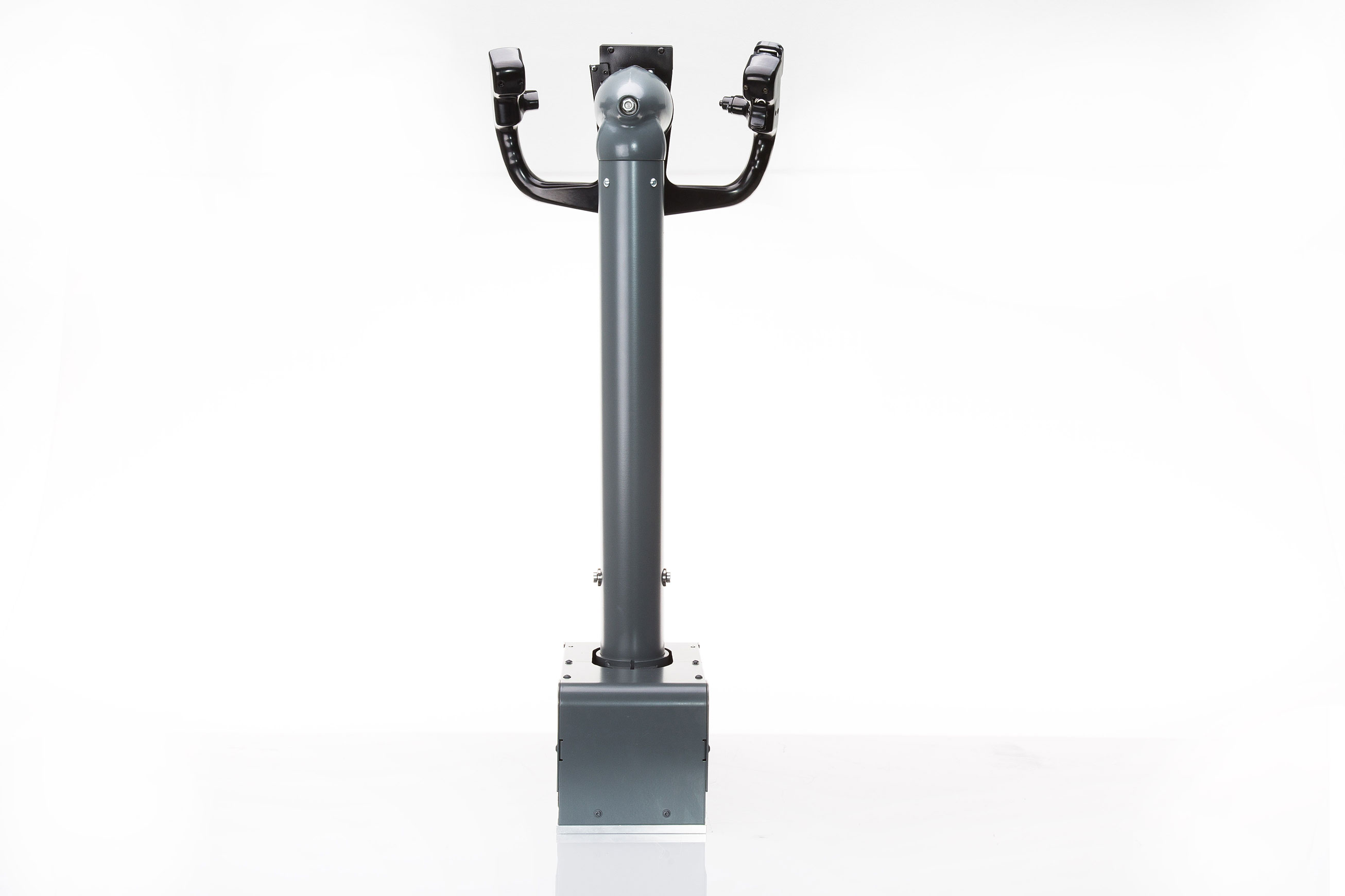

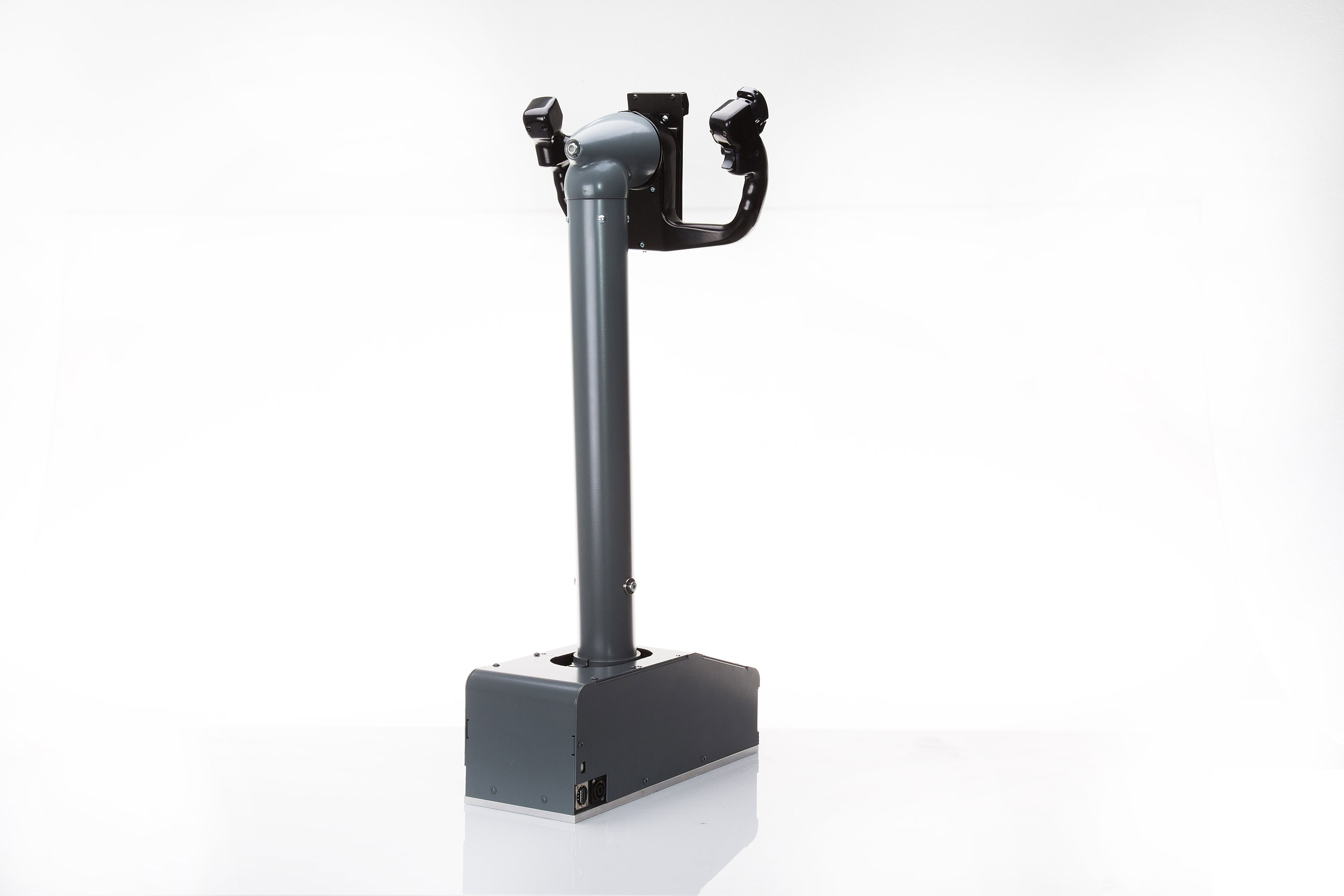

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-REAR-34 Rear view

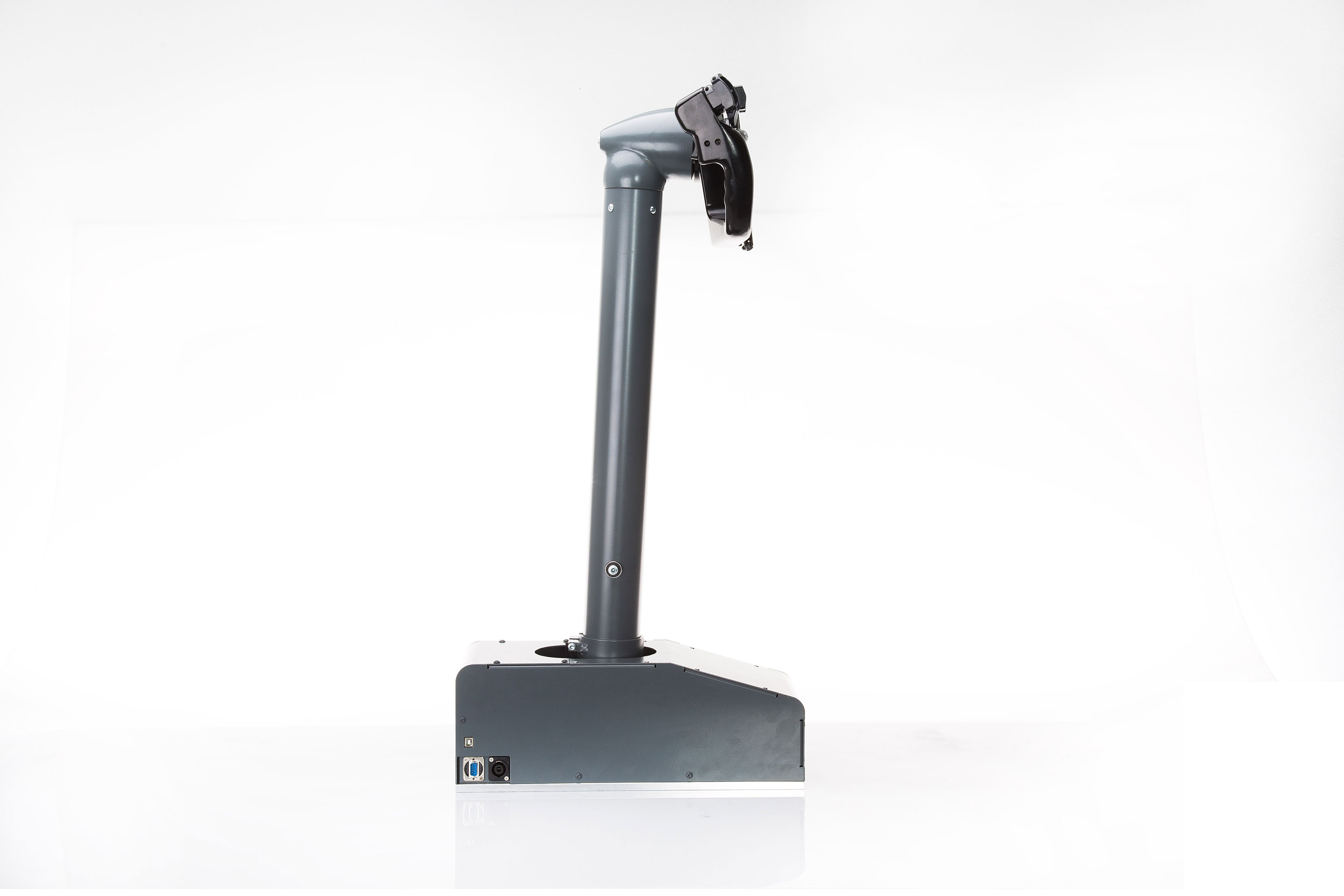

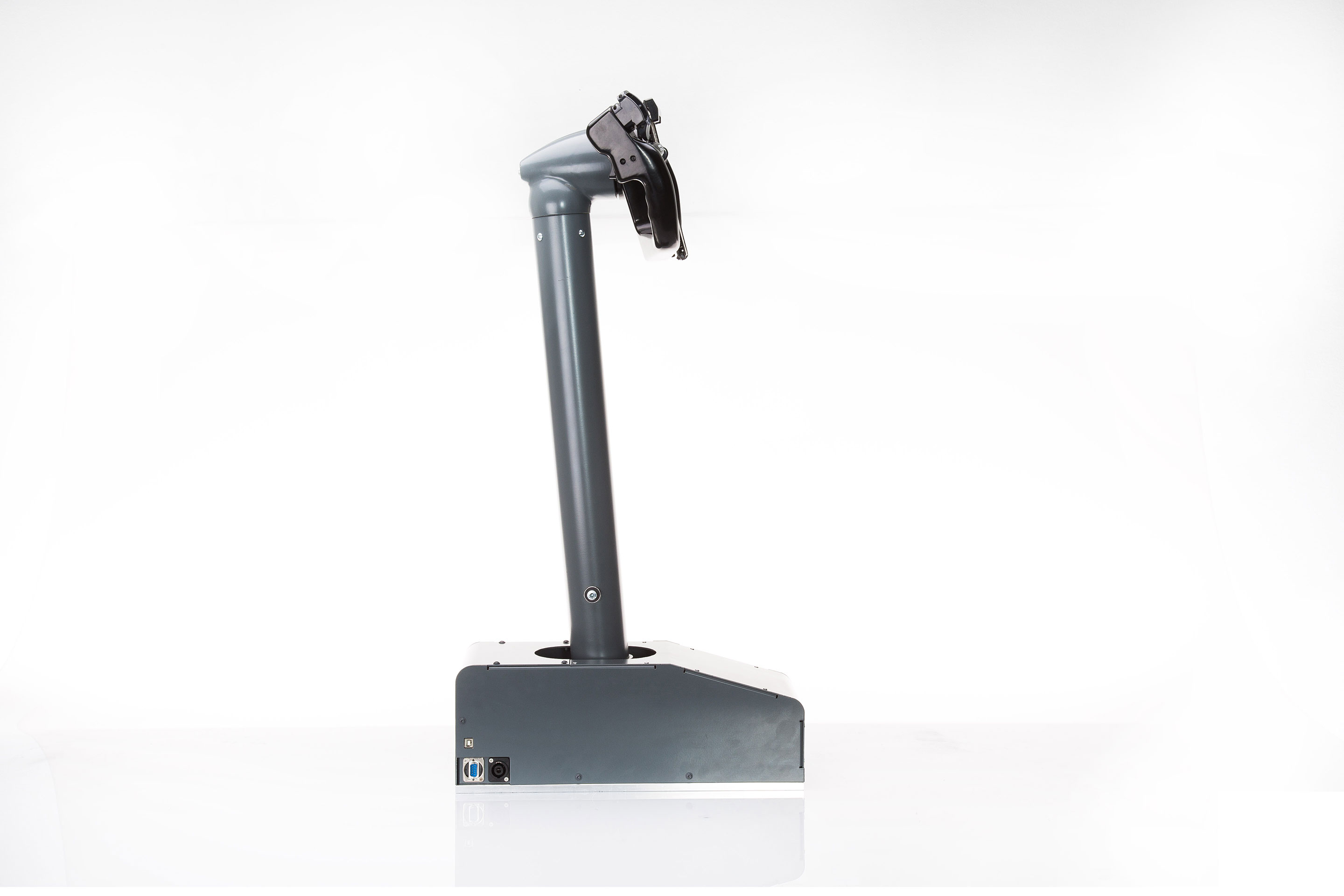

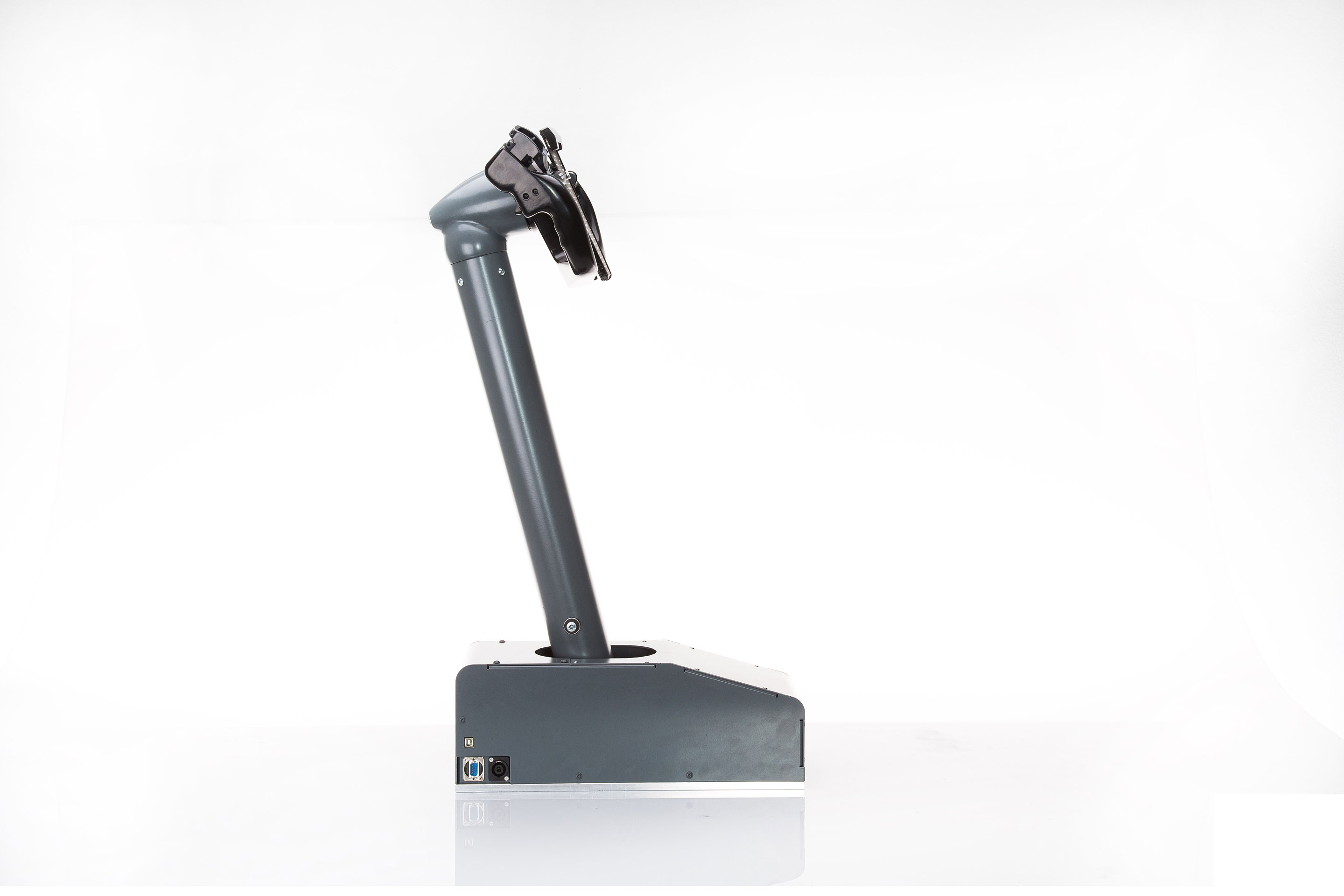

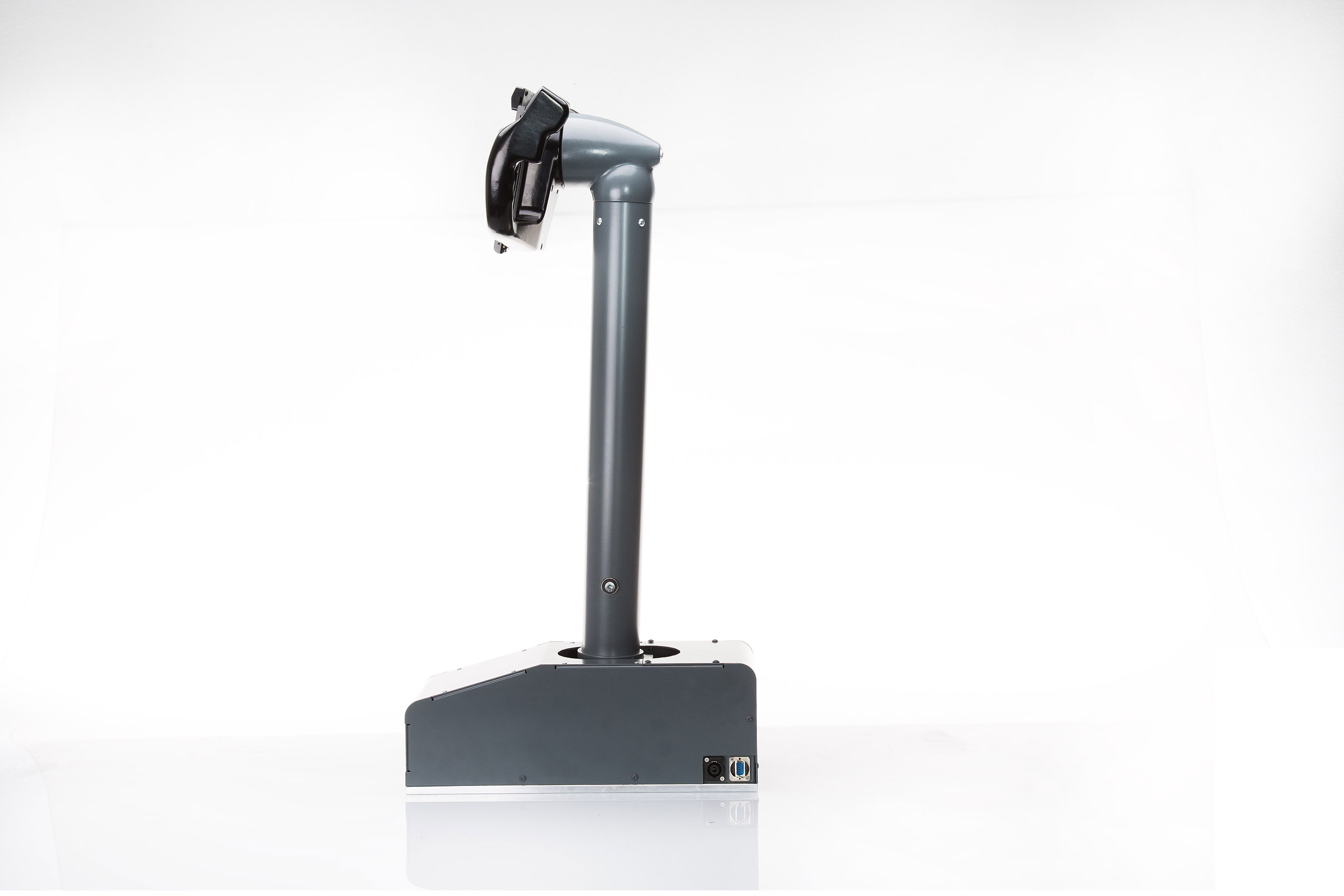

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-SIDE Side view

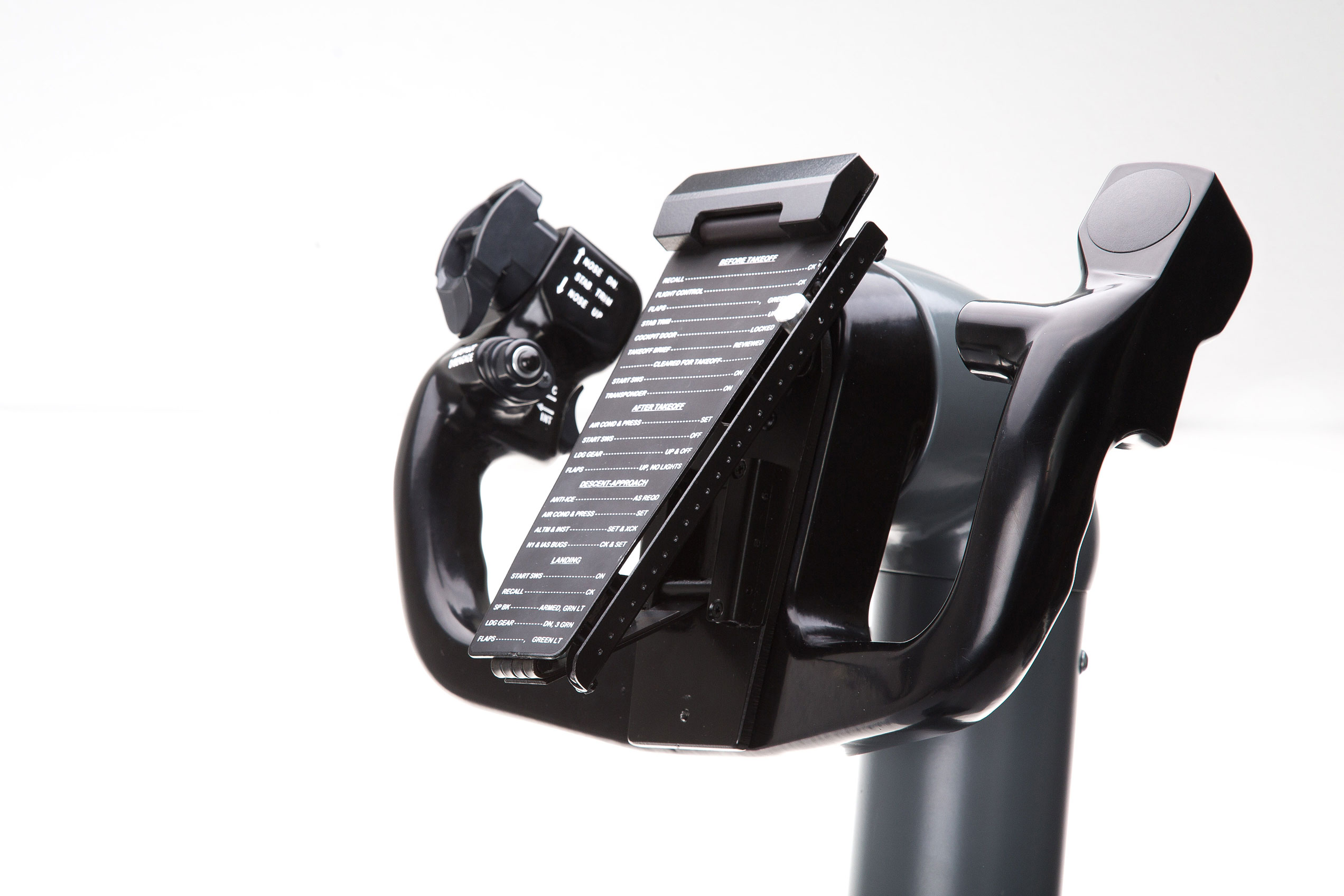

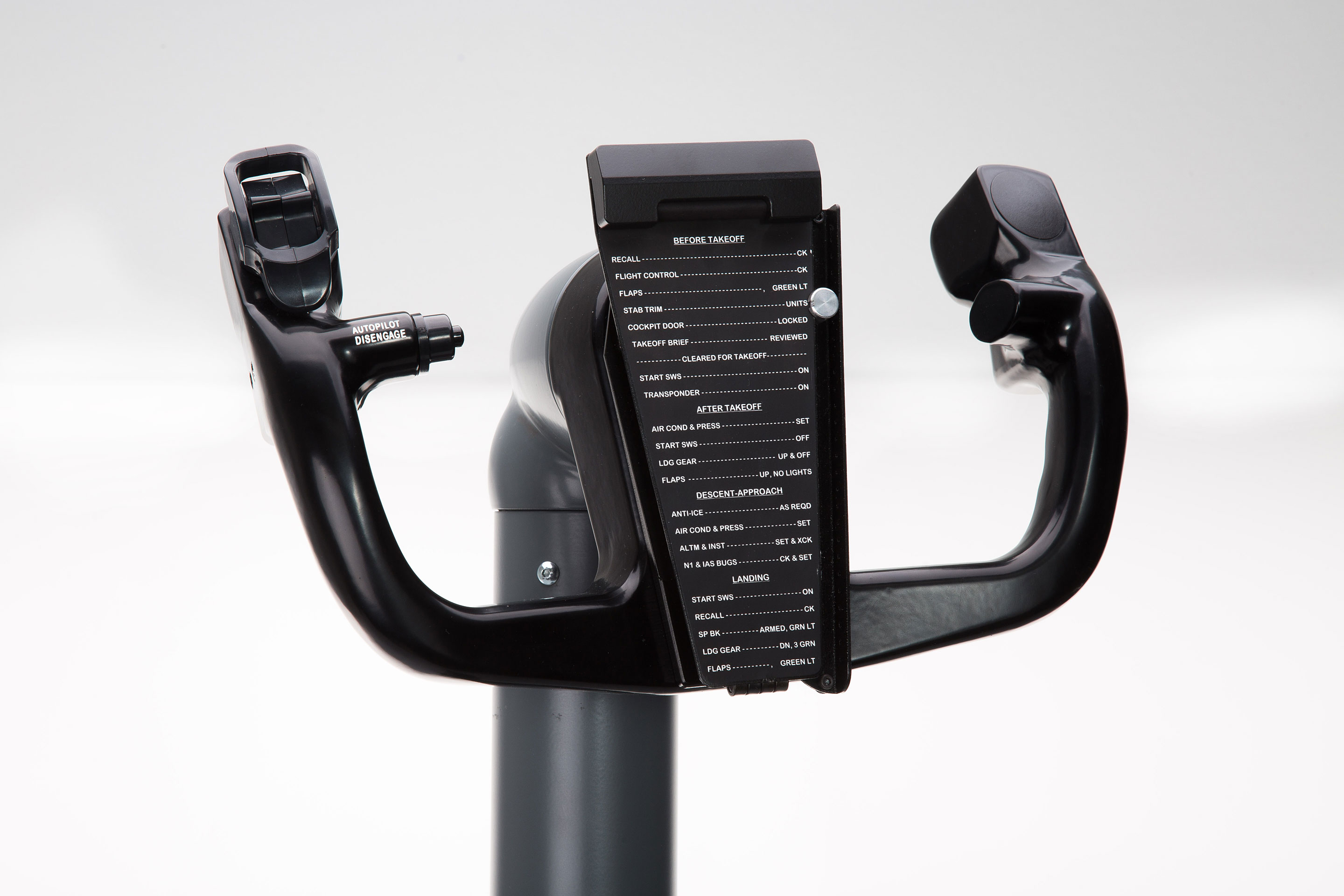

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-WHEEL-CHARTHOLDER-DN FSC Chartholder / Clipboard Down position
FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-WHEEL-CHARTHOLDER-UP FSC Chartholder / Clipboard up position

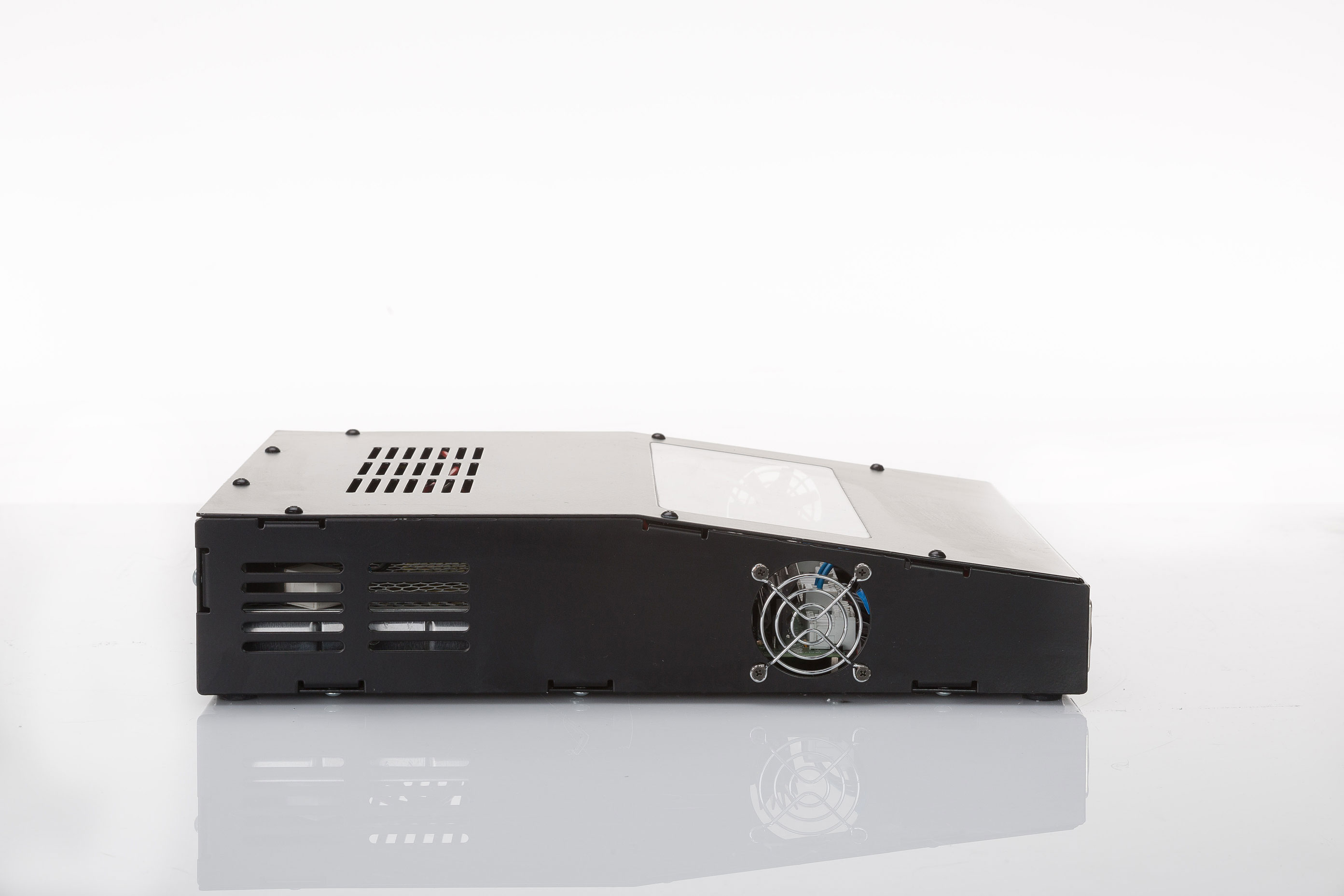

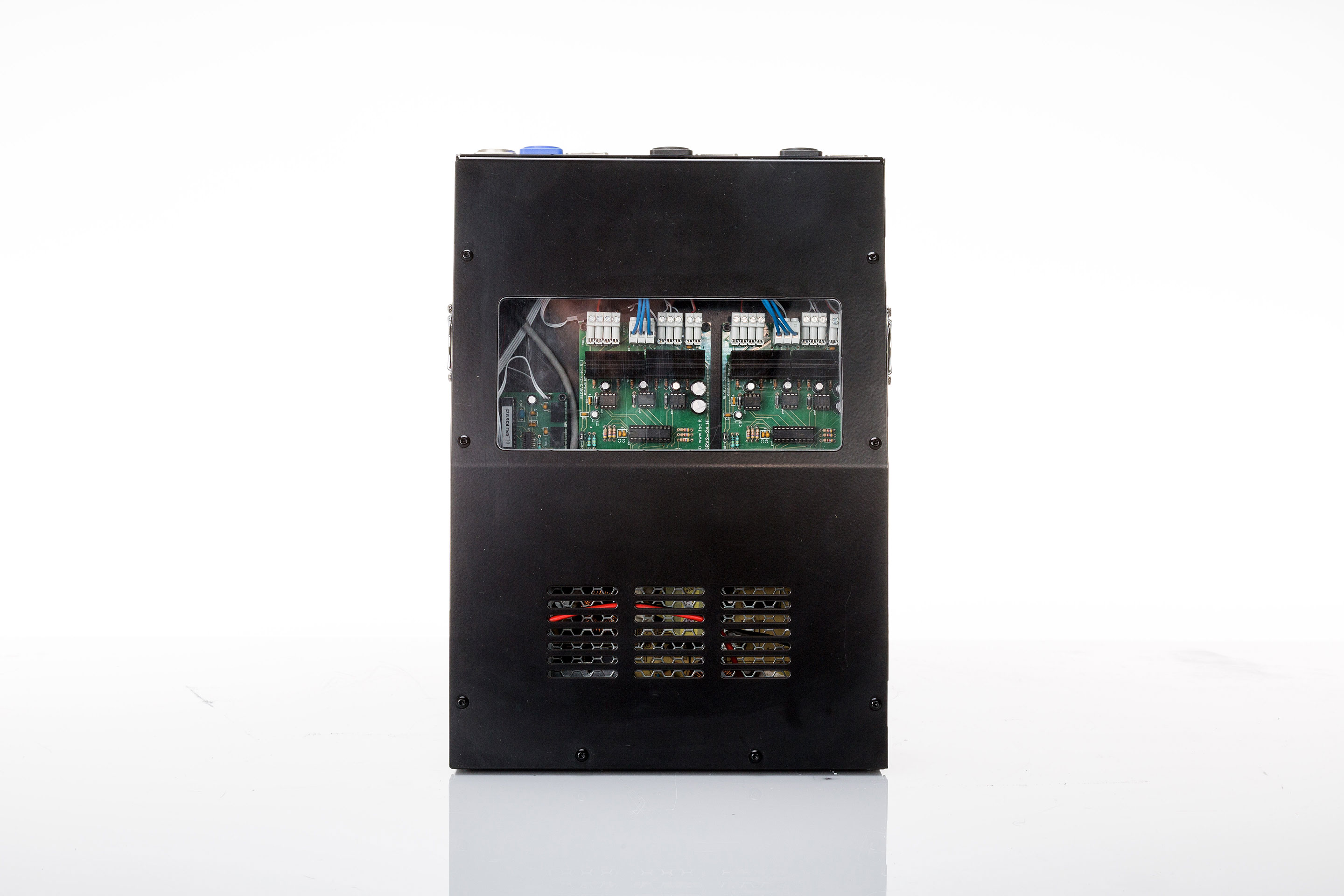

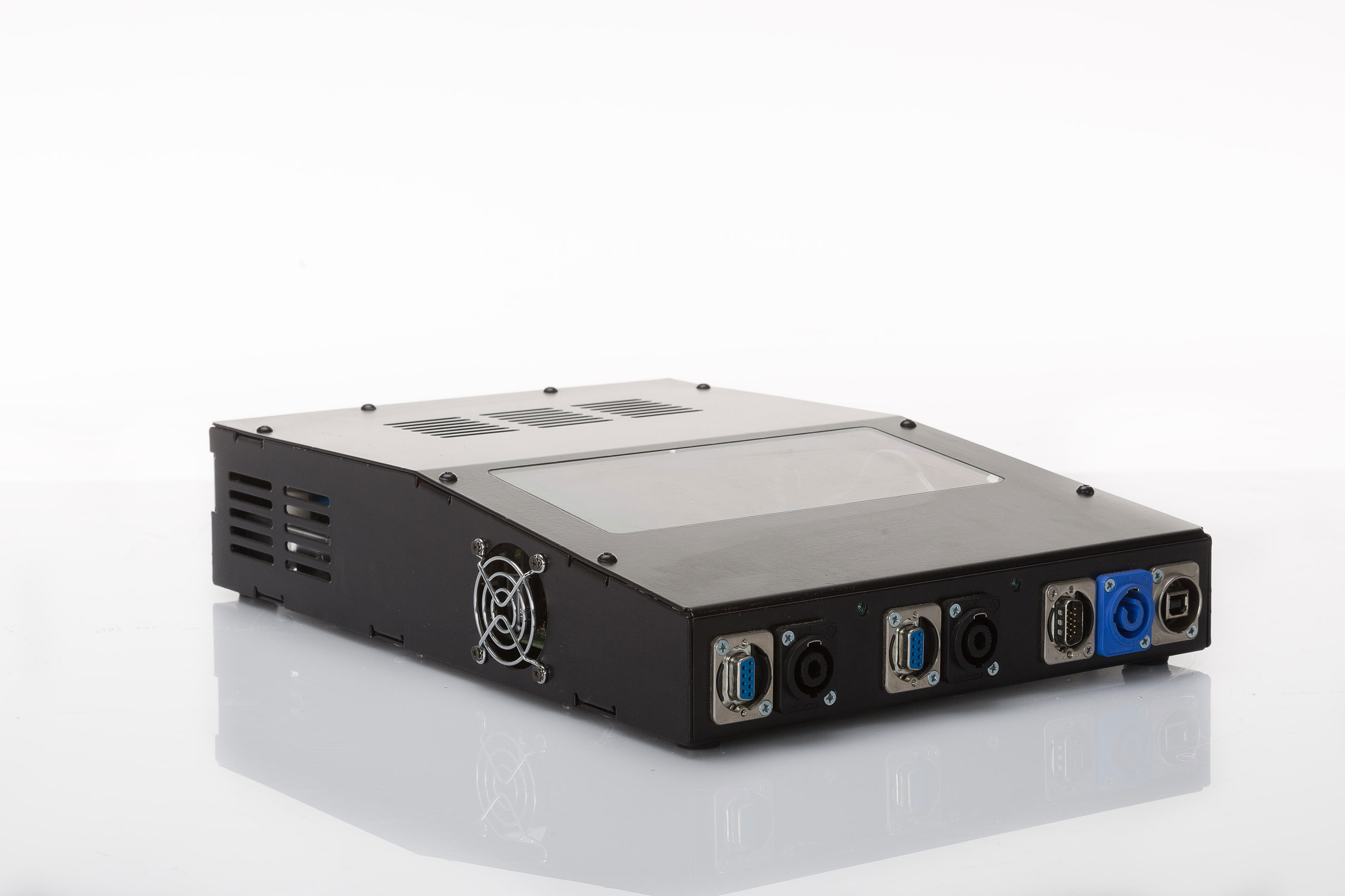

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-CONTROL-UNIT Control unit

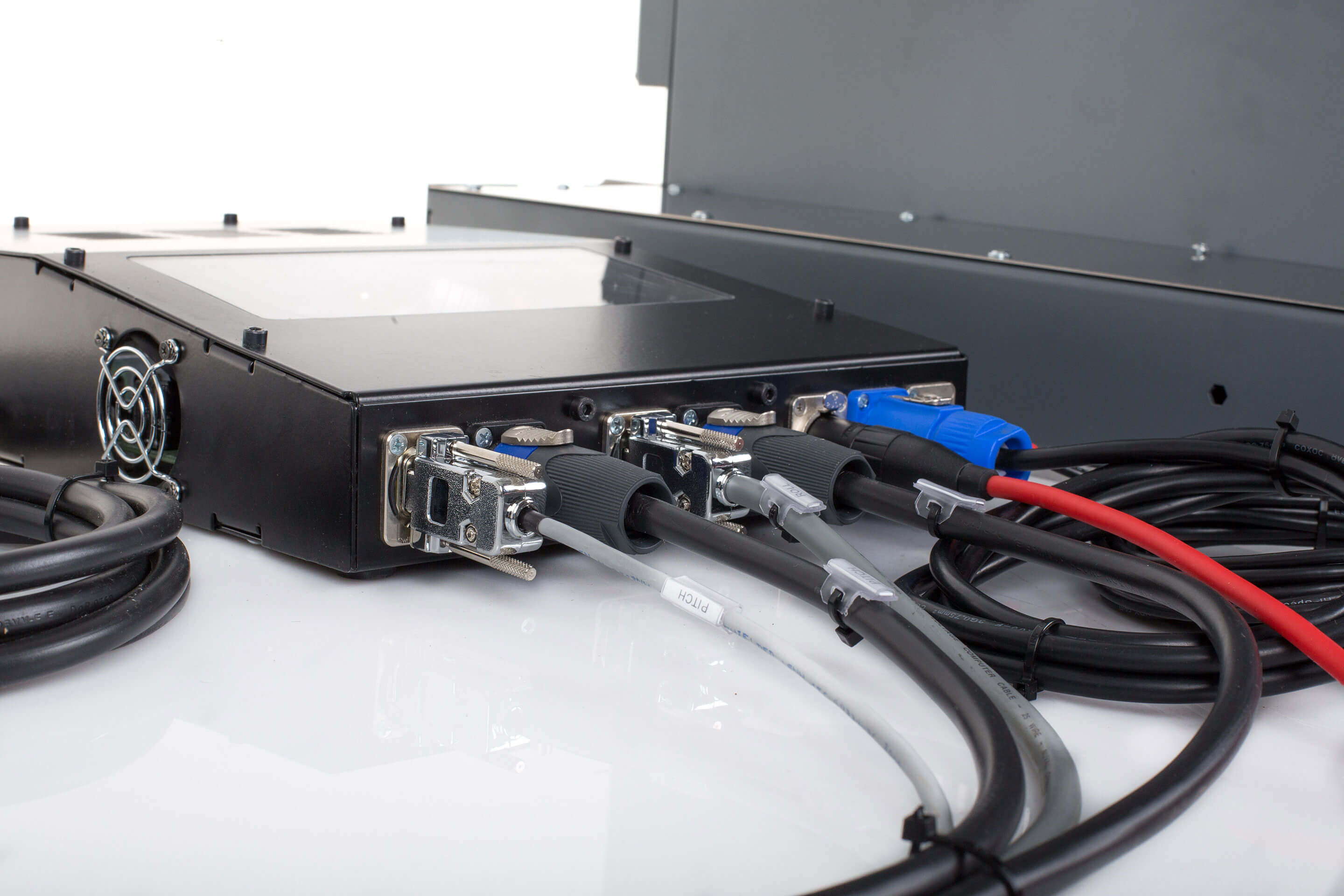

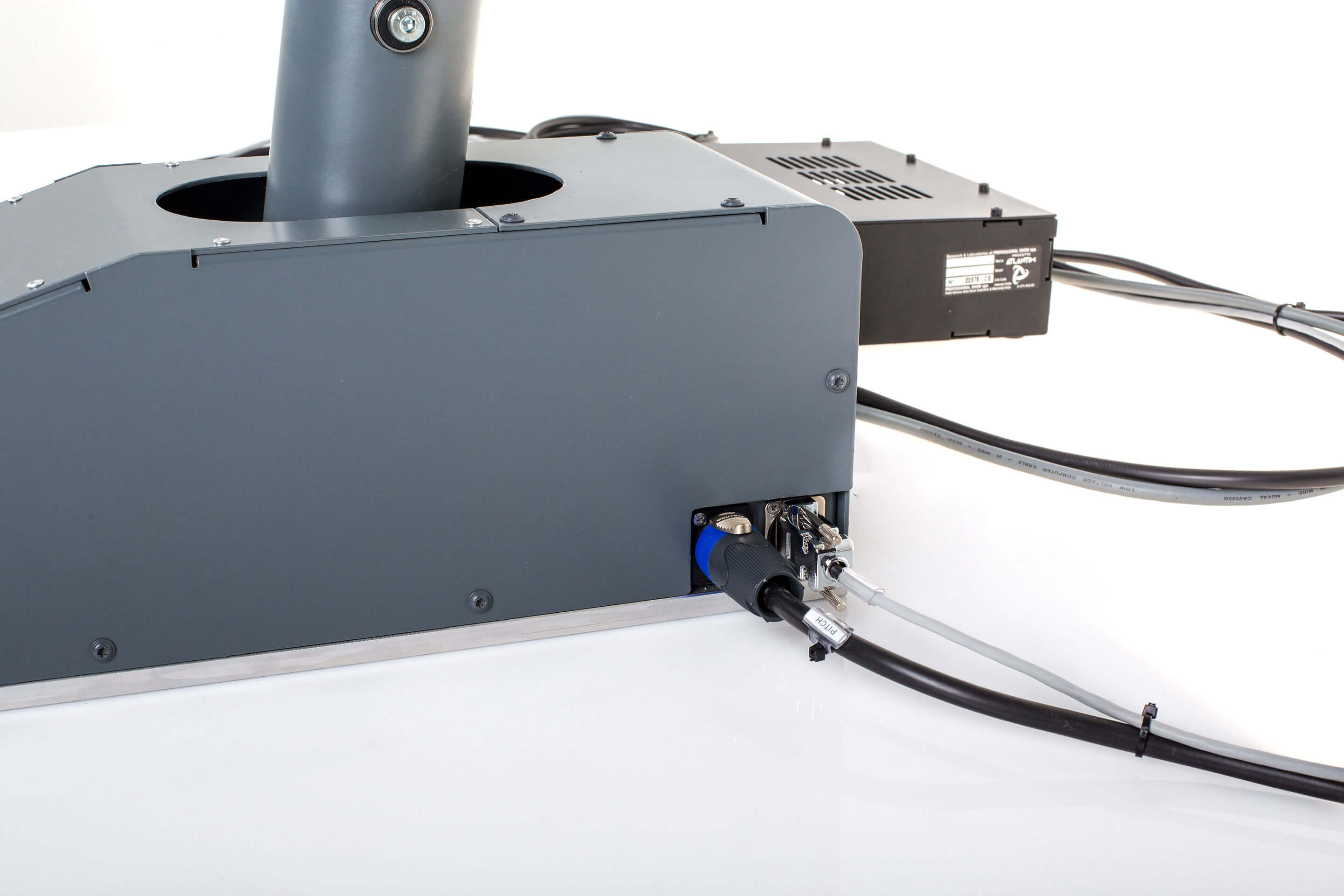

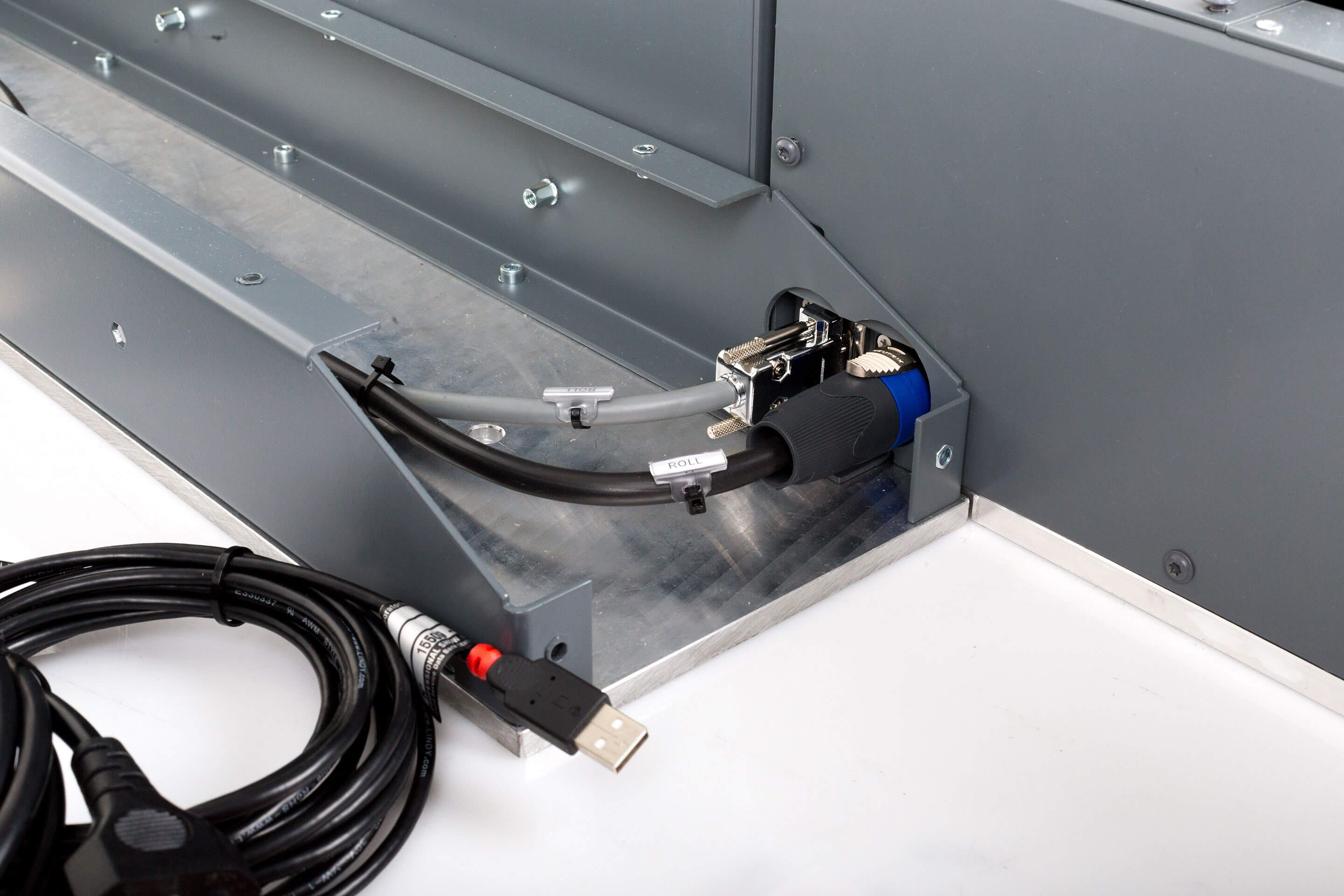

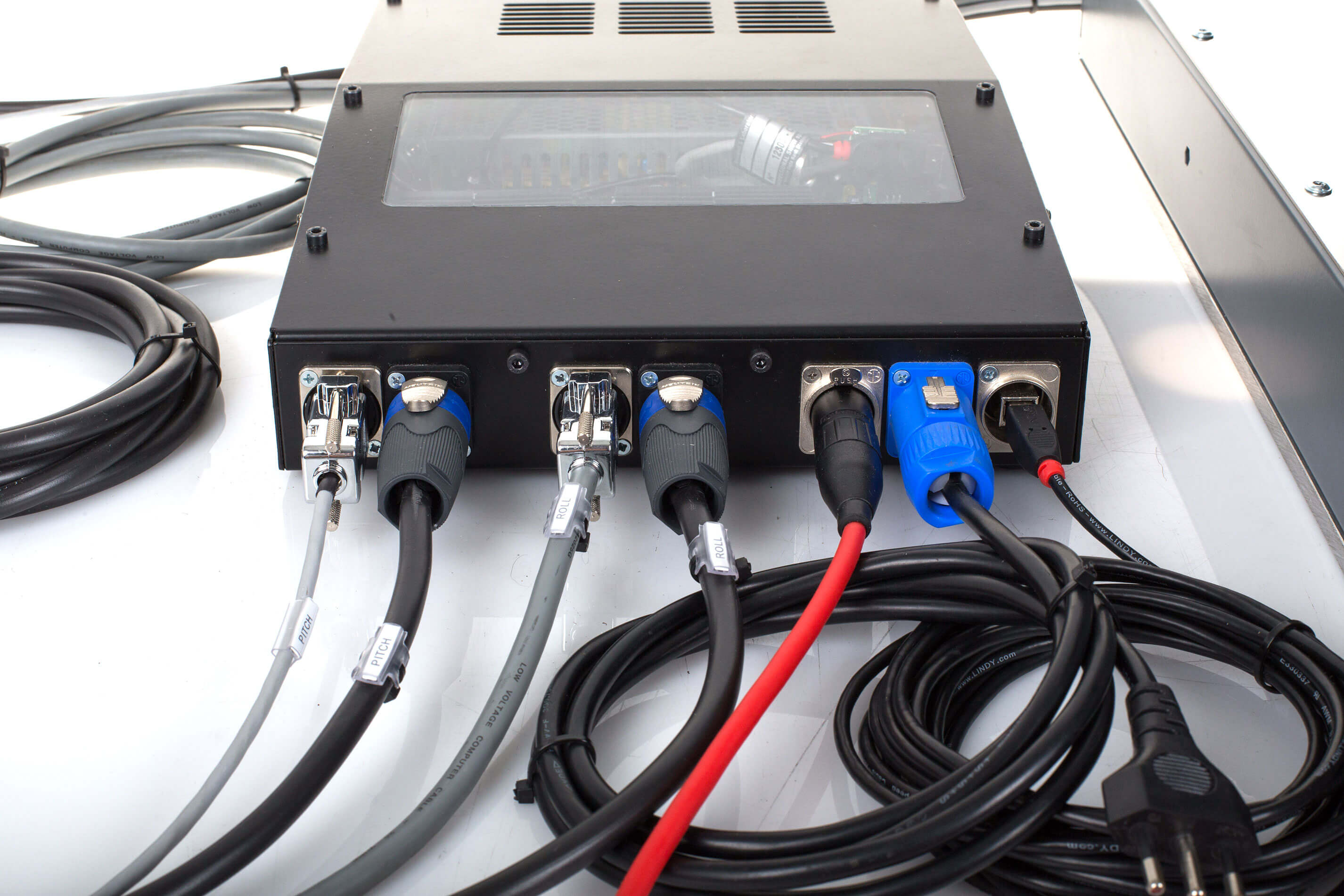

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-CONNECTIONS-1 Left side connections

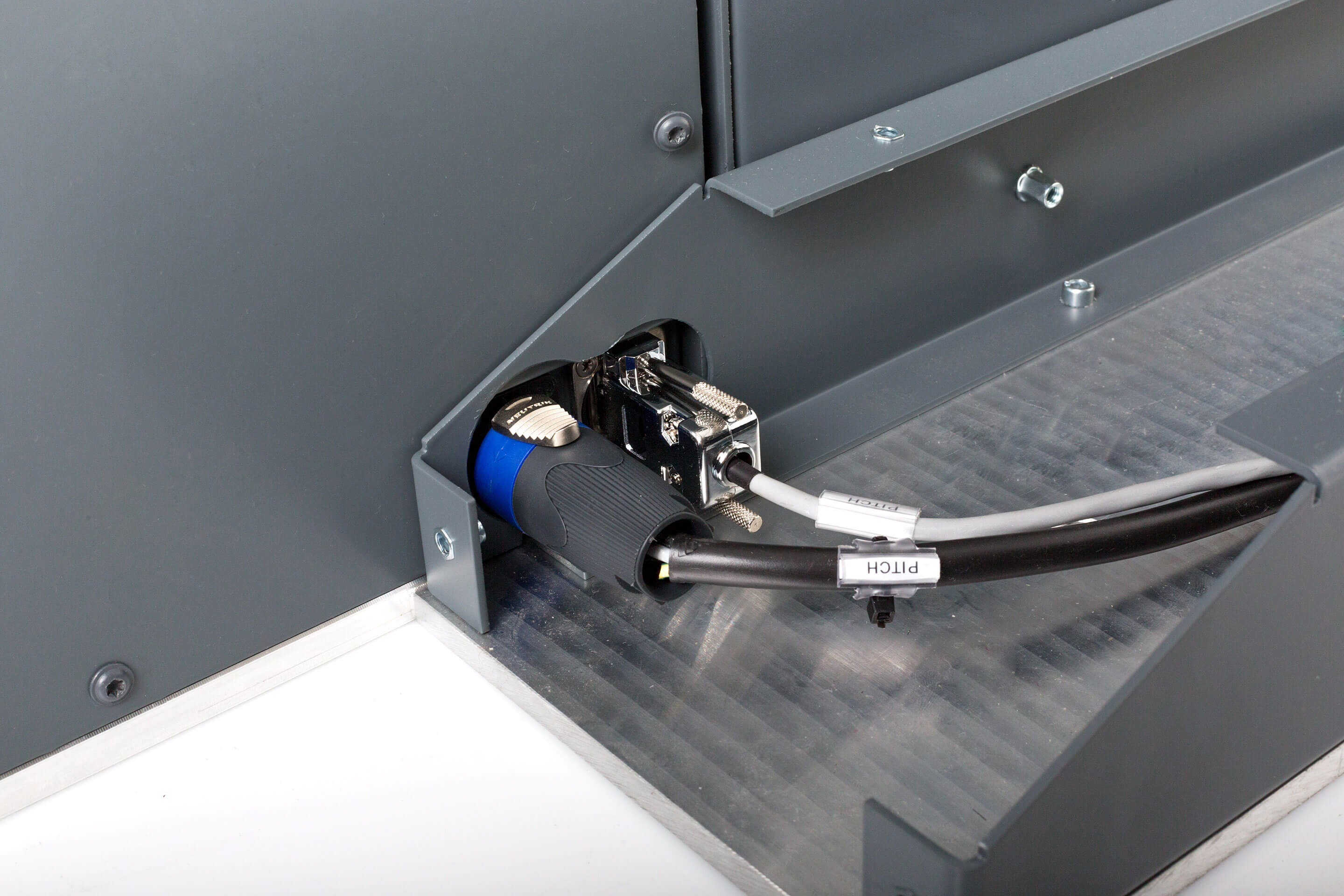

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-CONNECTIONS-2 Right side connections

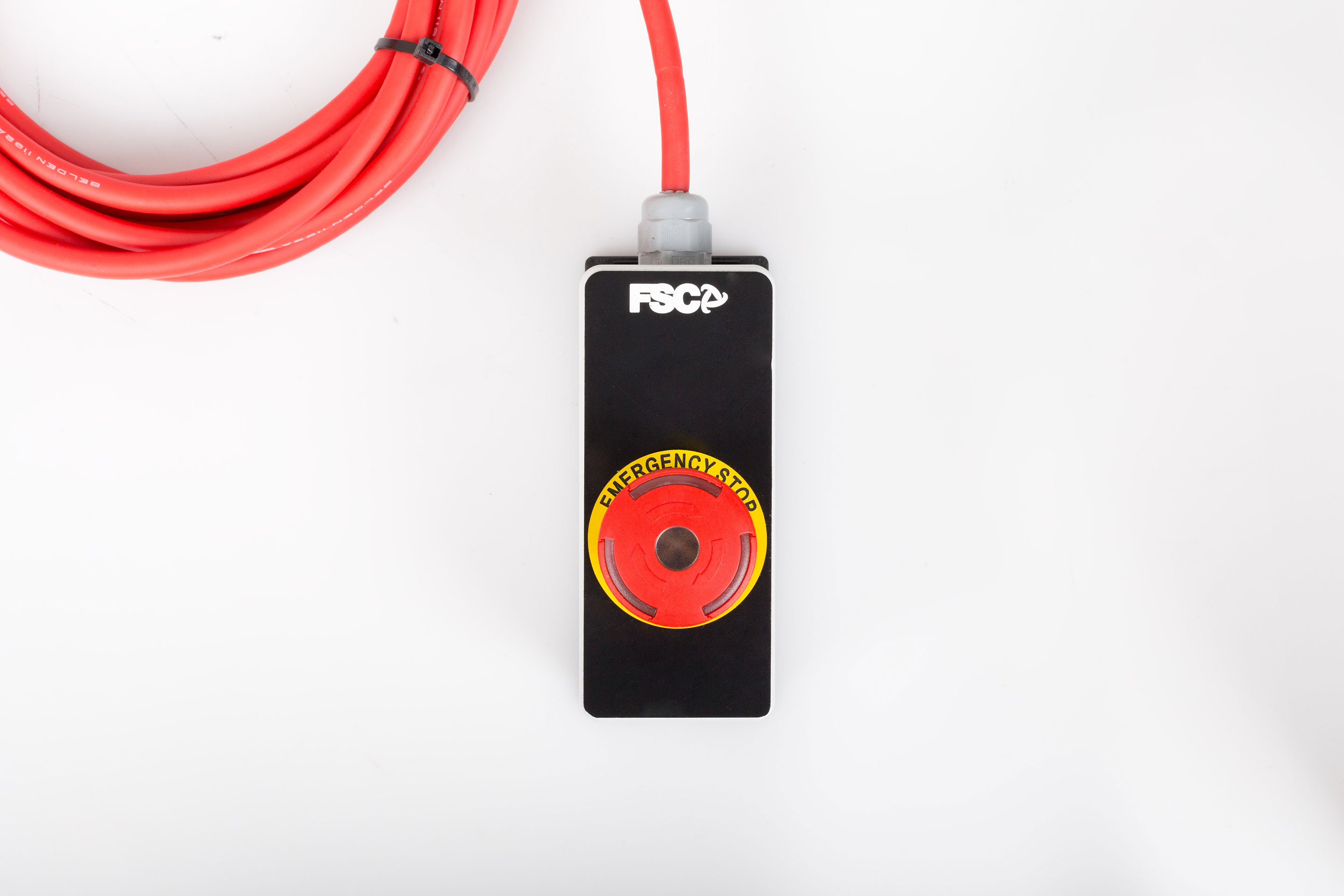

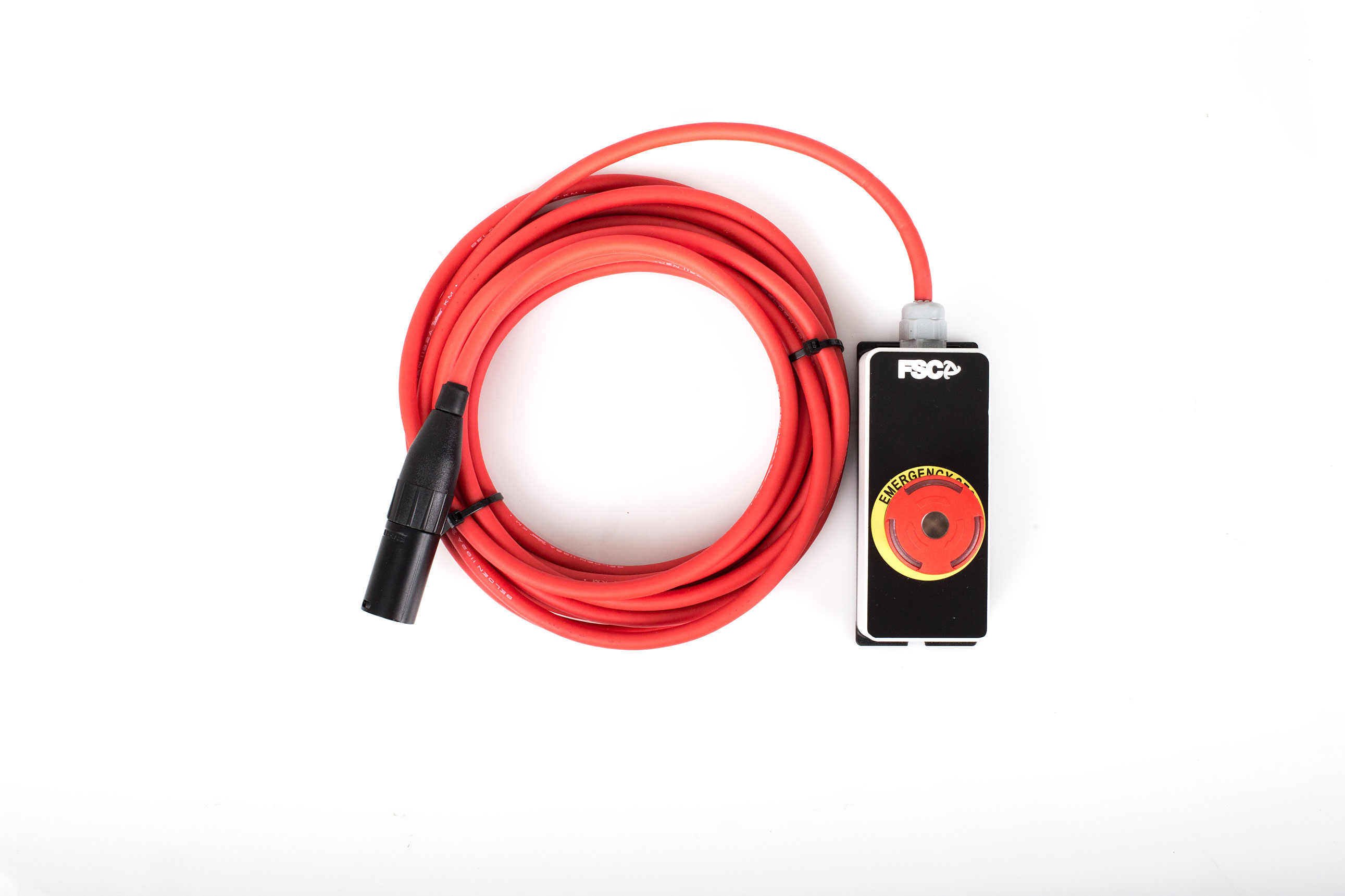

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-EMERGENCY-STOP Control loading emergency stop button

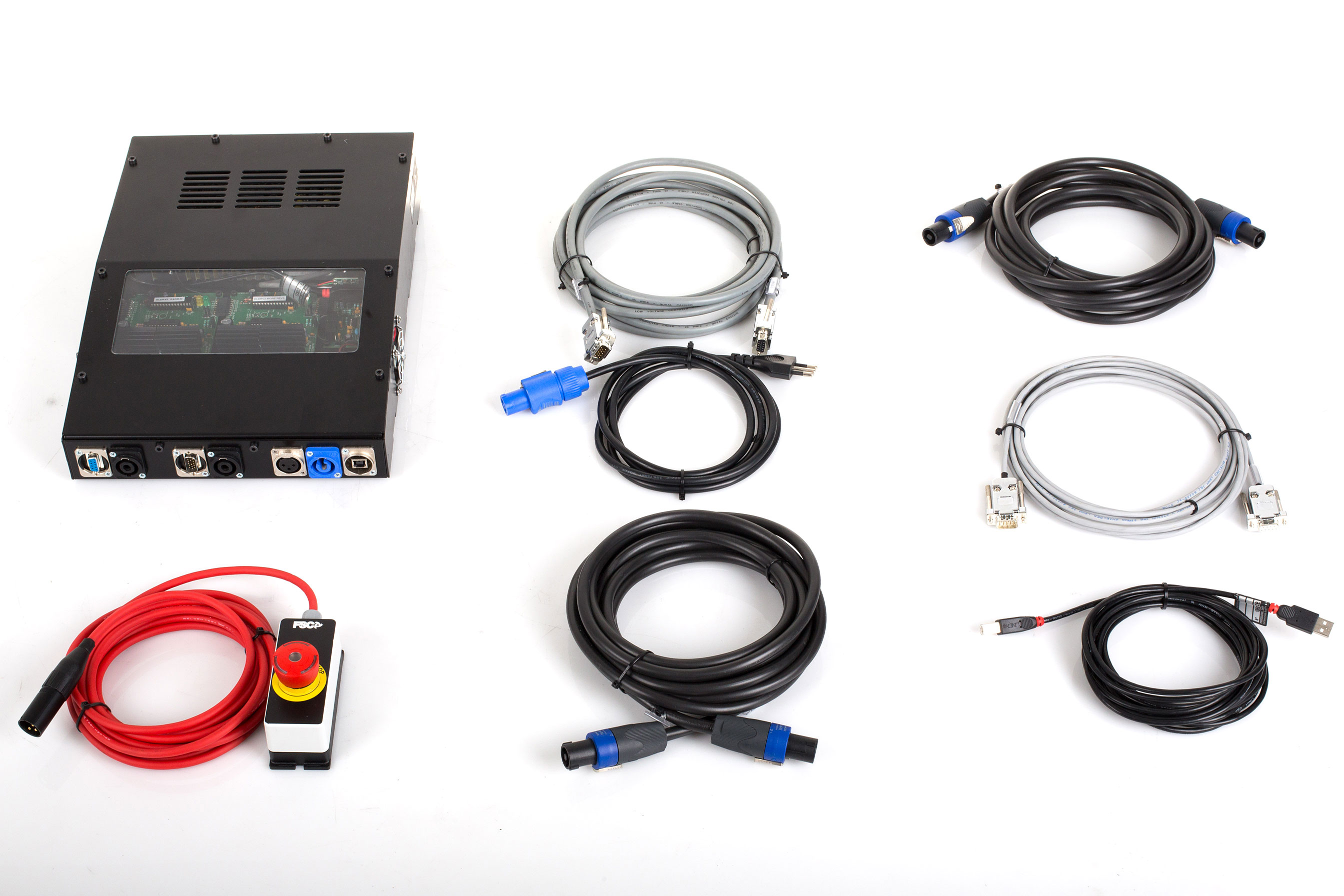

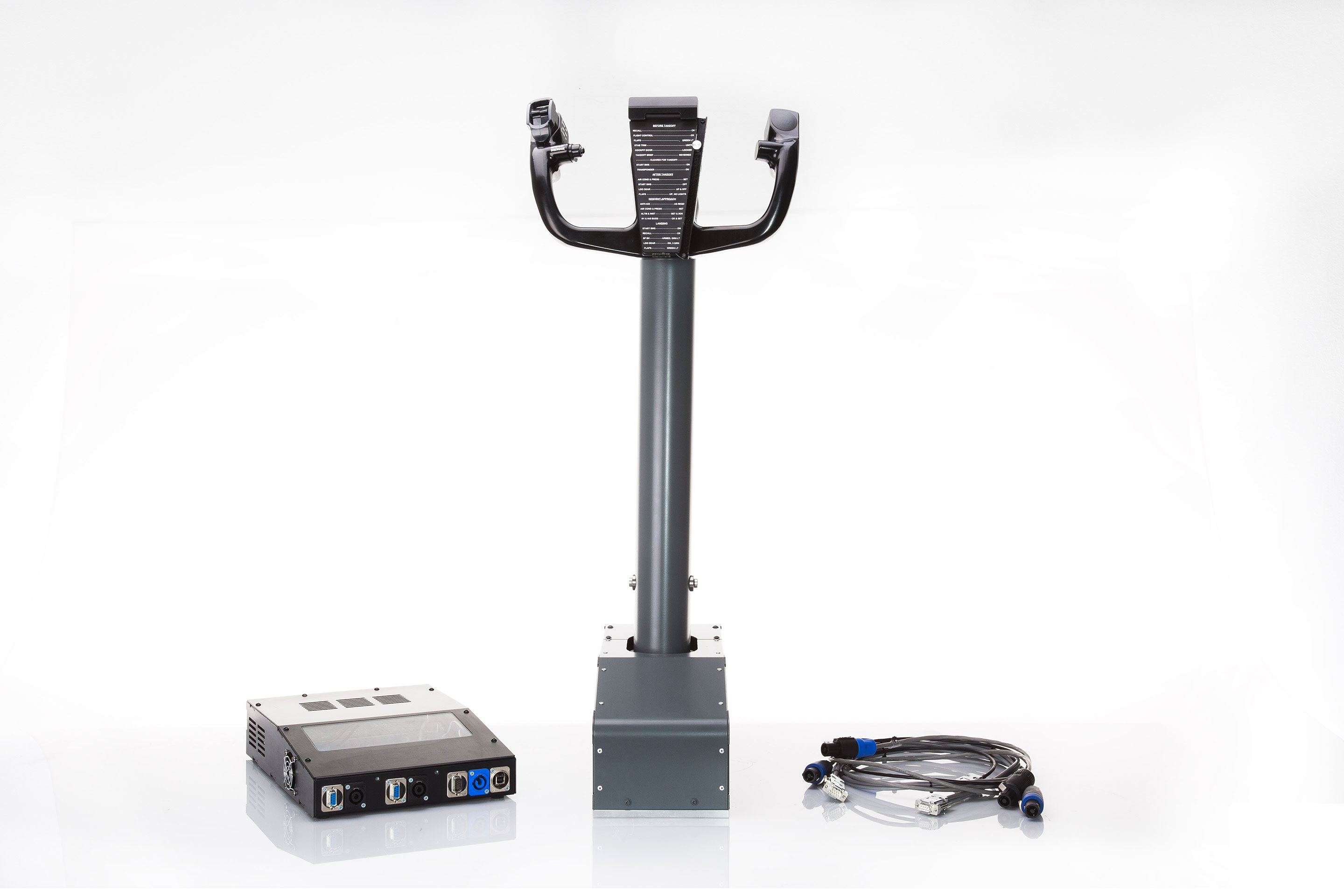

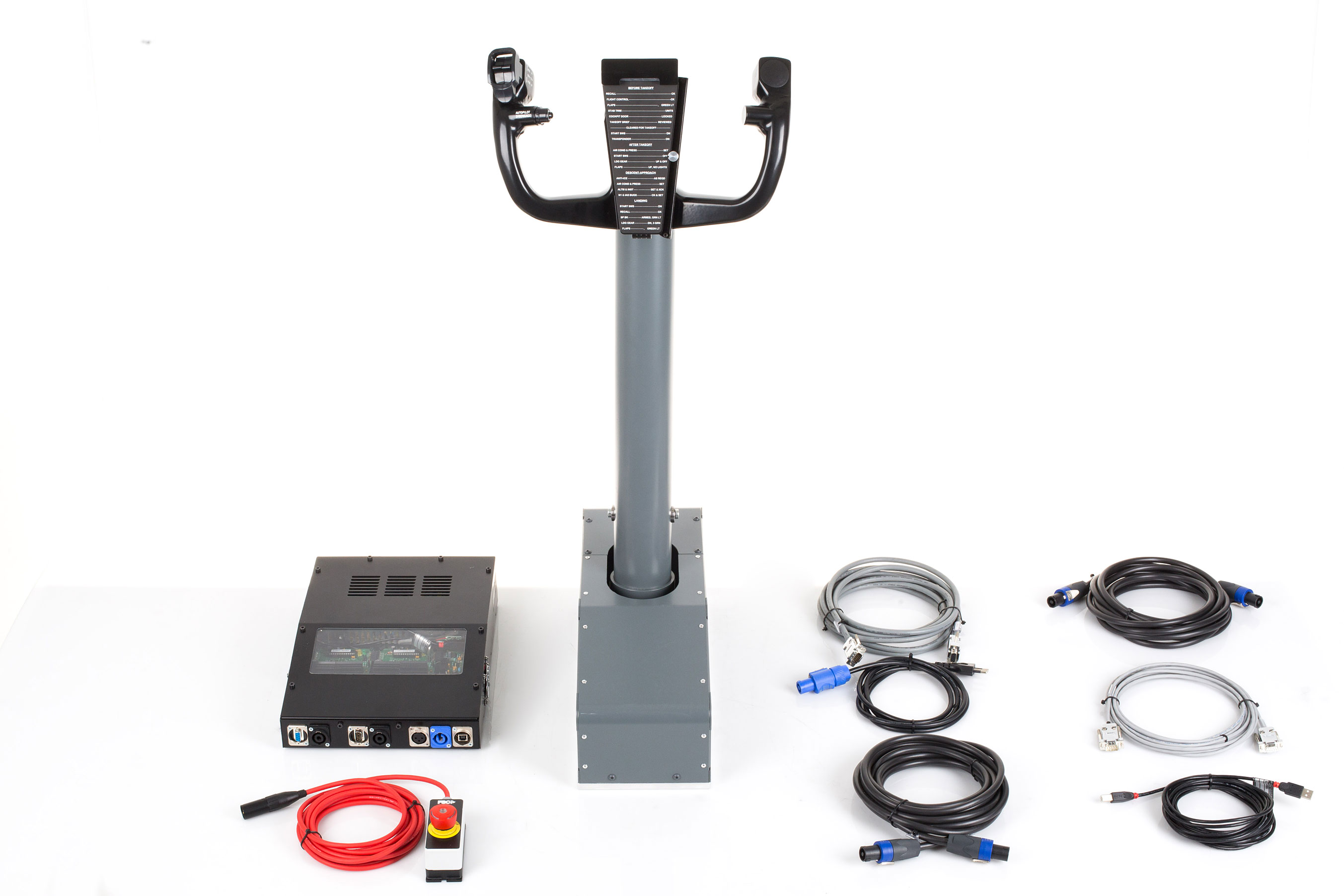

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-BOX-CONTENT Box kit content

Integration with B737NG PRO rudder pedals upfloor


The new single YOKE is designed to be coupled to our new B737NG PRO rudder pedals upfloor >> , forming a solid and very stable combo.

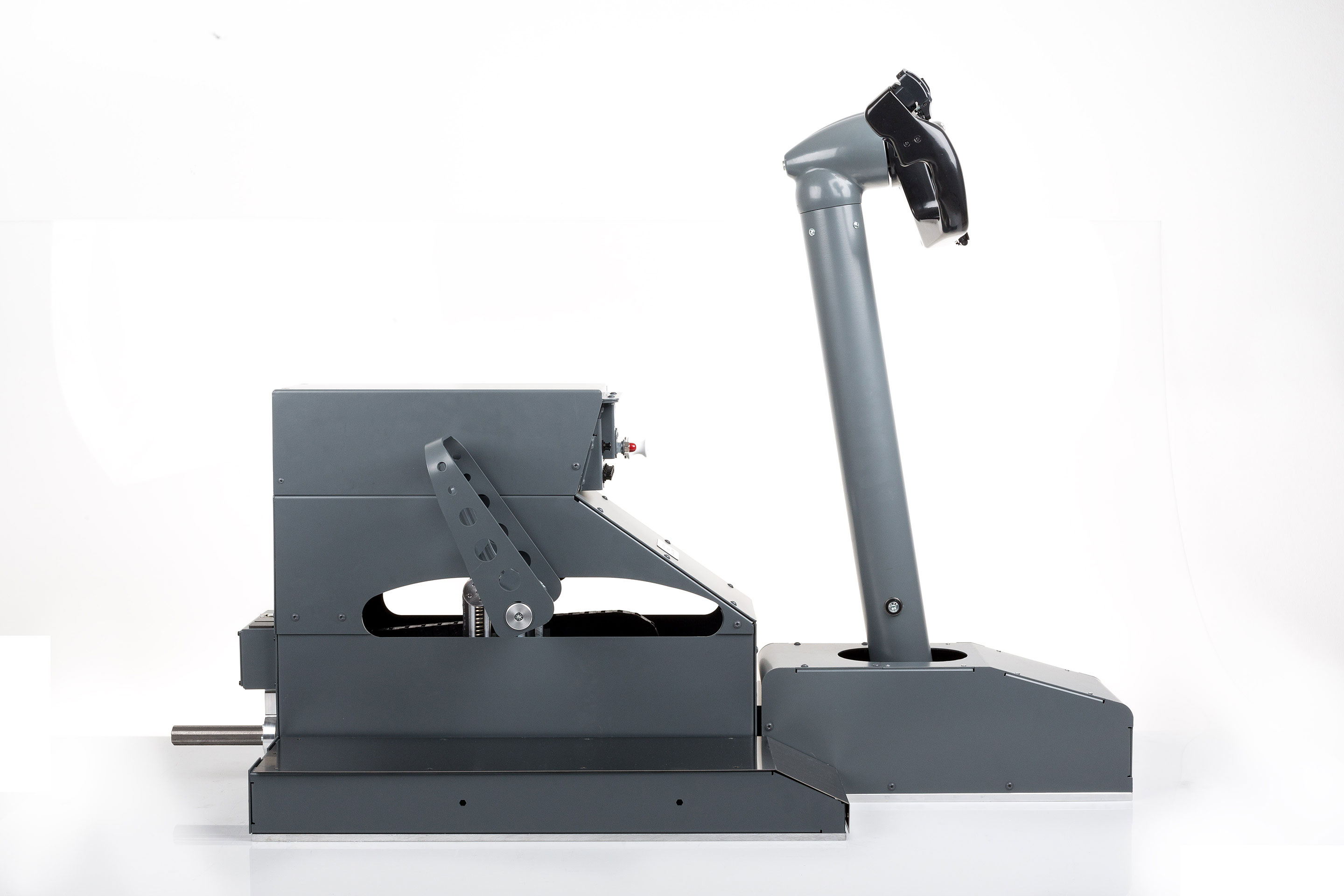

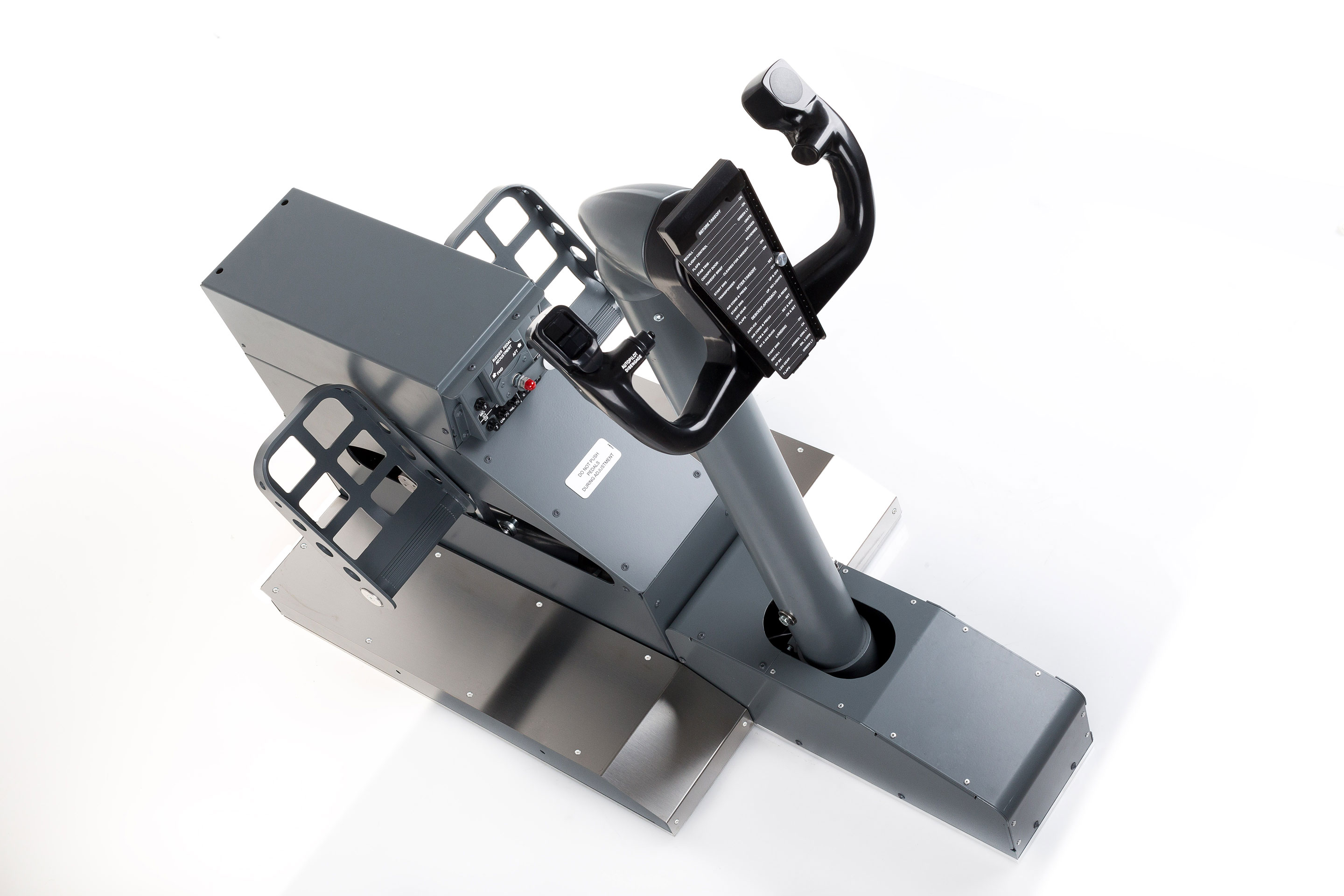

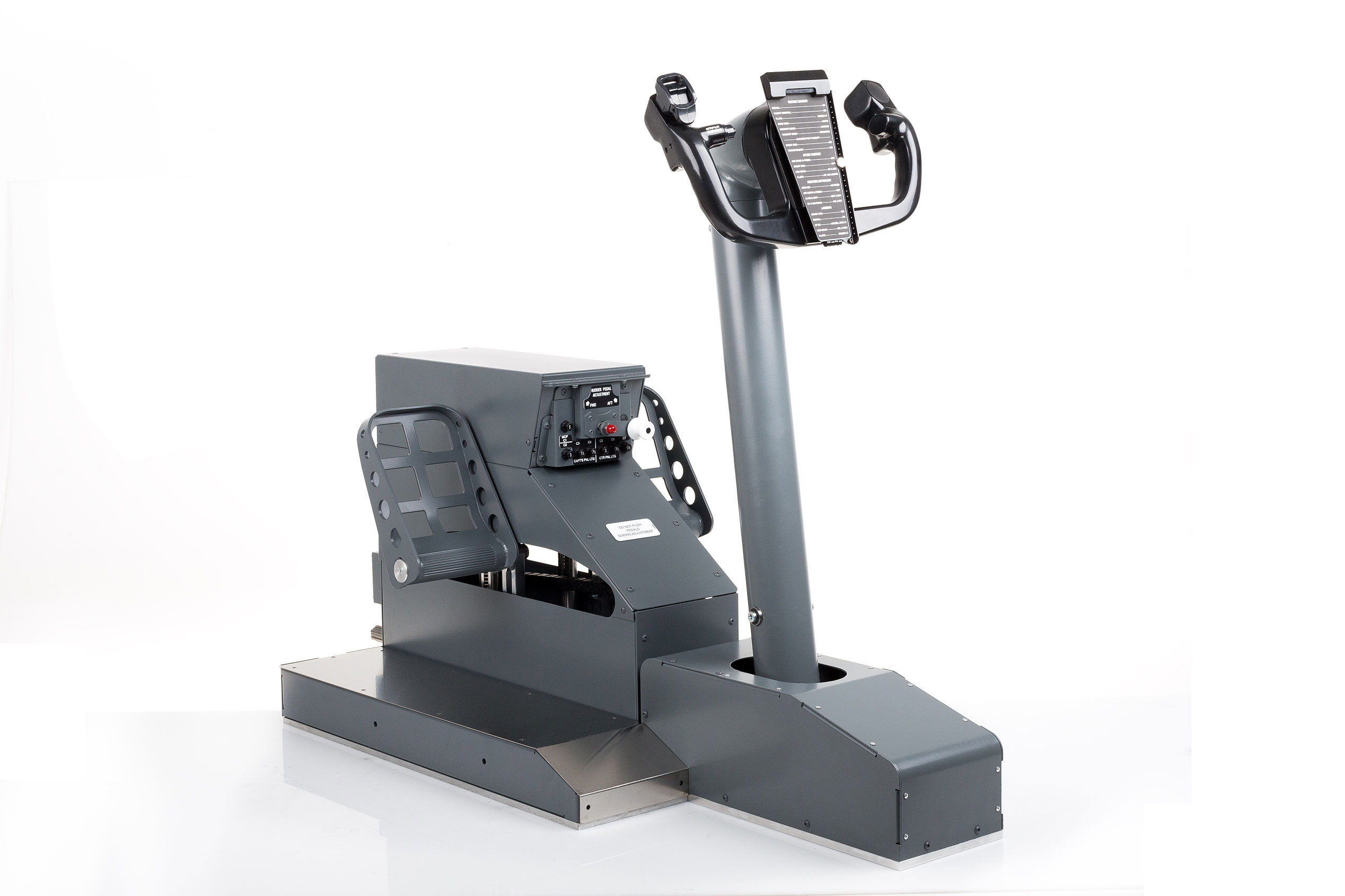

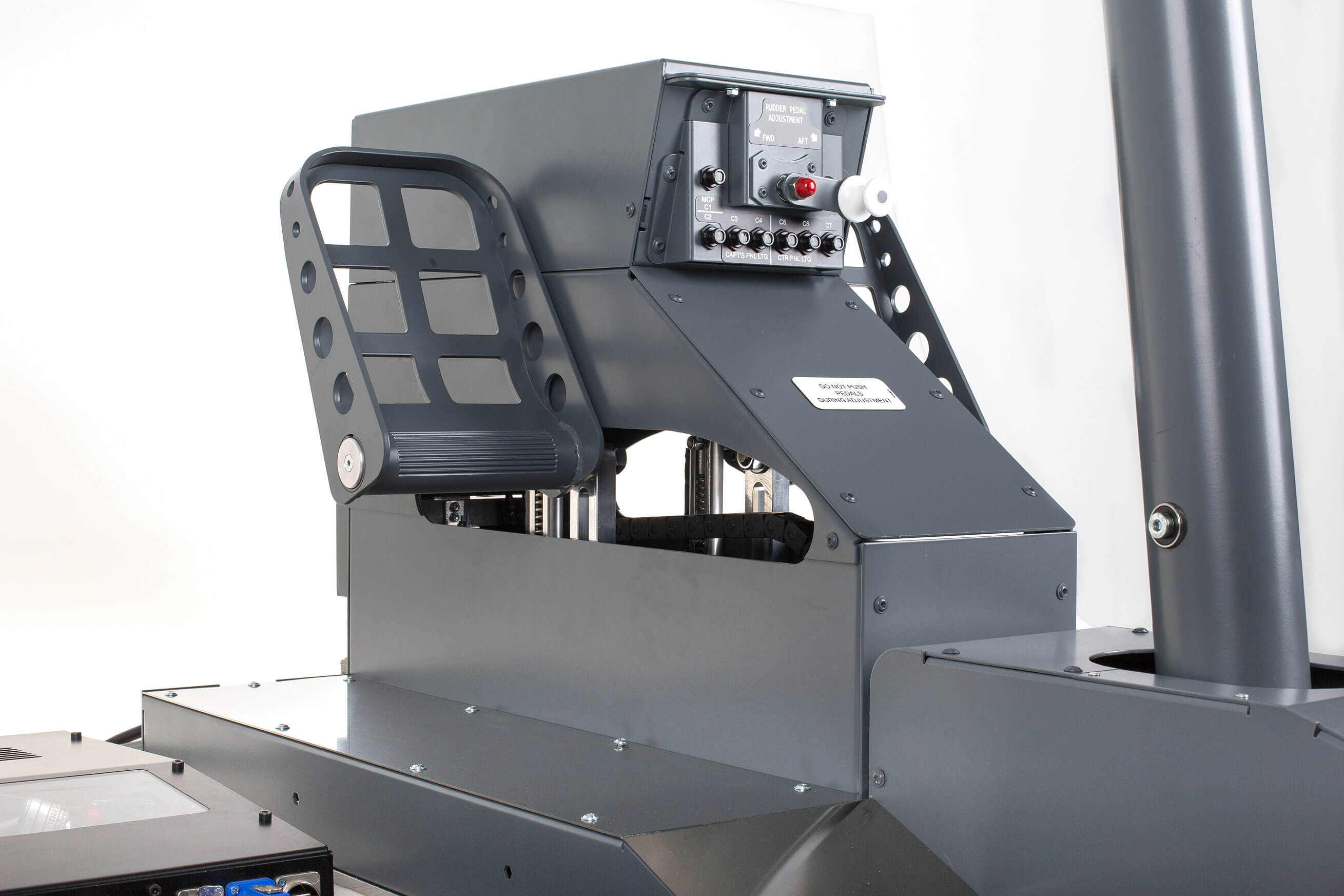

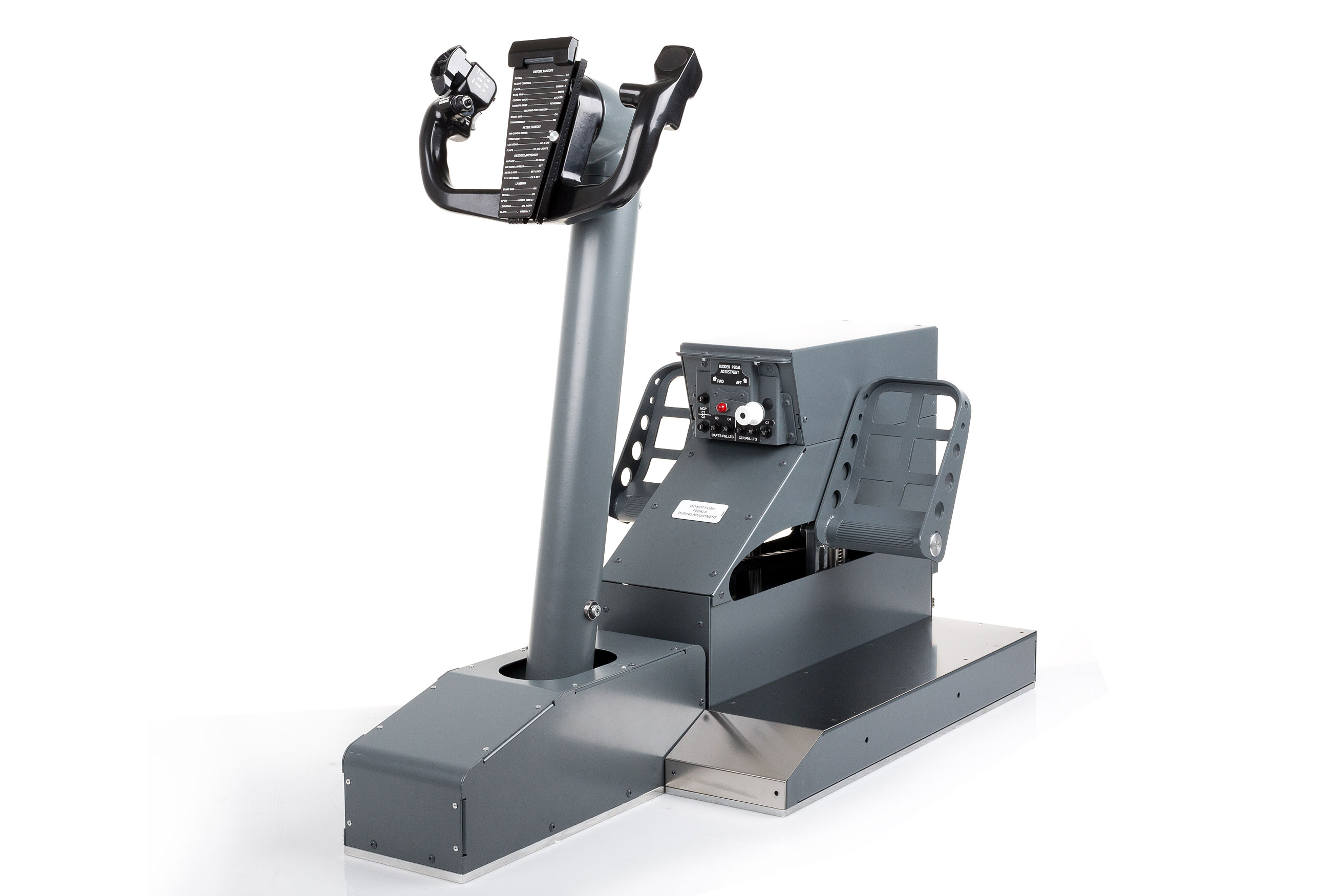

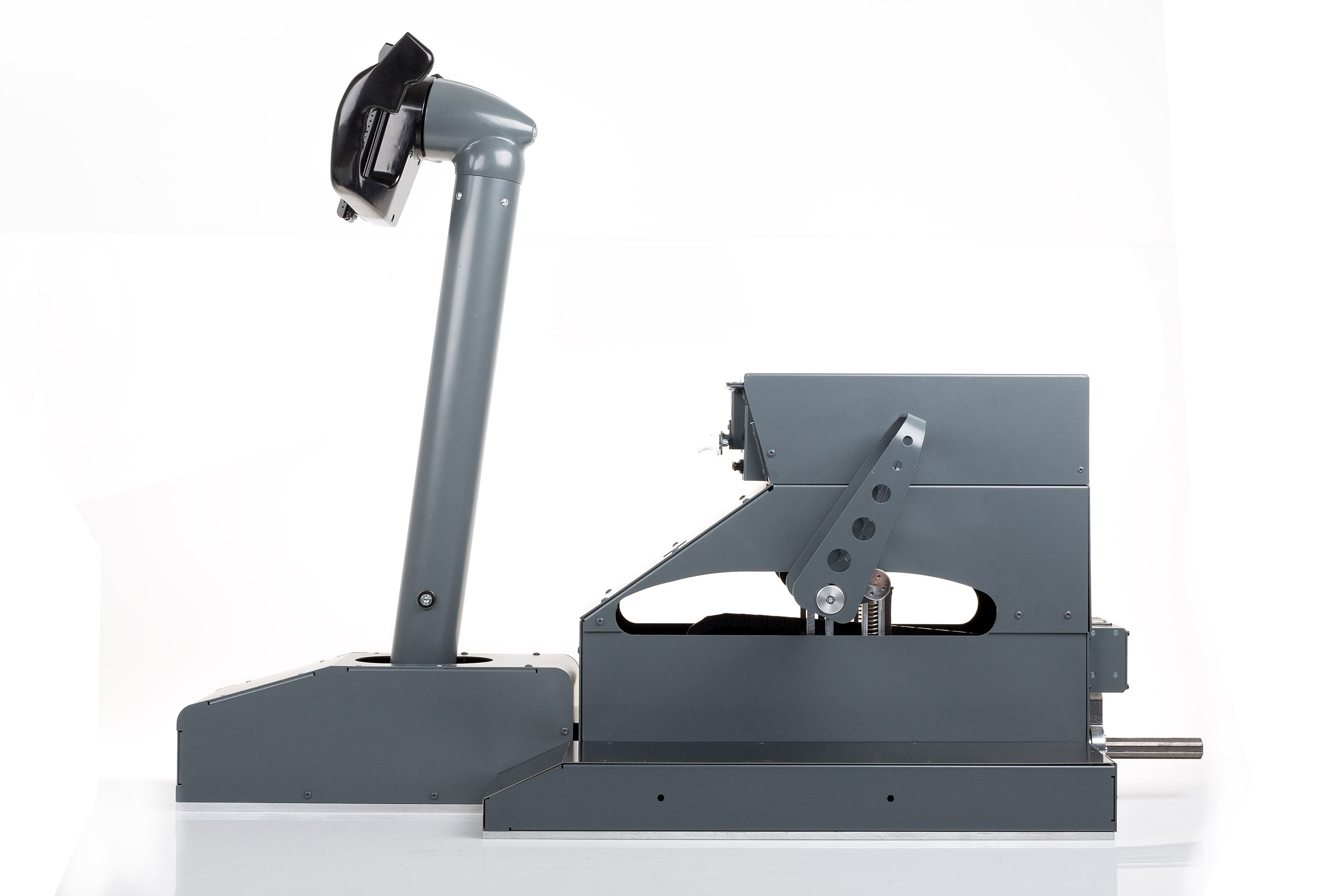

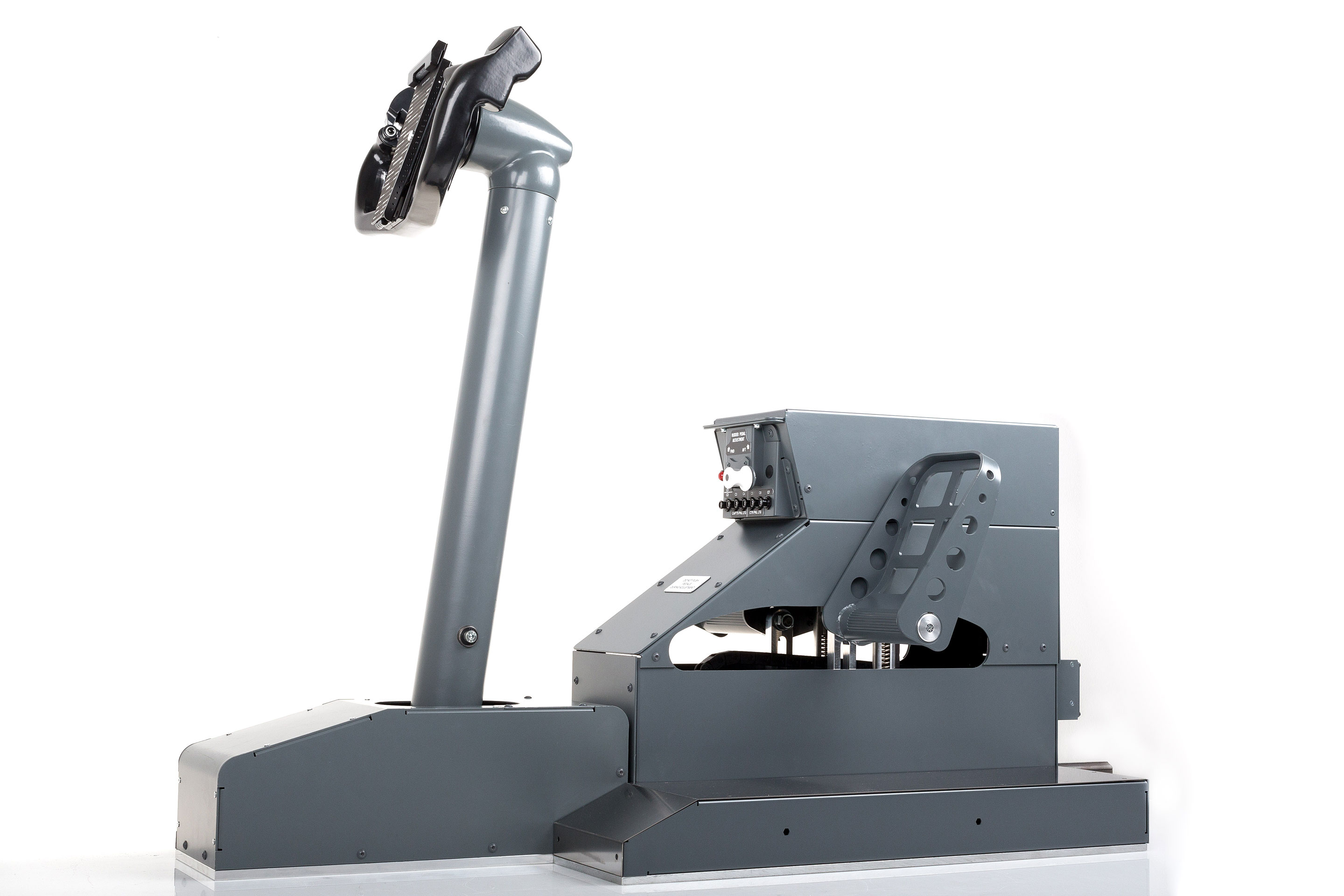

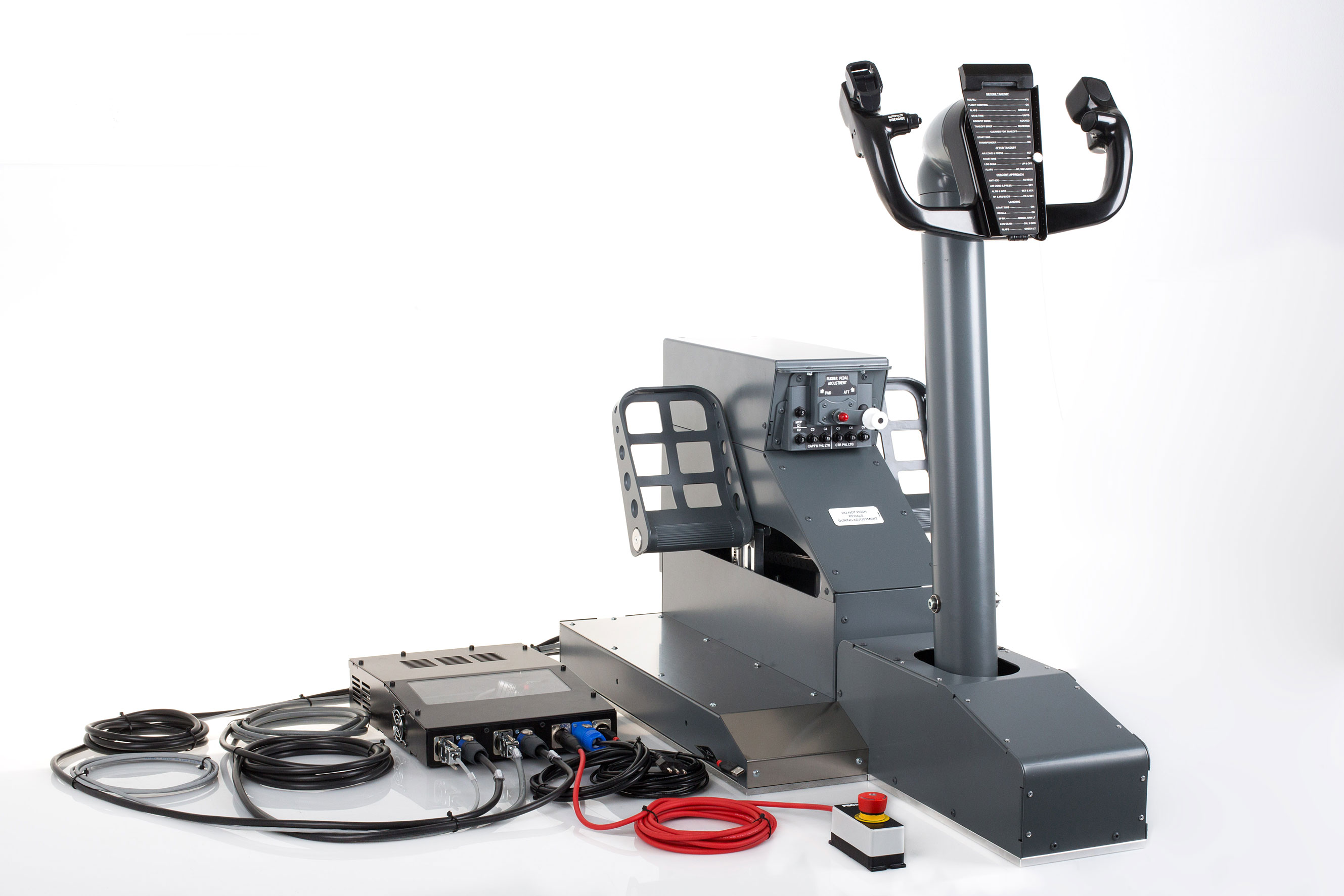

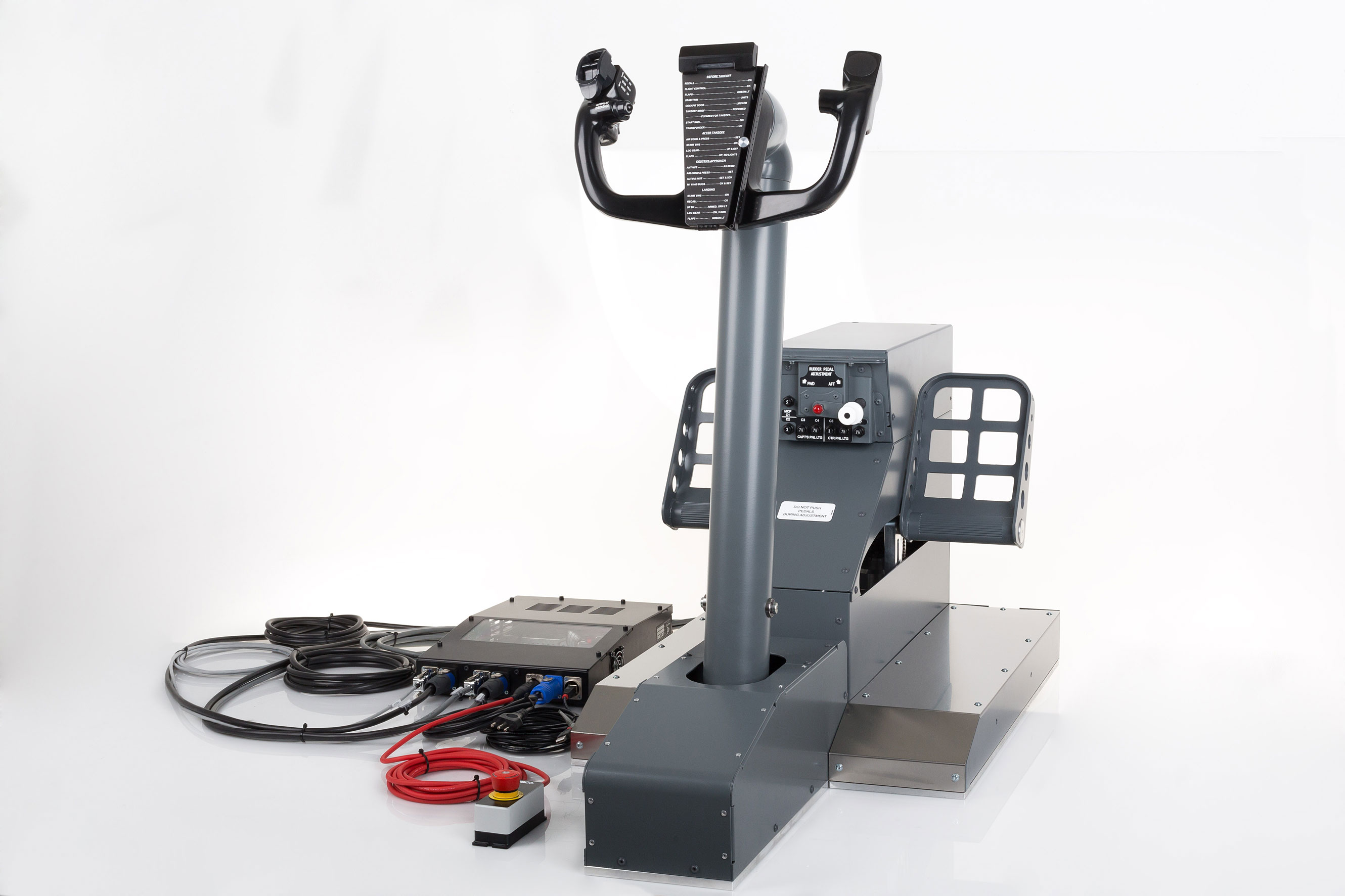

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-WITH-RUDDER-PEDALS-FRONT-34 The YOKE, integrated with FSC PRO Rudder pedals (sold separately)

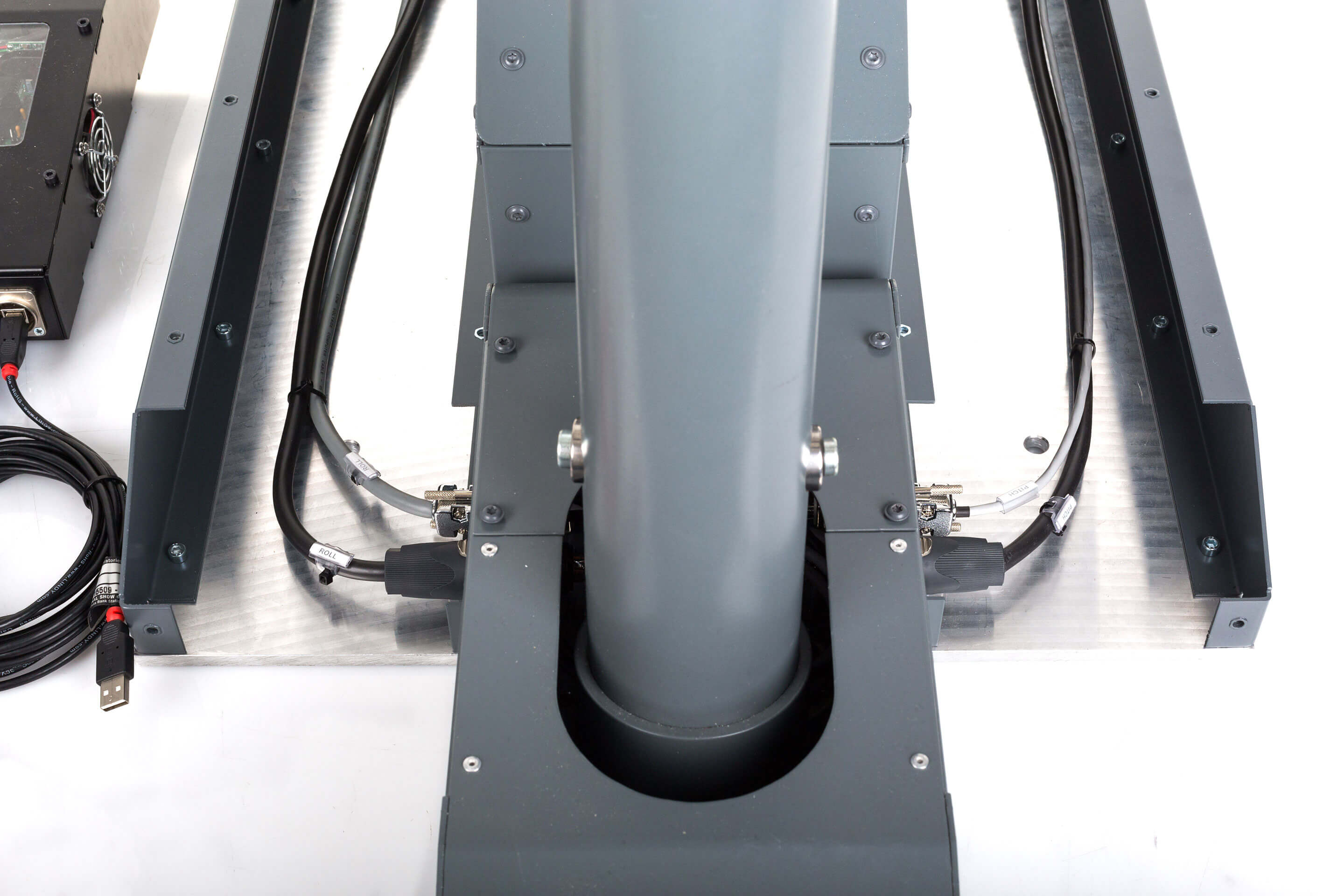

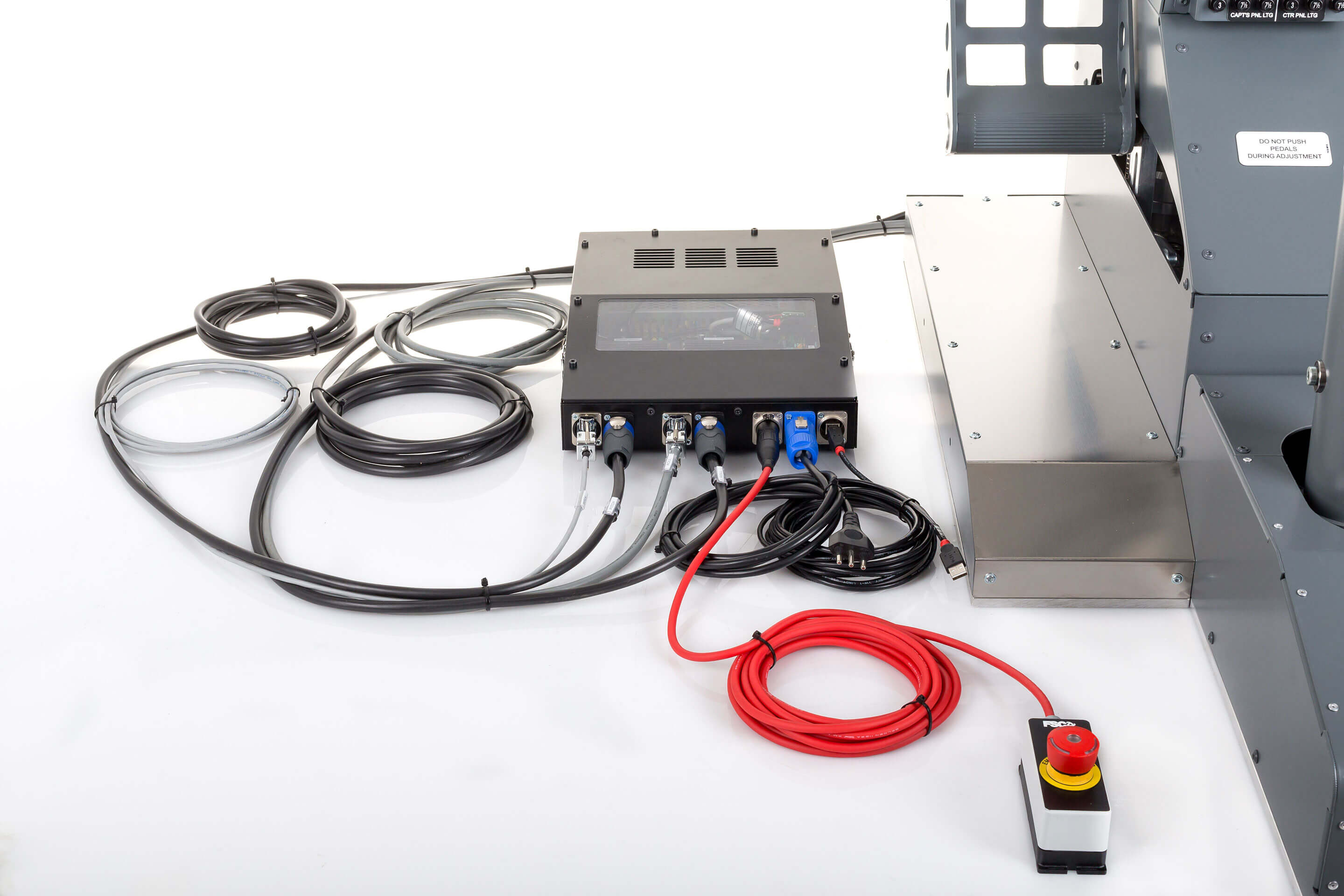

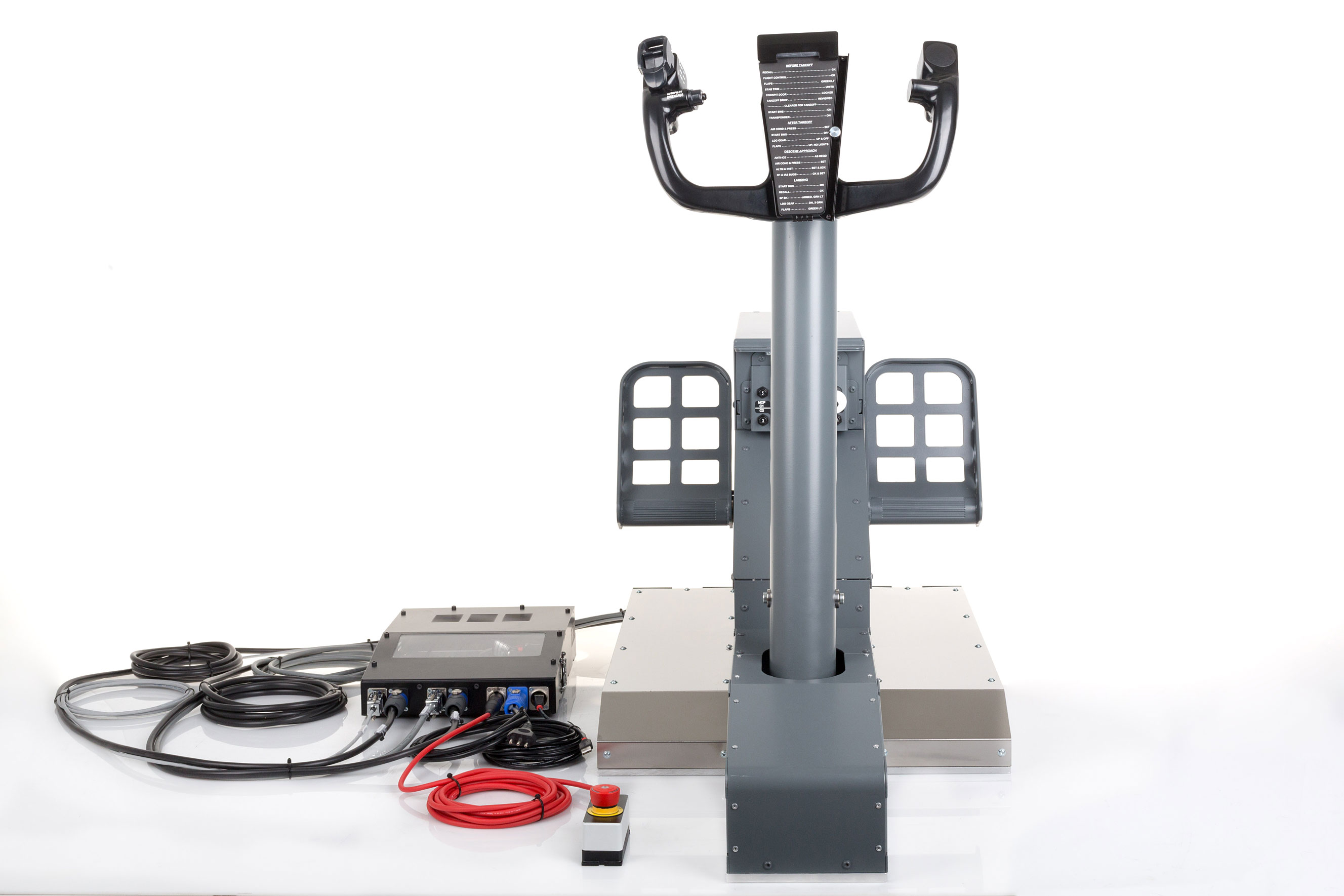

FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-WITH-RUDDER-PEDALS-CABLING-2 The neat cabling of the combo.
FSC-B737NG-YOKE-SINGLE-CONTROL-LOADING-WITH-RUDDER-PEDALS-CABLING Footrest closed.




Integration with THE UPCOMING B737NG MIP Pro compact System


The new single YOKE, together with the pedals, is designed to be integrated to our upcoming one-seat B737NG MIP Pro Simplified System. STAY TUNED !!!

FSC-B737NG-MIP-HALF-SIMPLIFIED-RENDER-FRONT-34 The UPCOMING FSC B737NG COMPACT MIP
FSC-B737NG-MIP-HALF-SIMPLIFIED-RENDER-DIMENSIONS Dimensions
FSC-B737NG-MIP-HALF-SIMPLIFIED-RENDER-FRONT-34 The UPCOMING FSC B737NG COMPACT MIP with OVERHEAD
FSC-B737NG-MIP-HALF-SIMPLIFIED-RENDER-DIMENSIONS Dimensions with overhead
