FSC is proud to present the A.E.S.
AIRPORT EDUCATIONAL SIMULATOR.
This new and innovative idea of intelligent entertainment, at a high educational level, provides the perfect mean to further enhance the impact with the public by offering an even more complete experience not only for the flying guests, but also for all waiting customers and standby spectators.
THE A.E.S.
The core of the AES is a fully functioning B737 turnkey, complete of instruments and realistic components, designed and built for intensive use. Each machine is assembled and thoroughly tested in factory to meet our high standards of reliability and it is capable of operating for over 12 hours a day, 7 days a week, without even reaching its full potential.
![FSC AES B737 4K 2SEATS UHD EXTERNAL]()

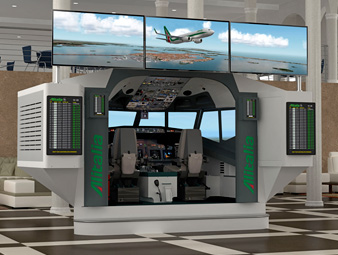

AES - with 2 seats.
![FSC AES 4K UHD B737 COCKPIT]()
The B737NG cockpit.

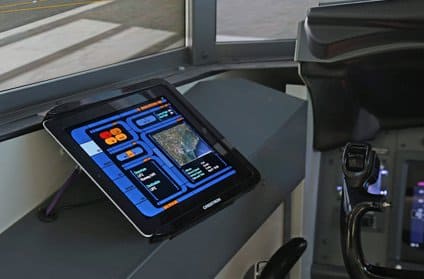

The AOP lets you have all main AES functions at your fingertips.
FEATURES
The cockpit features the most realistic features available, such as the Multipoint Audio System and a High Definition visual system including customized photorealistic sceneries, but what further distinguish the AES from any other simulator turnkey, is the presence of unique functions and features for an easier and faster management of the system and a more complete experience that goes even beyond the flight itself.

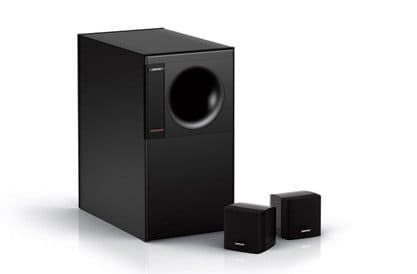

Bose speakers used in multipoint audio system (M.A.S.)

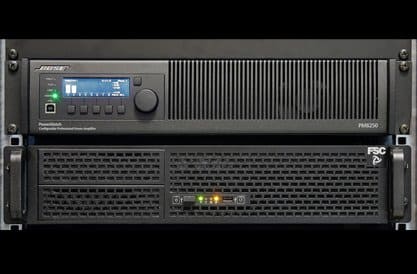

The pro BOSE multichannel audio amplifier and the audio server.
Through a dedicated Booking System each customer will begin his experience even before entering the cockpit: two “flip board” monitors will show all flights of the day, each with its own livery and time, constantly updating their status (booked, available, boarding, landed…); while a wireless tablet, with a specifically designed graphic interface, will enable each guest to book a flight available and the real Boarding Pass printer will provide a confirmation “ticket”.
Each ticket is further customizable on the front layout with the operator’s logo and colors, and the back can be used for useful informations to the customer or even for advertising sponsors.
This simple system will contribute in creating the environment and atmosphere of a real flight as well as provide an elegant way to avoid chaotic queues with a stylish token and reminder of the experience.
Moreover, an online booking service, optimized for mobile devices, is also available for AES customers and guests.
![FSC AES 4K FLIPBOARD]()
AES - Self-Updating Flipboards show accurate flight statuses

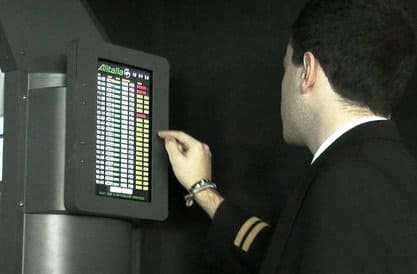

Booking with the integrated tablet

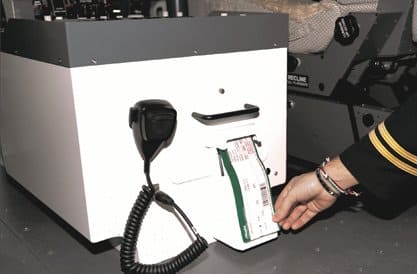

The boarding pass is immediately available

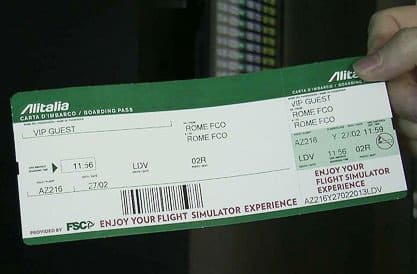

Perfect thermal printed boarding passes
Customizable with info and advertising
To further involve all spectators and waiting guests three monitors are synchronized with the current flight and will show and follow the aircraft from an external point of view.
The result is a breathtaking panoramic scenery that will capture the attention of all standby and passing by guests.
Training
Given the high realism of this system, we suggest to provide a trained supervision to all guests; for this purpose our Headquarters offer a very efficient training room, where our staff can provide operative training to develop various skills and a basic technical knowledge to the operators of the AES.
Our Training Team

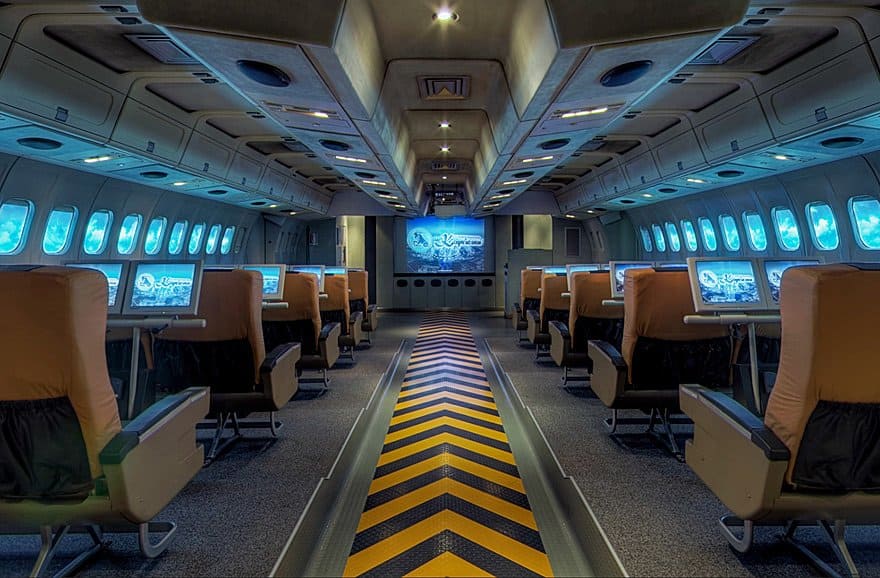

The Training Room @FSC Headquarters
OVERHEAD FWD + AFT
AFT and FWD Overhead Fully Integration Functions with PmSystems ( Project Magenta)® AFT OVERHEAD
- ZOOMABLE IMAGE -
-
Fully functioning Audio Panel linked with Audio Panels on Pedestal
-
Fully functioning EEC, Pass Oxygen and gear annunciators
-
IRS system display unit and IRS mode selector panel:
-
Latitude and longitude display with real time position indications
-
Fully functioning selector for IRS allignment
-
ALIGN and ON DC annunciators
FWD OVERHEAD
- ZOOMABLE IMAGE -
-
Fully functioning Power indicator display and AC meters selector
-
Backlit Knobs e Panels
-
Engine selector with solenoid auto-off function, auto return from GRD position to OFF position
-
Anti Ice panel with auto-off function for WING ANTI-ICE (solenoid)
-
Windshield e Pitot heat control panel
-
YAW DAMPER switch with auto-off (solenoid)
-
Light panel with Boeing 737 replica switches caps
DUAL LINKED FMC/CDU
![FSC B737 AES CDU FMC]()
-
FMC CAPTAIN e F/O side
-
Dedicated Firmware does not require VGA and USB connections
-
LAN Interface
-
Project Magenta software compatible
-
High resolution color LCD monitor
-
Adjustable Backlight intensity
-
MSG and FAIL indicators as in the real version
-
Only one PC required for both FMCs
MIP/GLARESHIELD
-ZOOMABLE IMAGE- With six High resolution LCD monitors, Landing Gear and all switches and annunciators working.
-
Full Metal construction
-
Driver for FSX / FS9 / X-Plane (Windows 32 or 64 bit)
-
1:1 Scale (real B737 measures)
-
Full and adjustable Backlight
-
All switches and annunciators are operative
-
MAIN PANEL DUs and Lower DU selector
-
Autopilot/Autothrottle indicators
-
Speed brake, Stab Out of Trim lights
-
Light test switch
-
PFD display
-
ND display
Master warning/caution lights, SIX pack with recall, system annunciators. All the functions are implemented thanks to dedicated driver (SIX pack requires Project Magenta PmSystems).
EFIS CPT and F/O side, all the functions are implemented (requires Project Magenta software), EFIS are connected directly to MCP with dedicated cable.
MCP Pro fully functioning with Project Magenta Software Include a solenoid (auto-off switch) for A/T disconnect. USB interface, full compatibility with Project Magenta
FULL METAL MOTORIZED THROTTLE FOR INTENSIVE USE
![FSC B737 TQ MOTOR PRO]()
-
Motors, manual motors control function, autothrottle with motorized feedback
-
Speed brake (spoilers) manual control and motorized deploy function from arm position
-
Working Trim wheels (manual trim function) and variable Feedback speed
-
Motorized Trim Indicator
-
Flaps
-
Reverse with mechanical lock
-
Parking brake with auto disengage
-
Engine cutoff with mechanical lock
-
Horn cutout
-
A/T Disengage
-
TO/GA
PEDESTAL
![FSC B737 PEDESTAL]()
Pedestal complete with x2 radio COM, x2 radio NAV, x2 ADF, x1 Transponder ready for use with IVAO e VATSIM. Rudder Trim Panel with display. Fully working audio panels.
-
Working Fire panel integrated with PmSystems and Pm Instructor
-
Double Radio COM e NAV panels (CAPTAIN and F/O sides), Cargo Fire and WX.
-
Adjustable Backlight, working rudder trim and LCD screen indicator.
-
Working Audio panels linked with Overhead Audio Panel
-
Double ADF and transponder ready for ONLINE use (VATSIM/IVAO)
-
Multipurpose Intercom device (Optional Telex)
ACTIVE CONTROL LOADING
- ZOOMABLE IMAGE -
We constantly work to improve further our Turnkey simulators with new features and developments, and now the Active Control Loading is finally available, installed on our simulators or separately as a KIT.
We have been developing the Active Control Loading in close cooperation with Project Magenta and it has been tuned and calibrated according to the precious feedback from professional airline pilots.
This system operate on the yokes by applying a dynamic force feedback on the Pitch and Bank channels, and an intuitive graphic user interface provides the possibility to set and adjust the different functions of the flight controls response.
![FSC B737 FLOORSTAND AND CONTROL LOADING TOTAL top rear]()
The new Active Control Loading System, now available.
Brushless motors and pistons with recirculating ball worm gears are used for a precise and smooth mechanism.
![FSC B737 FLOORSTAND AND CONTROL LOADING PITCH PISTON]()
The pitch actuator.
![FSC B737 FLOORSTAND AND CONTROL LOADING bank PISTON.JPG]()
The roll actuator.
![FSC B737 FLOORSTAND AND CONTROL LOADING PLC BOX]()
The electronics box.
A CAN-BUS communication provides a reliable interface between motors and server.
![FSC B737 FLOORSTAND AND CONTROL LOADING CONNECTIONS BOX]()
Connections are made with military-grade components.![FSC B737 FLOORSTAND AND CONTROL LOADING EMERGENCY]()
The system has an emergency stop button for your safety.
We take a great care in the realism of our simulators and the Active Control Loading is a key feature for an even more realistic and involving flight, making each flight a unique experience.
HARDWARE (COMPUTER)
![FSC AES B737 PC]()
![FSC AES B737 PC FRONT]()
Our Hardware is assembled with top level components for no-compromise performance and reliability.
-
Selected components for max reliability and performance
-
Extremely optimized Software and operating system
-
Near-zero maintenance
-
Equipped with RAID 10 system
-
PCs are mounted on rails for easy operations
Our System has been tested on XPLANE with 17920x1600 resolution (2560x1600 on 7 monitors), 4x antialiasing, 4x anisotropic filter, maximum texture resolution with our SIRX custom scenery, with a 60fps framerate.
INSTRUCTOR STATION TABLET
![FSC B737 TABLET INSTRUCTOR STATION]()
![FSC PROJECT MAGENTA LOGO]()
The Project Magenta Instructor Station has been developed with flexibility in mind. Failure Generation and Simulator Control are fully user definable. This software ties in seamlessly with the other products of the Project Magenta Software Suite.
-
Failures Simulation
-
Plane Instruments Visualization, 3D Visual, Dynamic Map
-
Worldwide Navaid Database
-
Direct Plane positioning and much more...
PACKAGING
![FSC COCKPIT B737 WOOD BOX DIMENSIONS]()
![FSC B737 PC RACKS WOOD BOX DIMENSIONS]()
FSC Flight Simulators are packed and shipped in sturdy and safe industrial-grade wood boxes, tropicalized if needed. This way you can be sure to receive your product exactly as we made it.
![FSC B737 COCKPIT PACKAGING PRO]()
