MTGS - Multi Type General-Aviation Simulator
FSC is pleased to present a new updated version of MTGS: the Hi-Level Training Educational Flight Simulator Desk.
FSC is one of the leading aircraft simulator training companies in the world. The FSC fleet features a variety of Training / Educational and Entertainment simulators fully built in the FSC factory in Italy thanks to the extreme professionalism and experience of FSC team of designers, mechanical, technical and electrical engineers.
FSC simulators are the most advanced in the market and utilize the latest in wide-screen visual system technology to deliver a realistic sensation of motion.
The MTGS “Multi Type General-Aviation Simulator” is a turnkey device ideal for familiarization with Glass Cockpit and IFR-VRF flights. Thought for Flight Schools and Aeronautic institutes, the FSC1000 Glass Cockpit replica, with its sturdy and configurable flight controls, allows great versatility and customization to simulate different aircrafts, from single up to four engines.
CHARACTERISTICS
-
Glass Cockpit and VFR Turnkey System
-
Sturdy and configurable Flight Controls
-
Full Metal Structure
-
Cockpit: FSC1000 with analog gauges
-
One to Four Engines Simulation
-
Visual System: 3 Monitor 2560X1600 WQXGA 16:10 LCD
-
Visual Resolution: Global 7.680 x 4.800 Pixels
-
Extremely detailed custom Sceneries, ideal for VFR
-
Instructor’s Operating Station
-
Wireless Tablet Instructor’s Interface
-
Updatable (for every cycle) worldwide through Navigraph navigation database
-
Obstacle icons, terrain, and waypoints on the map page
-
VPATH waypoint Navigation
-
iPad Connectivity for use with ForeFlight & other aviation apps (not included)
-
Simulated emergency and instrument failures
-
Weather engine fully configurable from iPad
-
Synthetic Vision Technology (SVT), Terrain (TAWS-C), Traffic (TCAS) and FlightCharts
-
Advanced BOSE Audio System
-
High Quality adjustable rudder pedals
-
High Quality Comfortable full adjustable Pilot’s Seat
Perfect for Flight Schools and Aeronautic Institutes
The Simulator is heavy-duty, affordable and designed for highly efficient and reliable 24/7 operation with near-zero maintenance, optimized to be very user-friendly, featuring easy sturt-up and shutdown.
Visual System & VFR Flights
The MTGS comes with 3 x 30’’ monitors 2560X1600 WQXGA 16:10 LCD visual system, which with software and hardware optimization can reach 60 fps. Custom built computers, dedicated and optimized specifically for the simulation, grant a smooth flight and scenery flow.
Available both in Prepar3D and XPlane versions.
FSC 1000 GLASS COCKPIT
FSC1000 is an integrated flight instrument system composed of two display units, one serving as a primary flight display, and one as a multi-function display. Manufactured by FSC, it serves as a replacement for most conventional flight instruments and avionics.
The FSC1000 is designed as a so-called HID Device, so you do not need any low level driver software. The FSC1000 system consists of several integrated components which sample and exchange data or display information to the pilot.
Once you have trained with FSC1000 Glass Cockpit, you’ll feel at home only in a real plane cockpit.

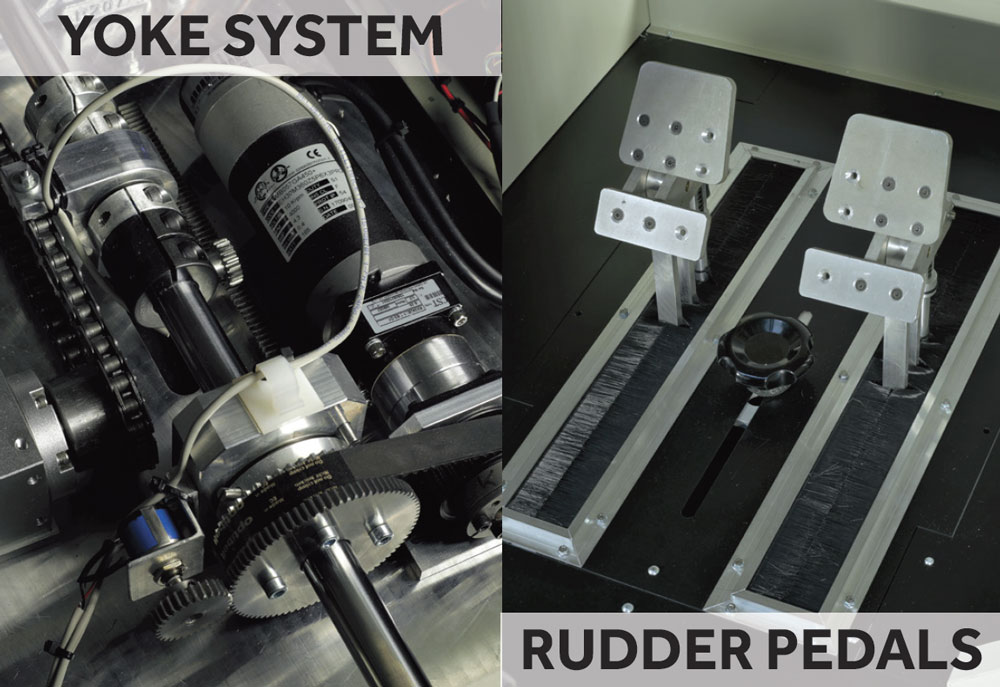

Dynamic Control Loading
The main flight controls (Yoke and Rudder Pedals) feature the Dynamic Control Loading technology, a system applying a variable resistance to flight controls, and, when used with autopilot, moves the controls themselves. Through precise and solid electric motors provide a realistic feedback of the force on the flight controls, which varies according to the air pressure exerted on the aircraft surfaces. This system also recreates the reversible movement of the aerodynamic surfaces. All the vibrations of the aircraft are managed and simulated.
FSC RUDDER PEDALS
MTGS is a simulator designed for easily upgrading in some of its main flight controls. For example, the FSC Rudder Pedals are available in two different configurations: Passive Version with hydraulic damper system or in Control Loading Version. In this updated version the
control forces and control travel broadly correspond to that of the replicated aeroplane and also the control force changes due to an increase/decrease in aircraft speed. The FSC Rudder Pedals have a powder coated solid aluminium base with a reinforced steel tiller bar design. Our rudder pedals are equipped with potentiometers for proportional toe braking.
AOP - ADVANCED OPERATIONAL PANEL
MTGS feature a convenient touch panel that provides information and allows immediate access to the main functions of the simulator itself. Running a proprietary software developed by FSC, it provides a simple and intuitive graphical interface, conveniently divided into sections. Several functions are available, from the audio environment volume control to the choice of livery and the instantaneous position on the map, the airports, and a comfortable maintenance section that allows you to restart the computer together or individually with extreme rapidity.
INTERCHANGEABLE THROTTLES
MTGS allows flexibility and a more efficient training through the opportunity to adapt and change the TQ to emulate many different aircrafts, up to four engines. It allows:
- Simple switching to different throttles with a quick release system
- Over 20 types available
* All the different THROTTLEs are made by Precision Flight Controls Company
DIMENSIONS
