B737 PRO rudder pedals upfloor - FO side

B737NG PRO rudder pedals upfloor - FO side

PRO rudder pedals for Boeing 737 style Flight Simulators. Above-floor design and linkable to CPT side through the included metal rod.

NOTE: INTENDED TO WORK ONLY AS THE SECOND UNIT LINKED TO CAPTAIN SIDE SKU 200330. NOT AN AUTONOMOUS UNIT. METAL MECHANICAL AND ELECTRICAL LINKING ROD INCLUDED. CIRCUIT BREAKERS ON THE ADJUSTMENT PANEL ARE DUMMY, NON FUNCTIONAL ONES.

MAIN FEATURES:

Extremely sturdy and stable
Realistic forces feeling
No plastic parts
Adjustable with chain mechanism

Buy New

in Stock 1

737NG-RUD-UPFLO/1FO/LIN/VAR

SKU: 200332

€ 2.890,00

(22% VAT EXCLUDED)

Request info arrows down

Request info

Name and Surname * : City * : Country * : E-Mail * : Telephone : Message * : Send

the field with * are required

Documents and Technical files

Depliant 5840 Kb
FSC 737NG-MIP/FLOORSTAND/YOKE/RUDDER TAVOLE MISURE SPAZI 2019/12
Depliant 55924 Kb
FSC 737NG-RUDDER-UPFLO/1FO/LIN/VAR PHOTO-HR-AMADEI 2019/07
English manual 2051 Kb
FSC B737NG-PRO RUDDER PREP.INTEGRATION CTRL LOADING (SKU382466)

CLICK TO VIEW AND DOWNLOAD

B737NG rudder pedals First Officer side for CPT side linking

The long term experience with pilots, but also with inexperienced audiences, in the intensive use of flight simulators, led us to engineer and produce the new version of the FSC B737NG rudder pedals, captain side and first officer side.

The first characteristic of this construction is in fact the robustness: the forces applied to the flight controls of the pedals can be very high, and the stress for the lever systems is certainly considerable. Given the high thrust capacity of the lower limbs, which can result in hundreds of kilos of force applied, we have created a rudder pedals system built with high quality materials, used in a project in which every diameter and connection between mechanical parts and levers, is designed to withstand any type of load possible.

The system so engineered is for this reason also very stable and precise: thanks to the rigidity of the assembly, no backlash between the parts or mechanical deformation is possible. This level of mechanical solidity and precision, combined with the use of high-resolution potentiometers, has made it possible to obtain a flight control that provides a very accurate response in the simulated aircraft.

FSC B737NG UPFLOOR RUDDER PEDALS FO FRONT

The new FSC B737NG rudder pedals (first official side) - (1)

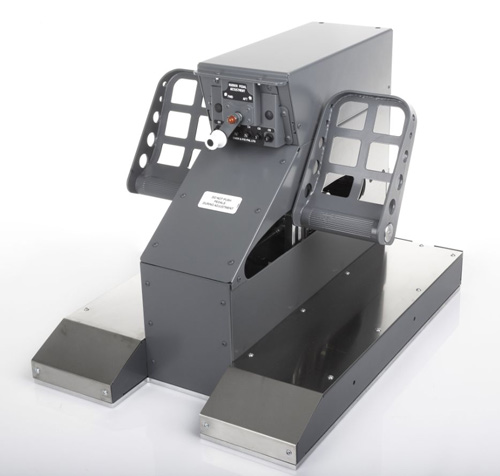

FSC B737NG UPFLOOR RUDDER PEDALS CPT 34 2 MID POSITION

The new FSC B737NG rudder pedals (first official side) - (2)

FSC B737NG UPFLOOR RUDDER PEDALS FO ADJUSTMENT CLOSE UP

Pedals distance adjustment and dummy circuit breakers

FSC B737NG UPFLOOR RUDDER PEDALS FO SIDE AFT POSITION

Distance adjustment -75mm

FSC B737NG UPFLOOR RUDDER PEDALS FO SIDE FWD POSITION

Distance adjustment +75mm

FSC B737NG UPFLOOR RUDDER PEDALS CPT REAR

Back of pedals with electrical and mechanical connections

FSC B737NG UPFLOOR RUDDER PEDALS FO connection

Back of pedals with data link

The entire mechanism is also driven on a carriage, which is also absolutely rigid and free of play, which allows, together with the extremely precise and stable chain transmission, a safe adjustment of the distance between the pedalboard and the pilot.
The damping obtained through a system of hydraulic springs and pistons, guarantees a constant fluidity and an almost perfect response, without compromising the correct return to zero point.

The eventual connection between the rudder pedals on the captain's and first officer's side is made by splined shafts and a very strong articulated bar. In addition, the mechanisms are designed to work in pairs without changing the resulting load compared to the single use.

The new rudder pedals guarantee a response equal to the originals and exceptional reliability over time.
