B737NG MCP Panel USB

Mode Control Panel MCP for Boeing 737NG Style Flight Simulator Systems. USB version with aux connection, backlight and long-life precision Encoders and Buttons.

MAIN FEATURES:

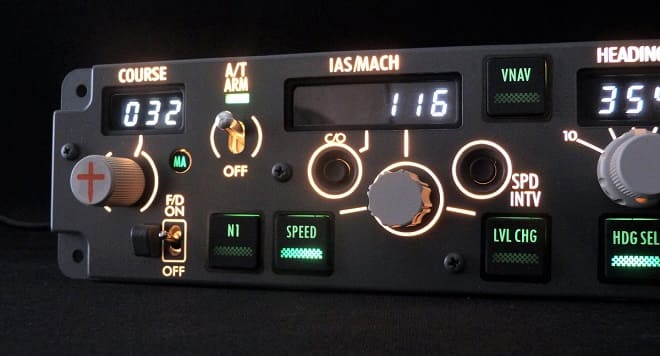

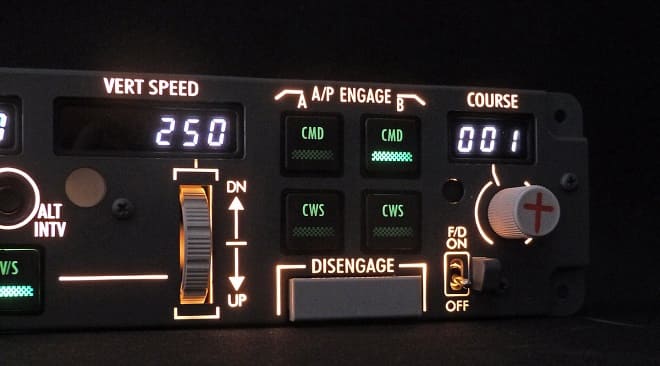

Warm white high resolution backlighting frontplate.

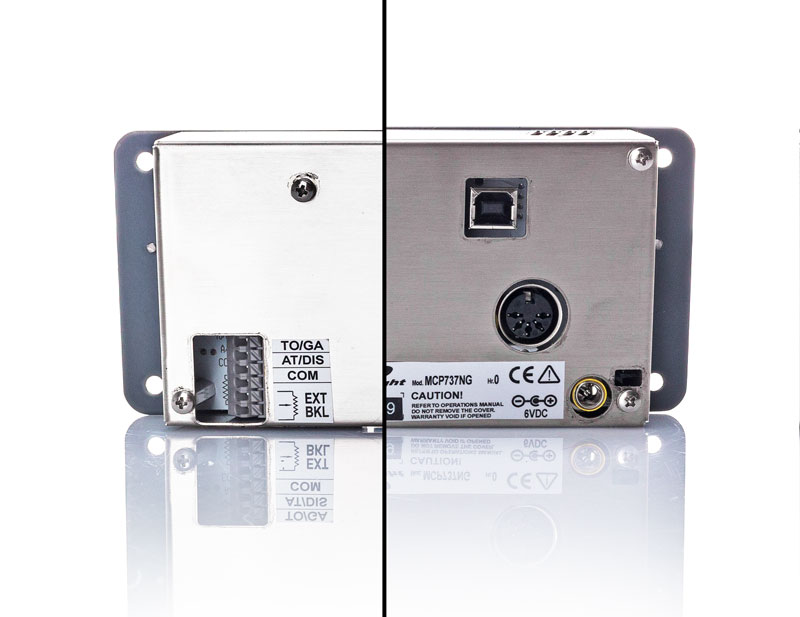

DIN 5 pole socket for plug&play CPflight modules interface.
Green legend backlit pushbuttons.
Displays: Altitude, Vertical Speed, Heading, Speed, Left Course and Right Course.
Display characteristics: White LED 7 segments. Digit height: 0,3” (7,6mm)
USB cable and 6Vdc 1A power supply adapter provided
Digital long life encoders.
Knobs: powder-coated aluminum (with symbols on course knobs).
BANK ANGLE limit selector (10°, 15°, 20°, 25°, 30°).
Electromagnetic disengage Auto Throttle ARM switch with Green LED indication.
Toggle switches for Left and Right Flight Director with “MA” Green LED indication.
Flight director switches guard.
C/O, Speed and Alt Intervention buttons.
External or internal backlight brightness regulation.
6 bit Flash microcontroller.

Buy New

in Stock 1

737NG-MCP737NG

SKU: 200420

€ 840,00

(22% VAT EXCLUDED)

Request info arrows down

Request info

Name and Surname * : City * : Country * : E-Mail * : Telephone : Message * : Send

the field with * are required

Documents and Technical files

English manual 718 Kb
CP FLIGHT MCP737NG USER MANUAL

B737 MCP737NG with USB connection

MCP737NG is a full scale replica of the Boeing 737NG Mode Control Panel, look and functionality are reproduced with high details.

MCP737NG is equipped with high quality level components: high reliability encoders, autothrottle ARM switch with electromagnetic disengage and bank selector knob gives a high fidelity performances and a never seen realism.
