Main Instrument Panel for Boeing 737NG style Simulators.
High quality Gas Struts, High quality potentiometers, Brake pedals stop, and all metal gears. Built to last
System assembled and tested in FSC laboratories with the assistance of 737 pilots
Adjustable white LED backlighting on AFDS Flood Lights, Background Light and all other panels, with separate area like the real one
Every single button, switch, lever and mechanism works to simulate the original
Made of aluminum using high quality electrical/electronic materials
Designed by studying the dimensions of the original components

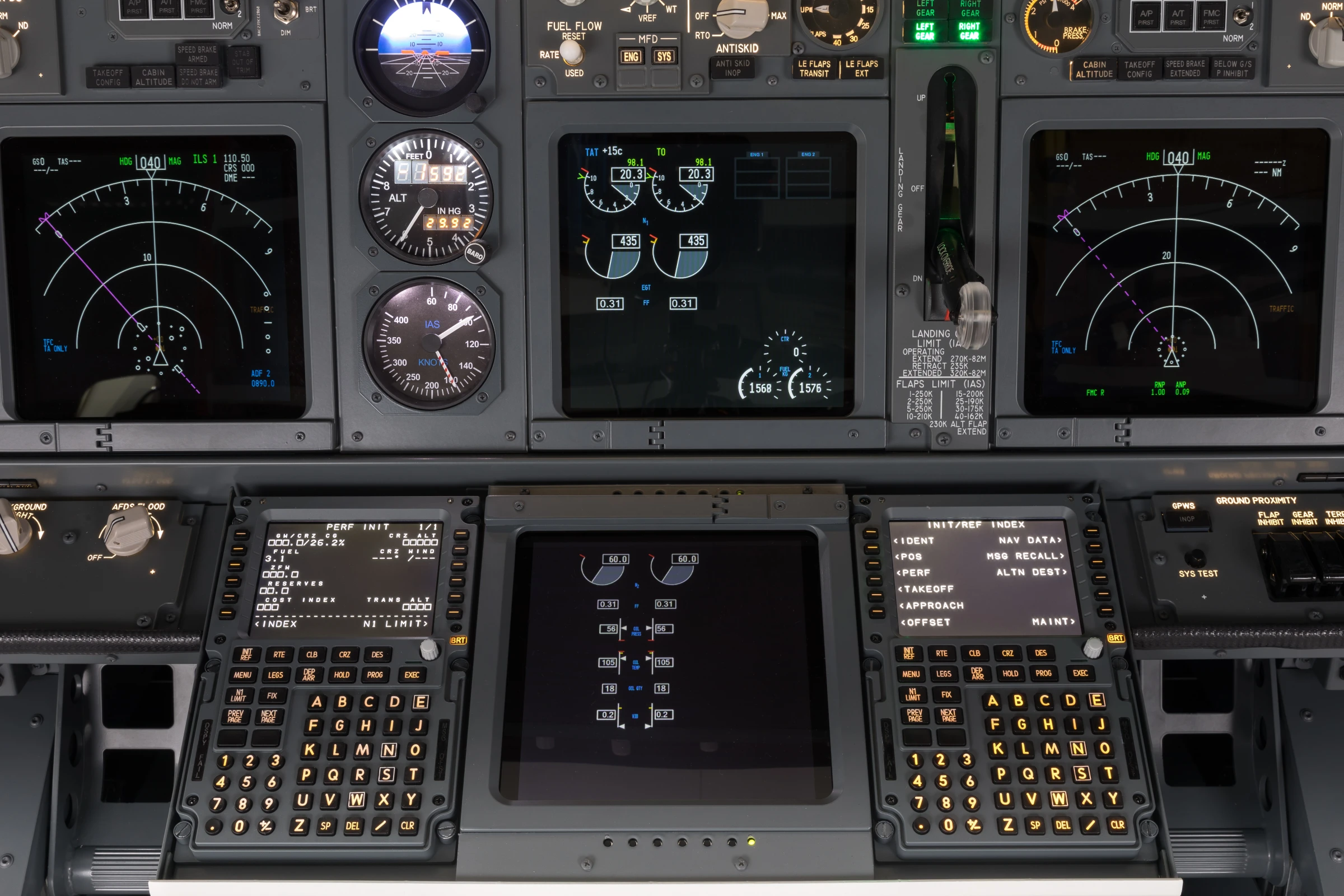

| Captain and First Officer CDUs included |
MIP equipped with 2 CDUs with IP connection, designed and produced by FSC team |
|
|---|---|---|
| Sound System Included |
n.2 Internal BOSE speakers and full cabling for external sound system |
|
| High Quality landing gear handle |
Full metal gear lever made by FSC. The landing gear panel is included and is equipped with annunciators |
|
| Ready to be integrated in a full simulator |
Wiring and connections that allow perfect integration with components of a turnkey cockpit |
|
| High resolution LCD IPS monitors |
Including dedicated, high-resolution IPS LCD monitors with wide viewing angle |
|

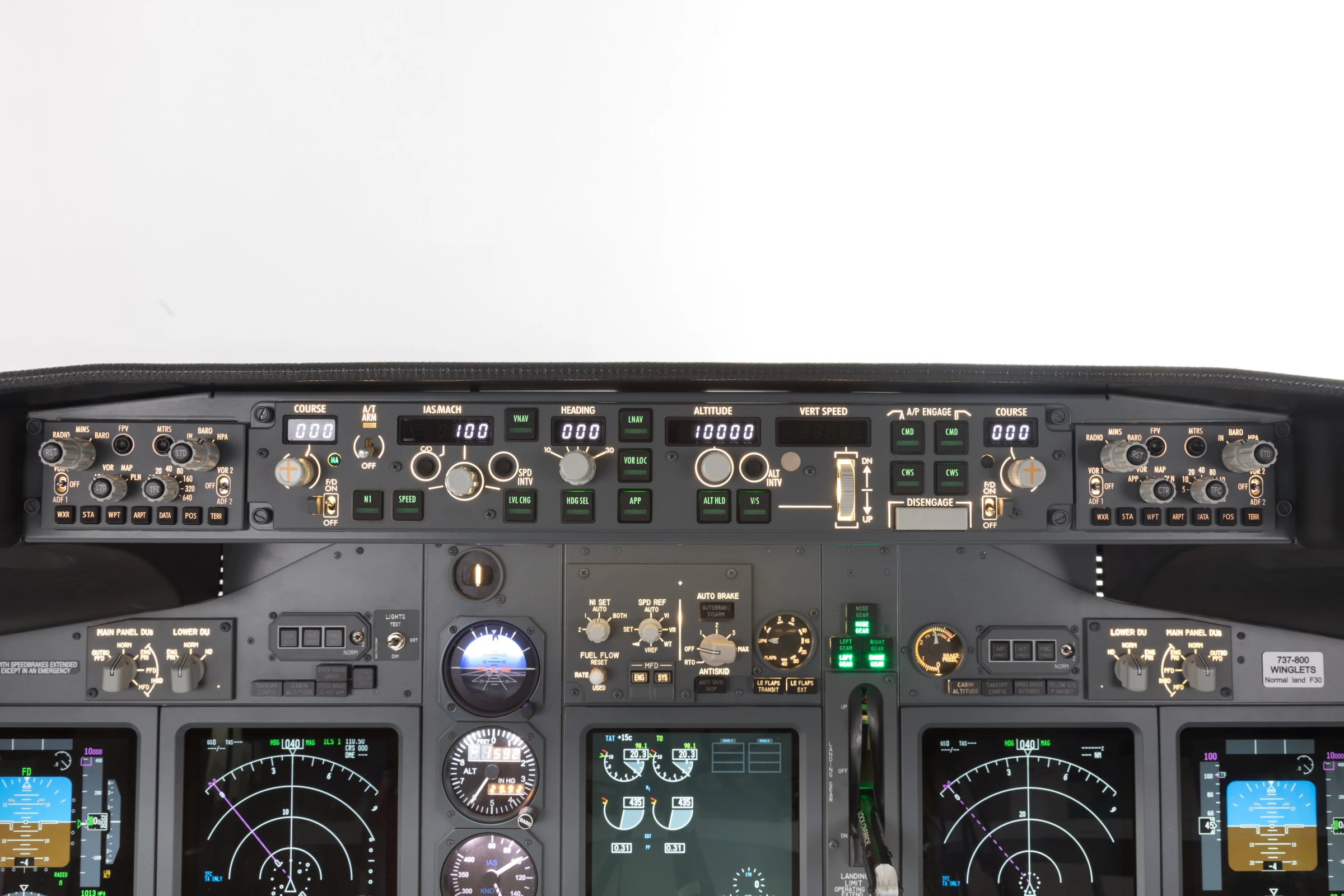

| MCP PRO and 2x EFIS included |
LAN connected MCP |
|
| Flight Illusion Gauges available in different options |
All Gauges Masks and the control Board GSA55 are connected inside MIP |
| Power AC 110-240V required |
Multi-voltage power supply (no change necessary) from 110 to 240V AC |
|
|---|---|---|
| USB & LAN connection |
With internal USB and LAN HUBs |
|

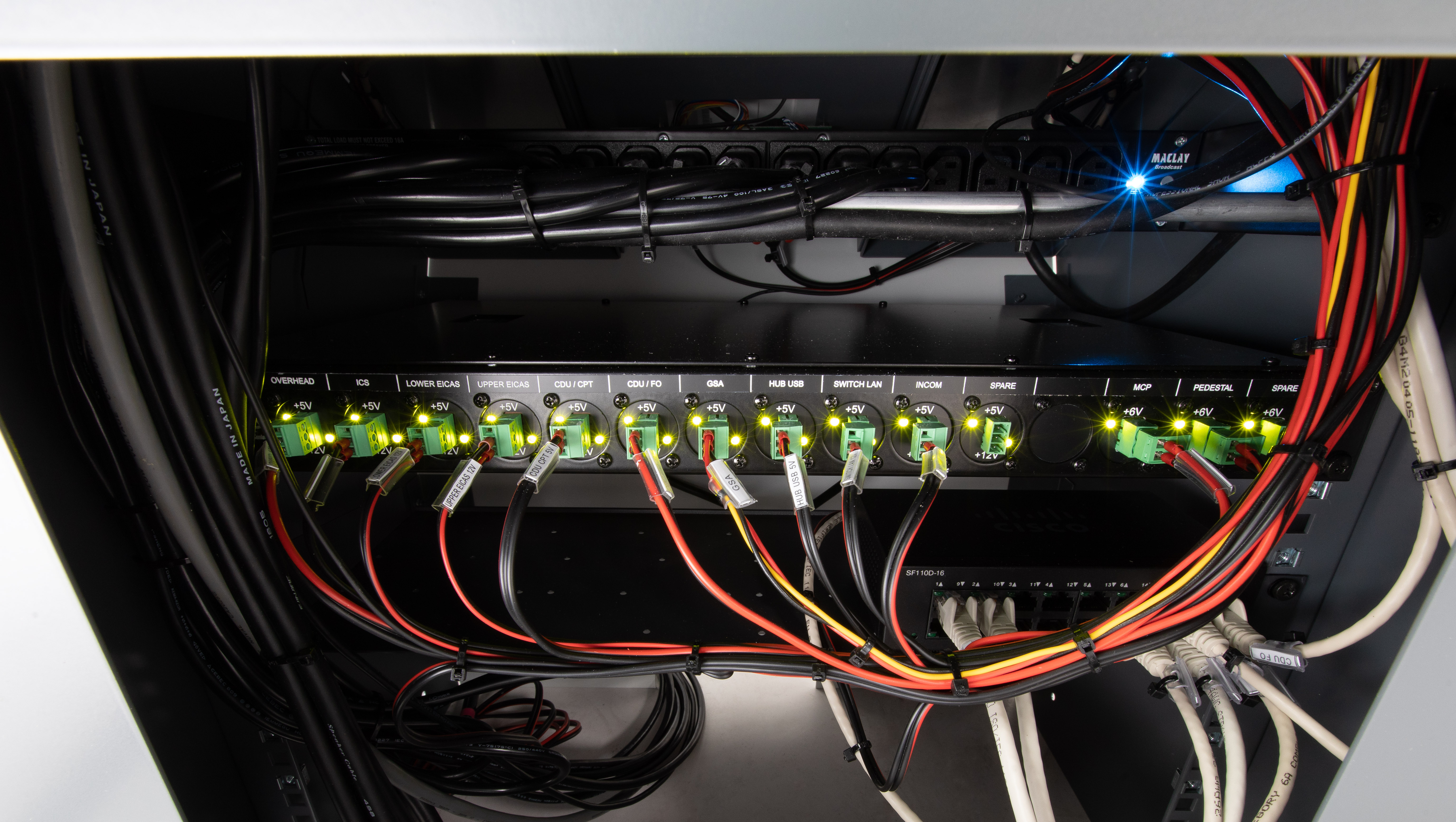

| High quality redundant PSU |
5V, 12V, with breakers and distribution panel |
|
| Real Plug & Play 737 MIP |
Just connect the VGA, USB and LAN connections and You're done |
|
| Sixpack annunciators and Fire/Caution Warning Lights |
High quality function and appearance faithful to the original |
|
| CE electrical switch |
with lifesaver, thermal-magnetic circuit breaker |
|
| Boeing style gray painted |
RAL 7011, Professional anti-corrosion coating |

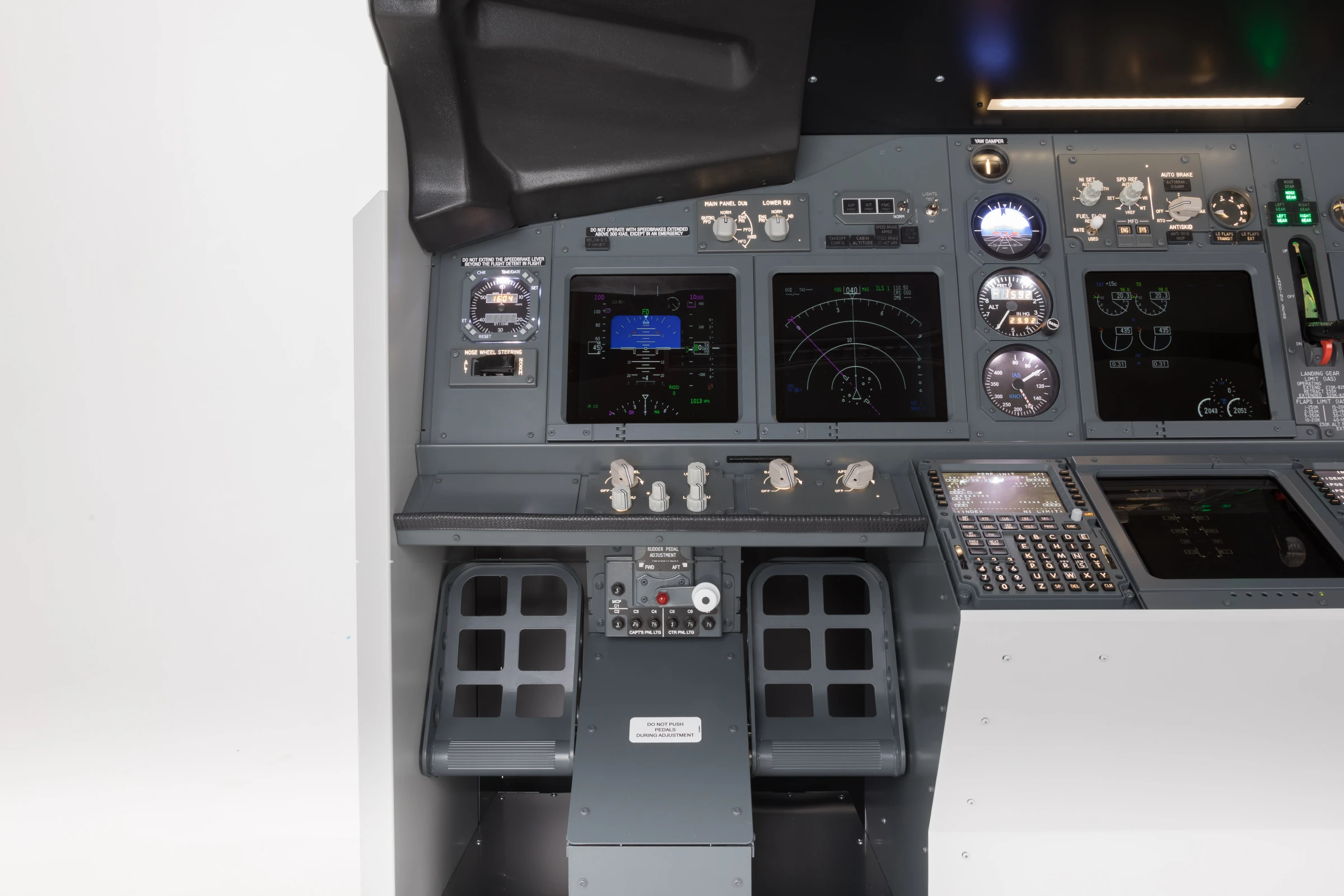

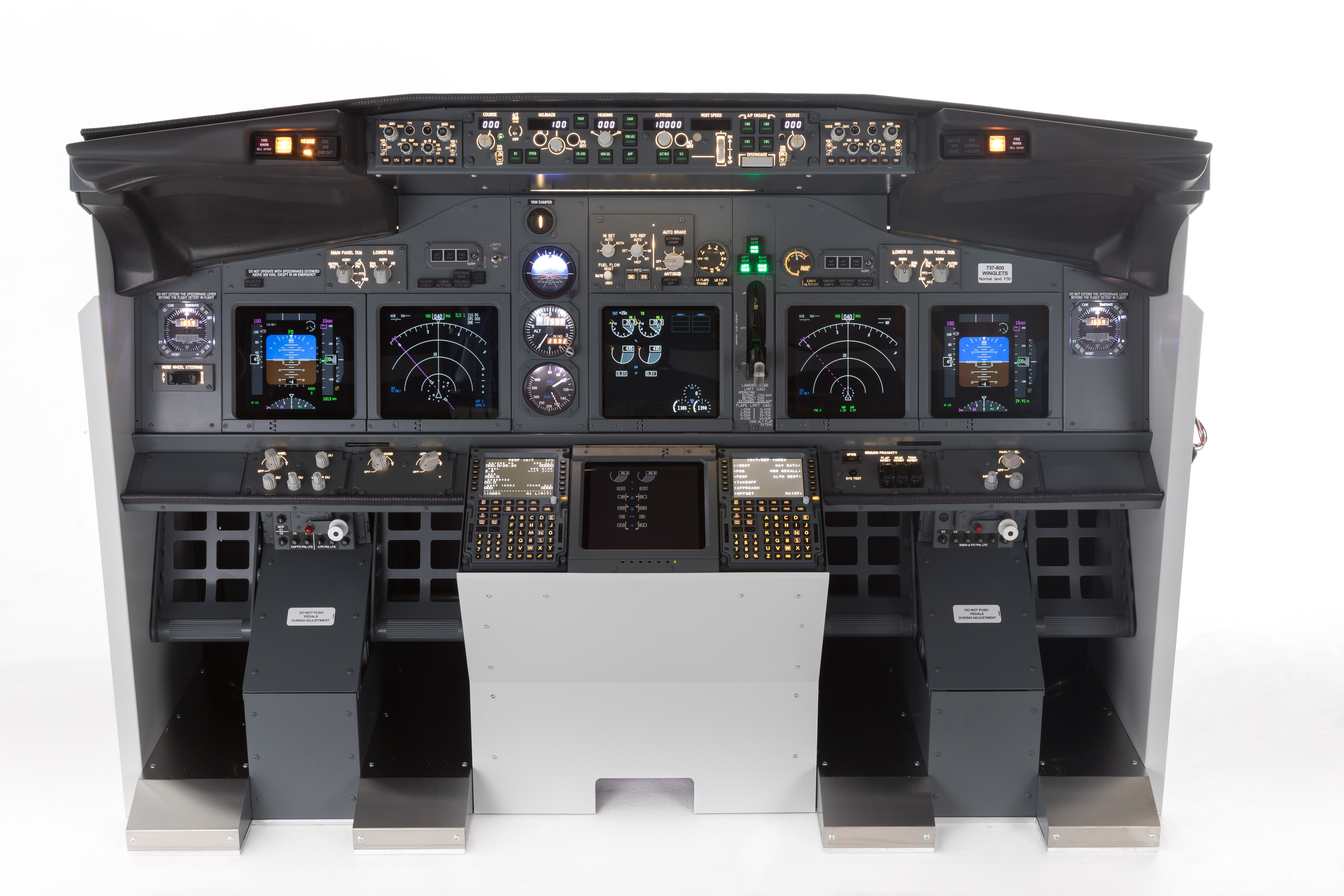

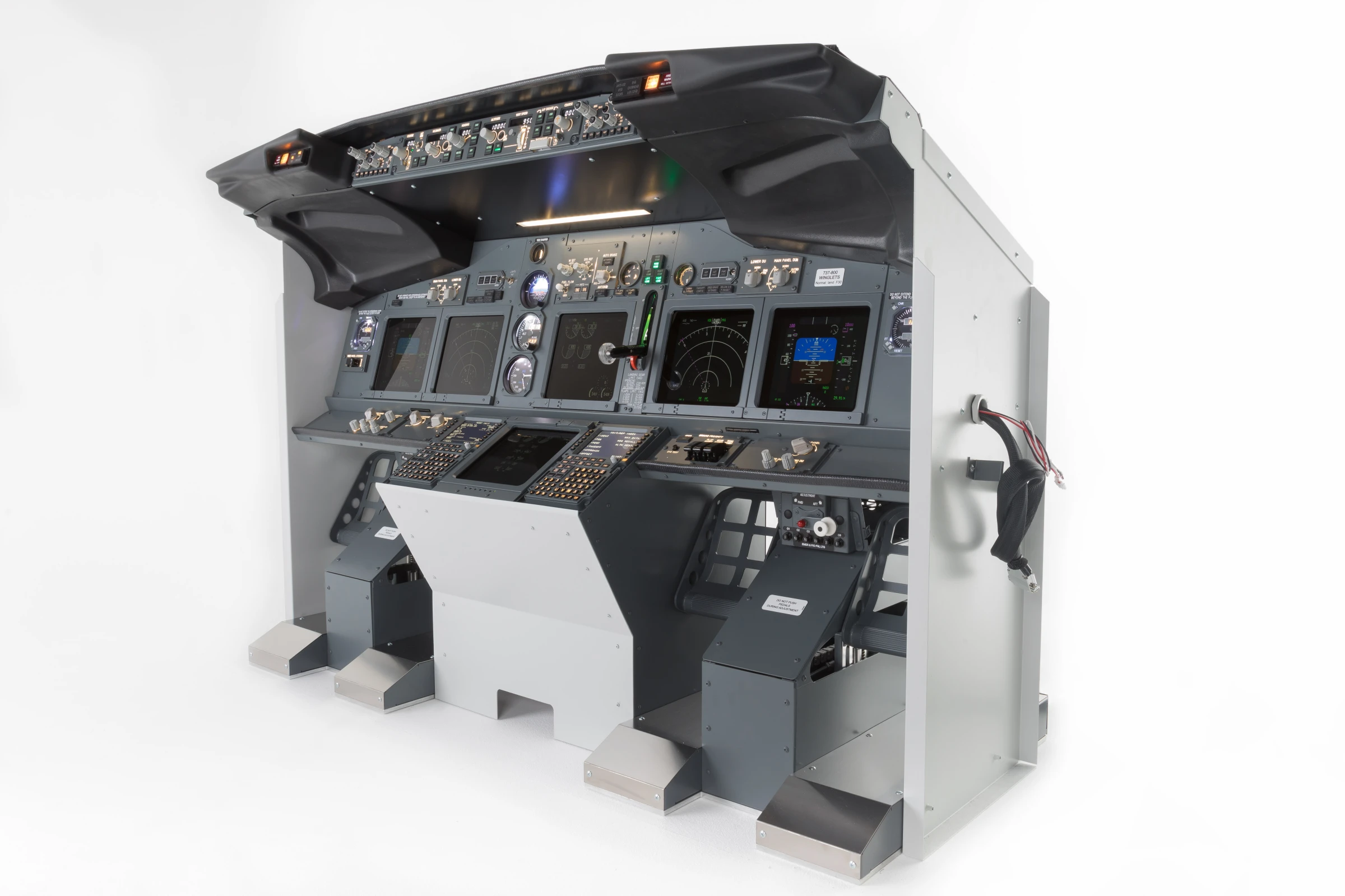

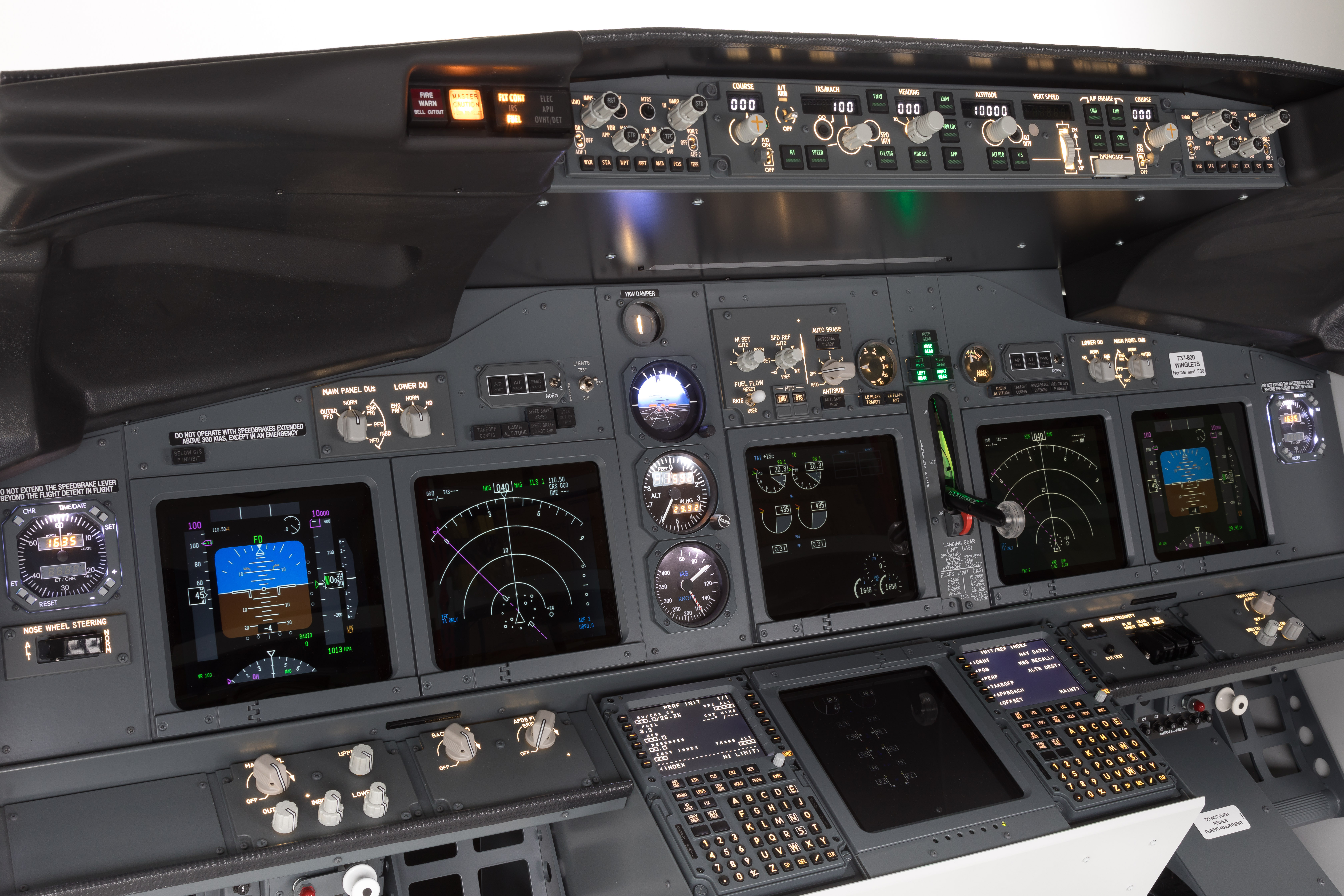

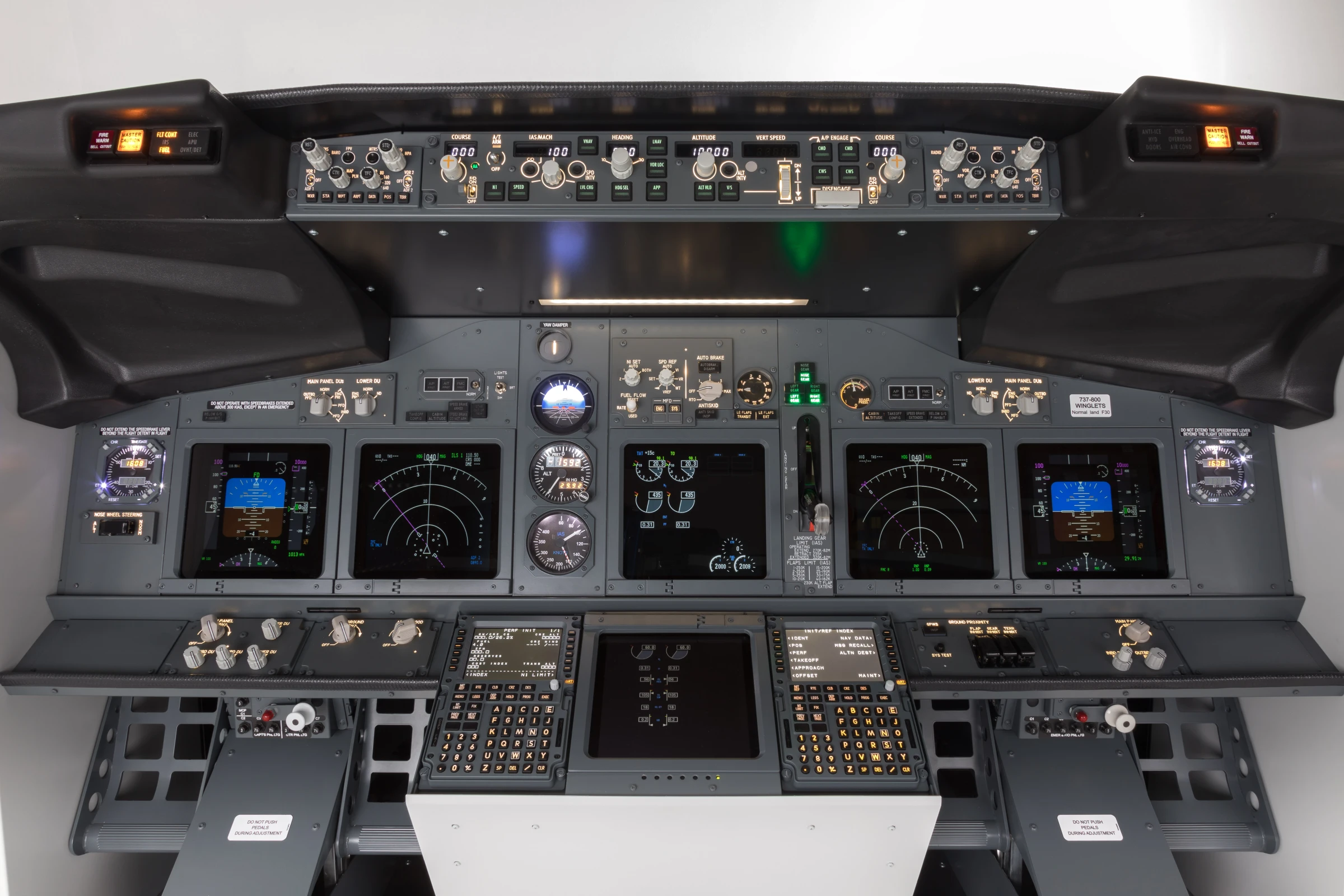

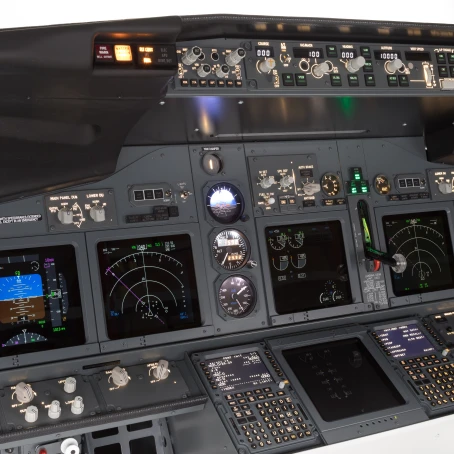

Main view with all the working components that are included.
Pedals distance adjustment and dummy circuit breakers.

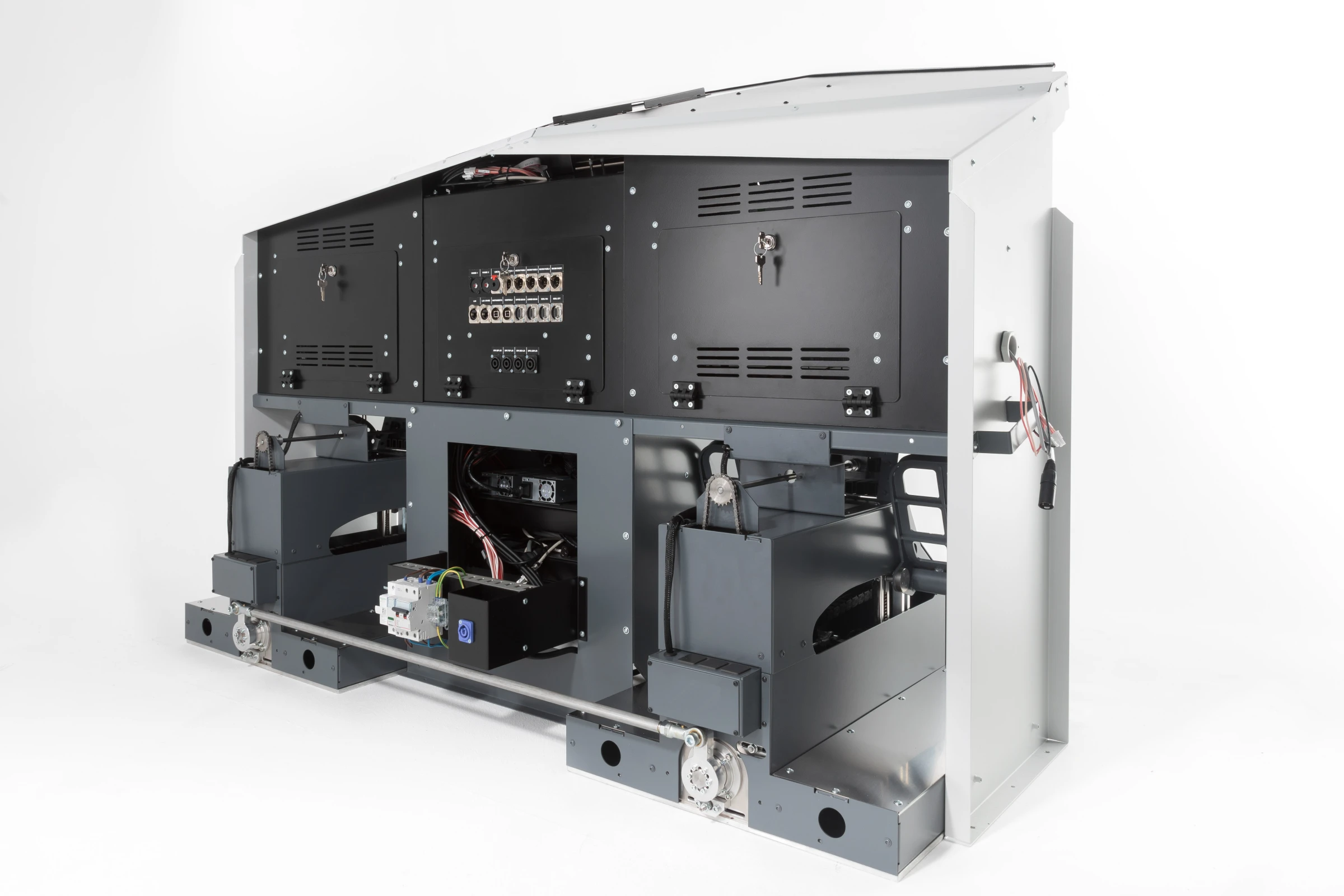

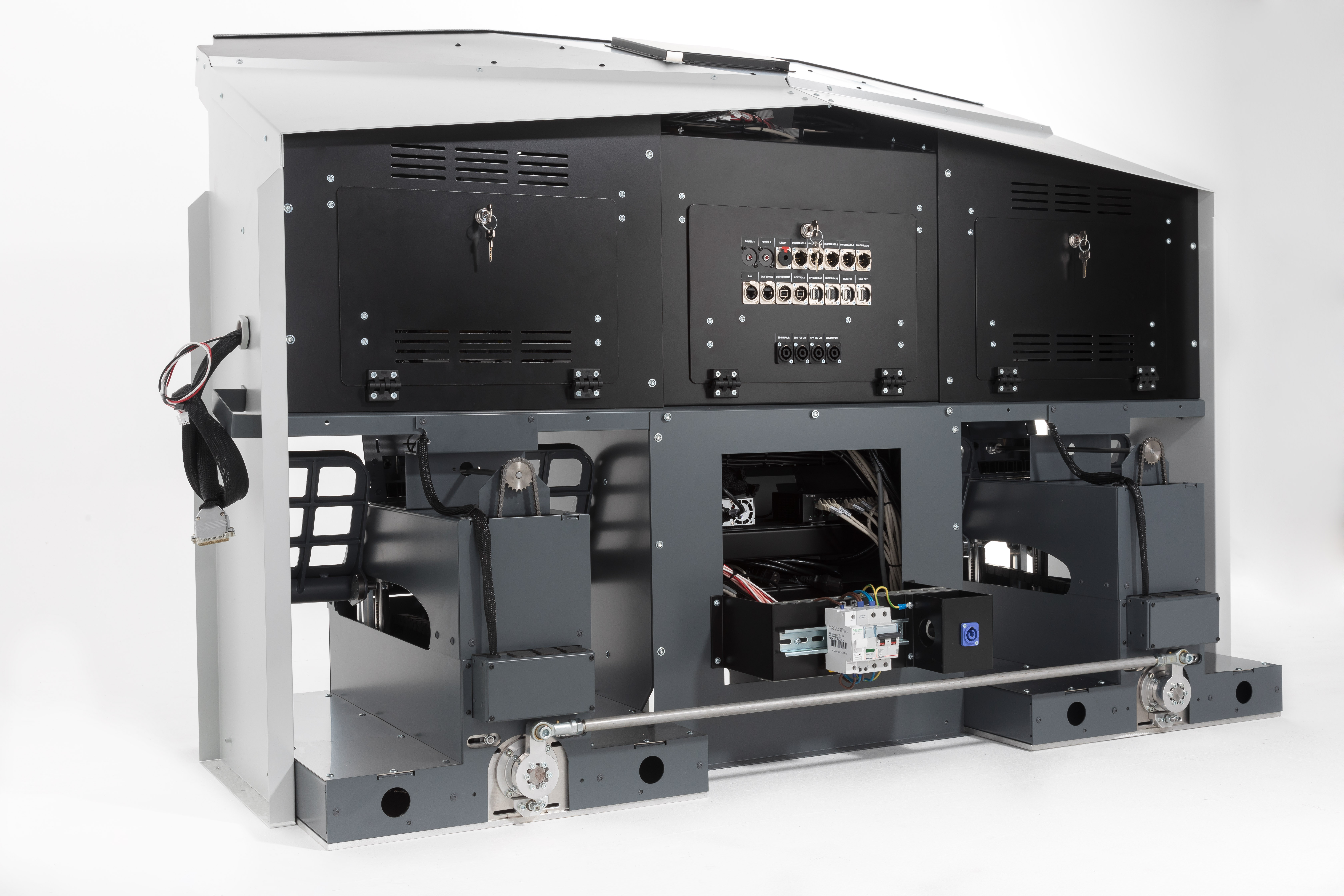

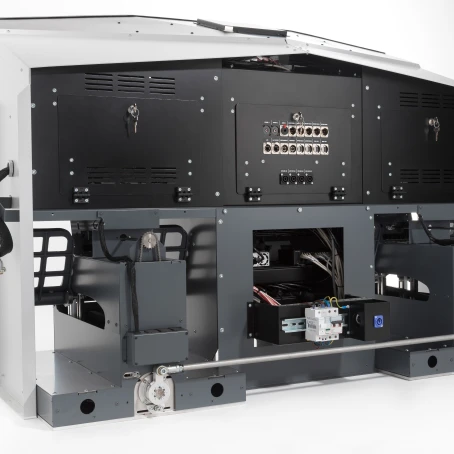

Mechanism that allows pilots to have the synchronization of the two rudders.

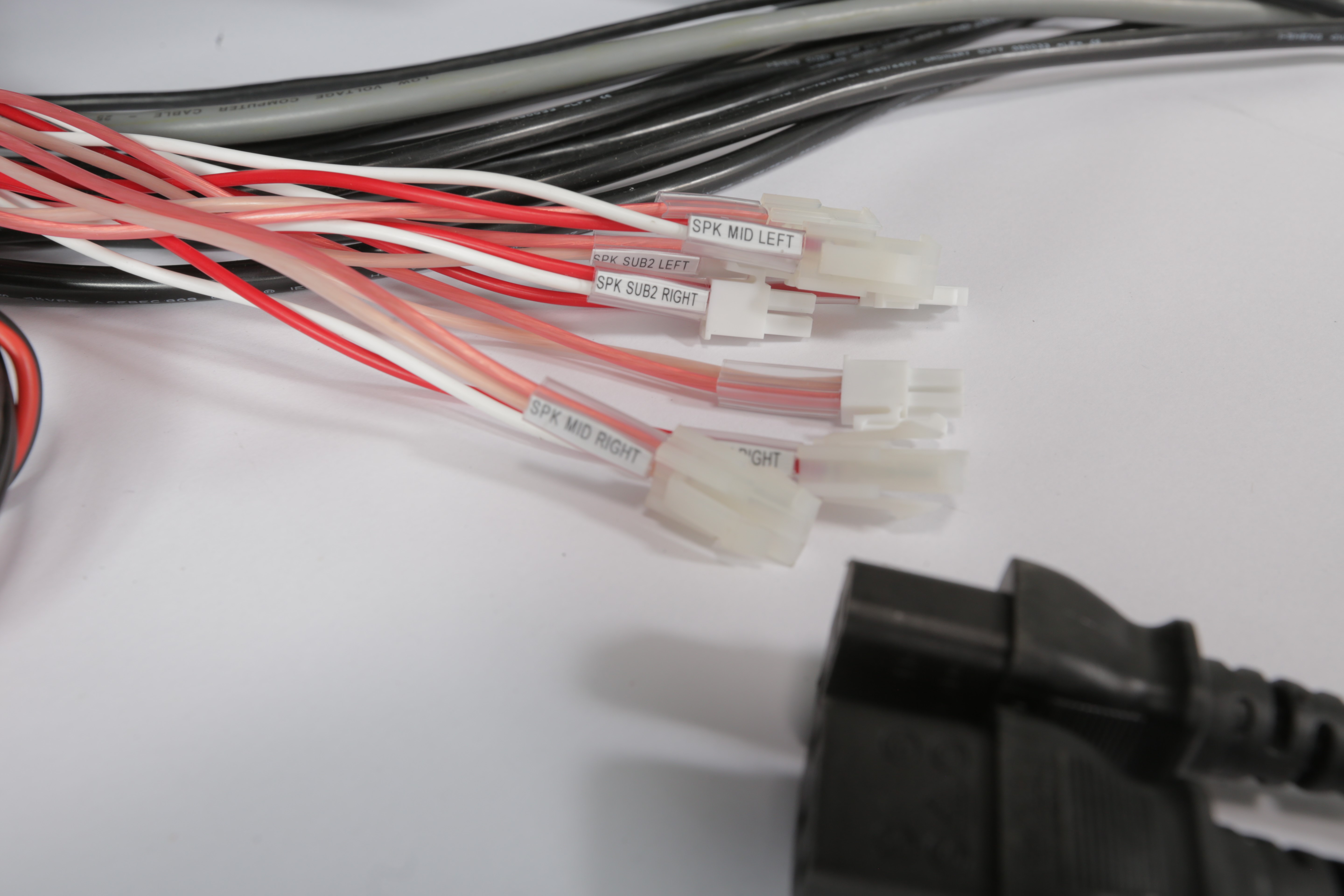

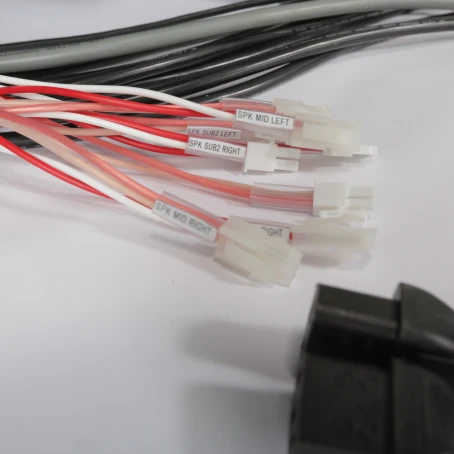

FSC provides wiring for 8 speakers and 2 subwoofers.

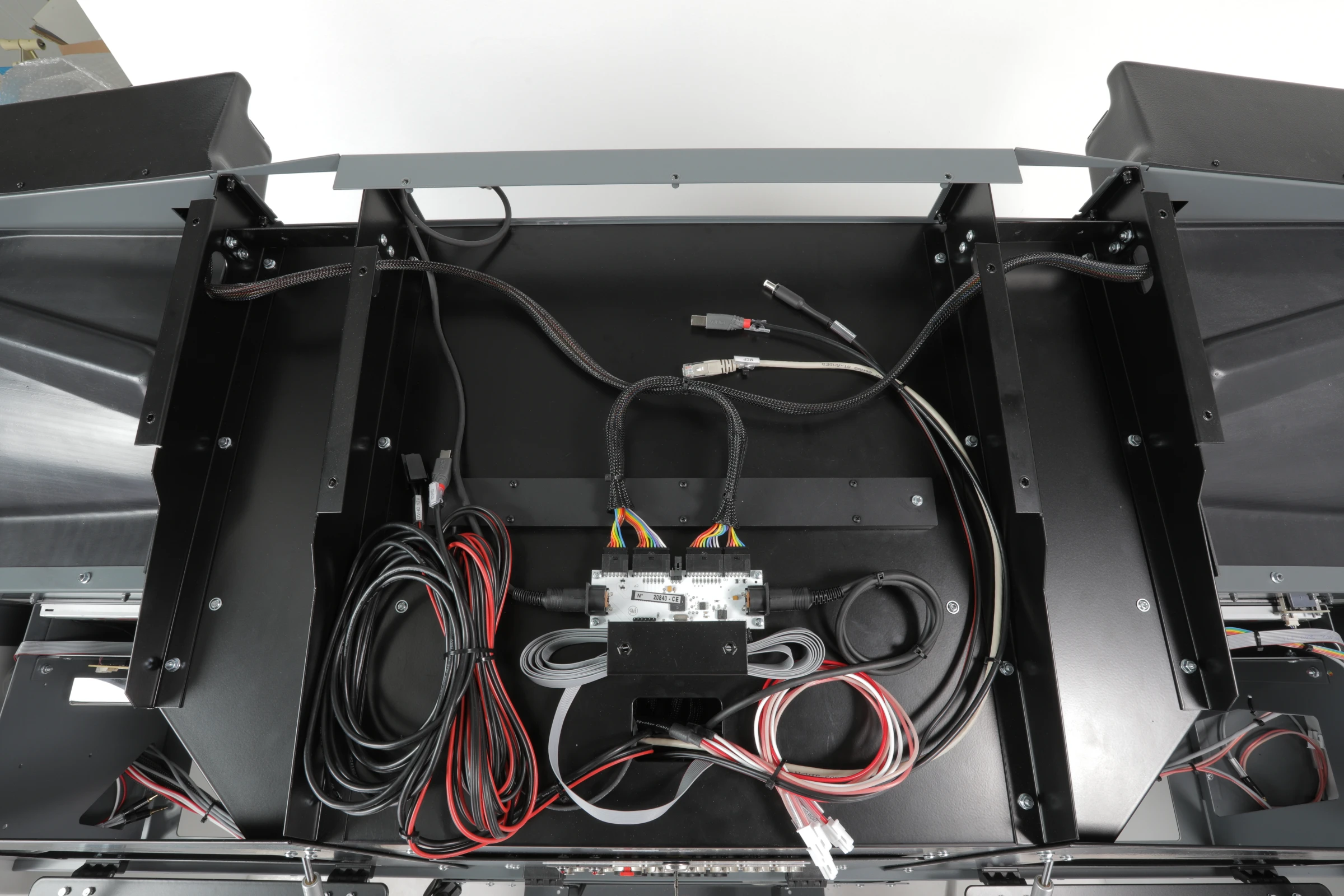

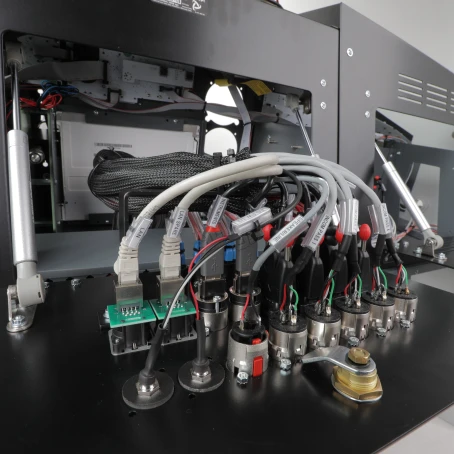

Neat, precise and tidy wiring, which allows easy inspection.

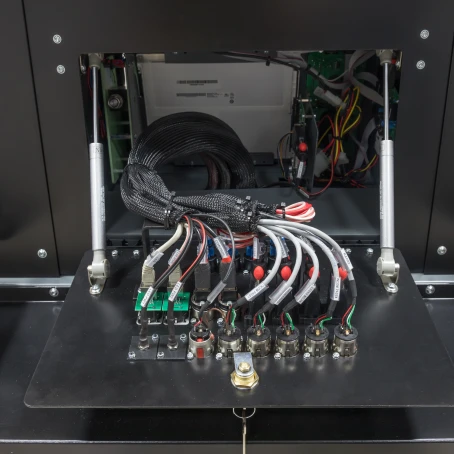

LAN x2, USB x2, VGA x4, intercom x5, audio line in, audio in x8.

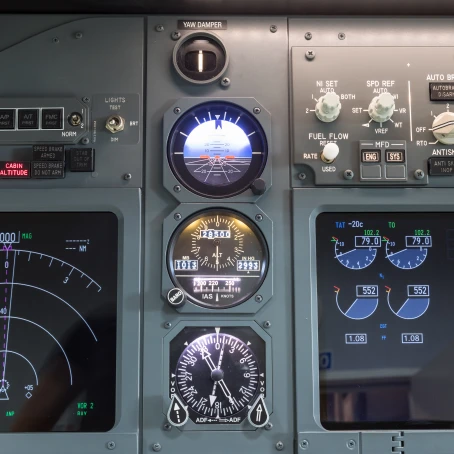

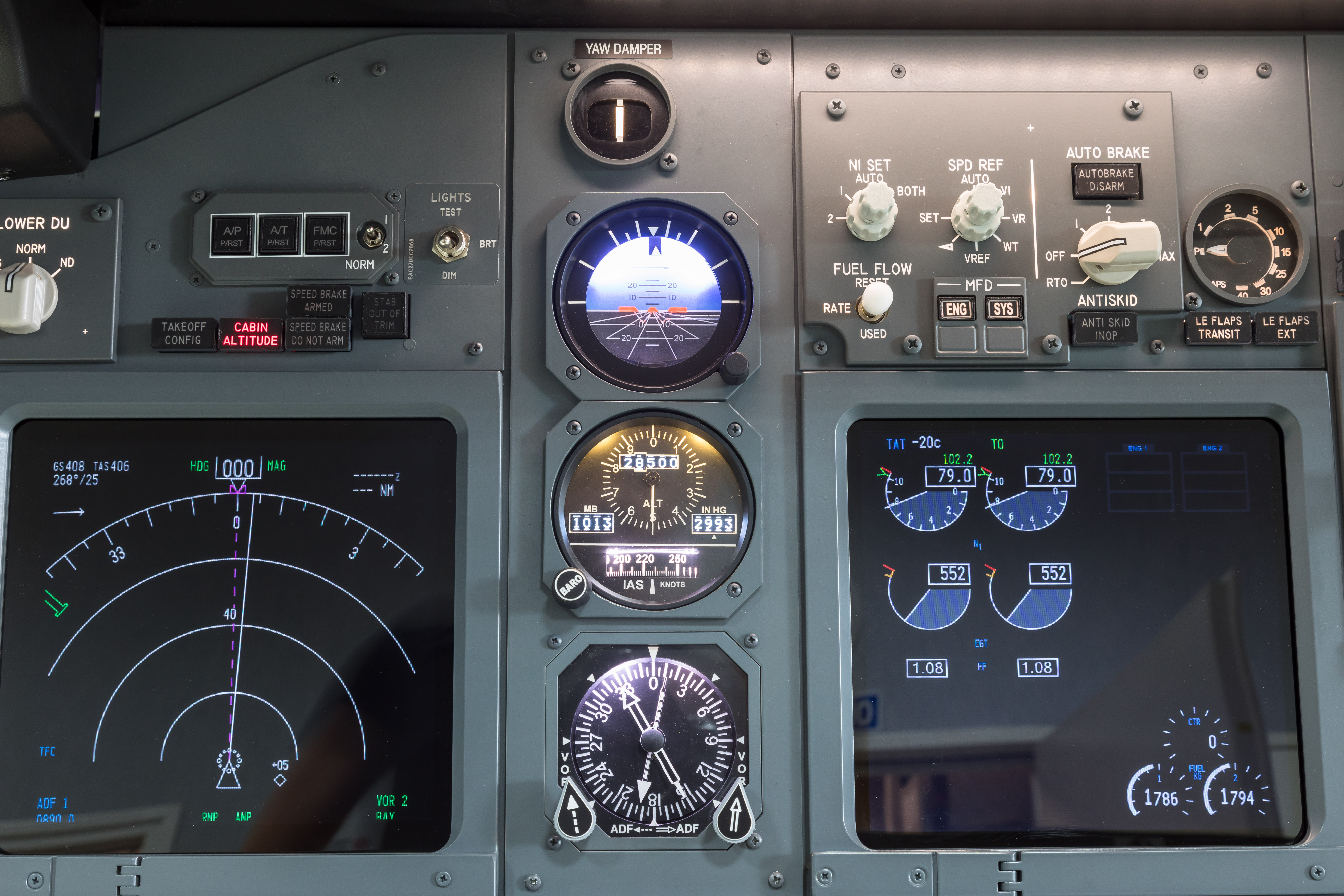

Attitude indicator, Combined altimeter and airspeed indicator and RMI.
It has an aesthetic function, it serves to protect the cabin from visual light.
Sturdy aluminum construction and mechanism, adjustable in DN, UP, OFF.

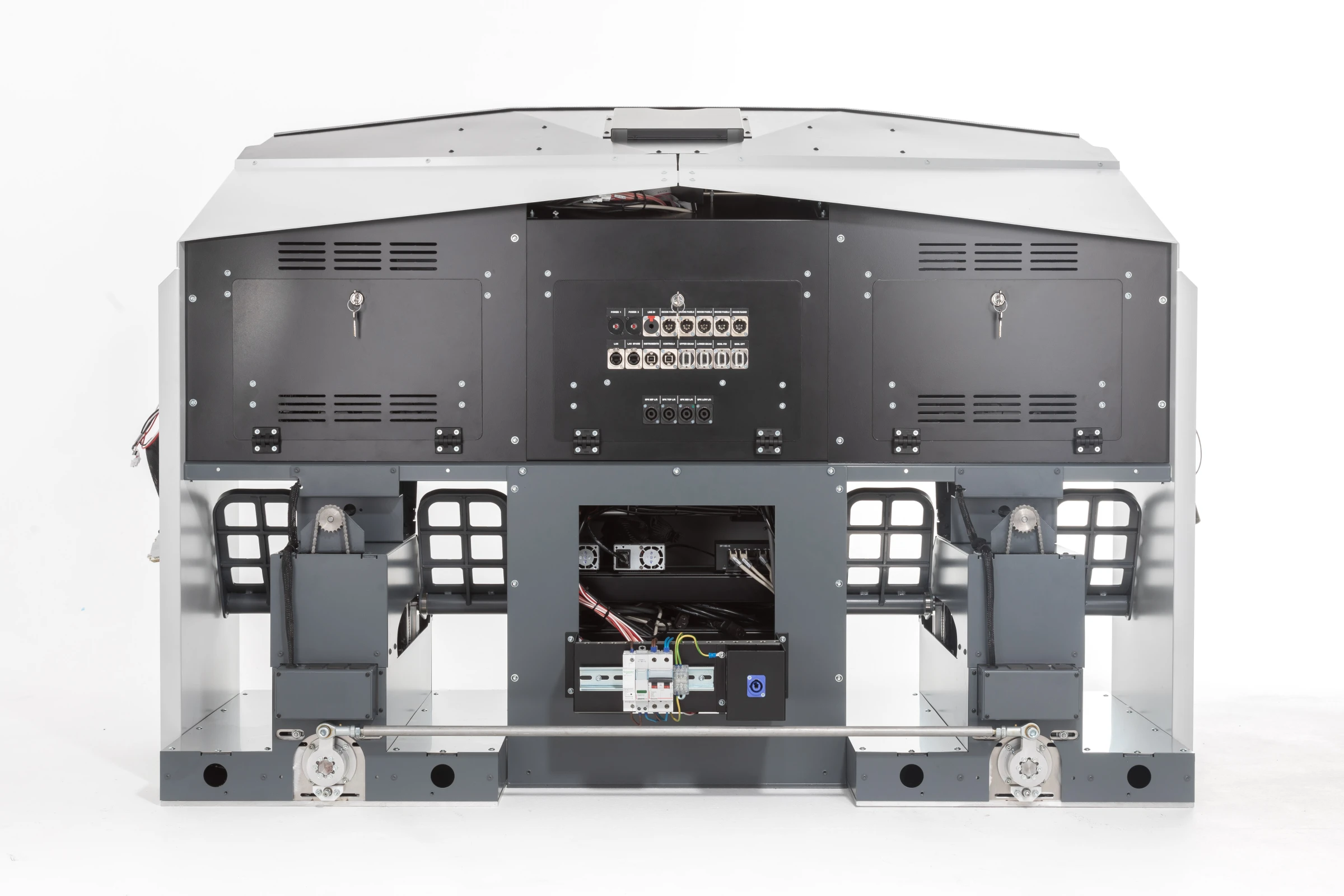

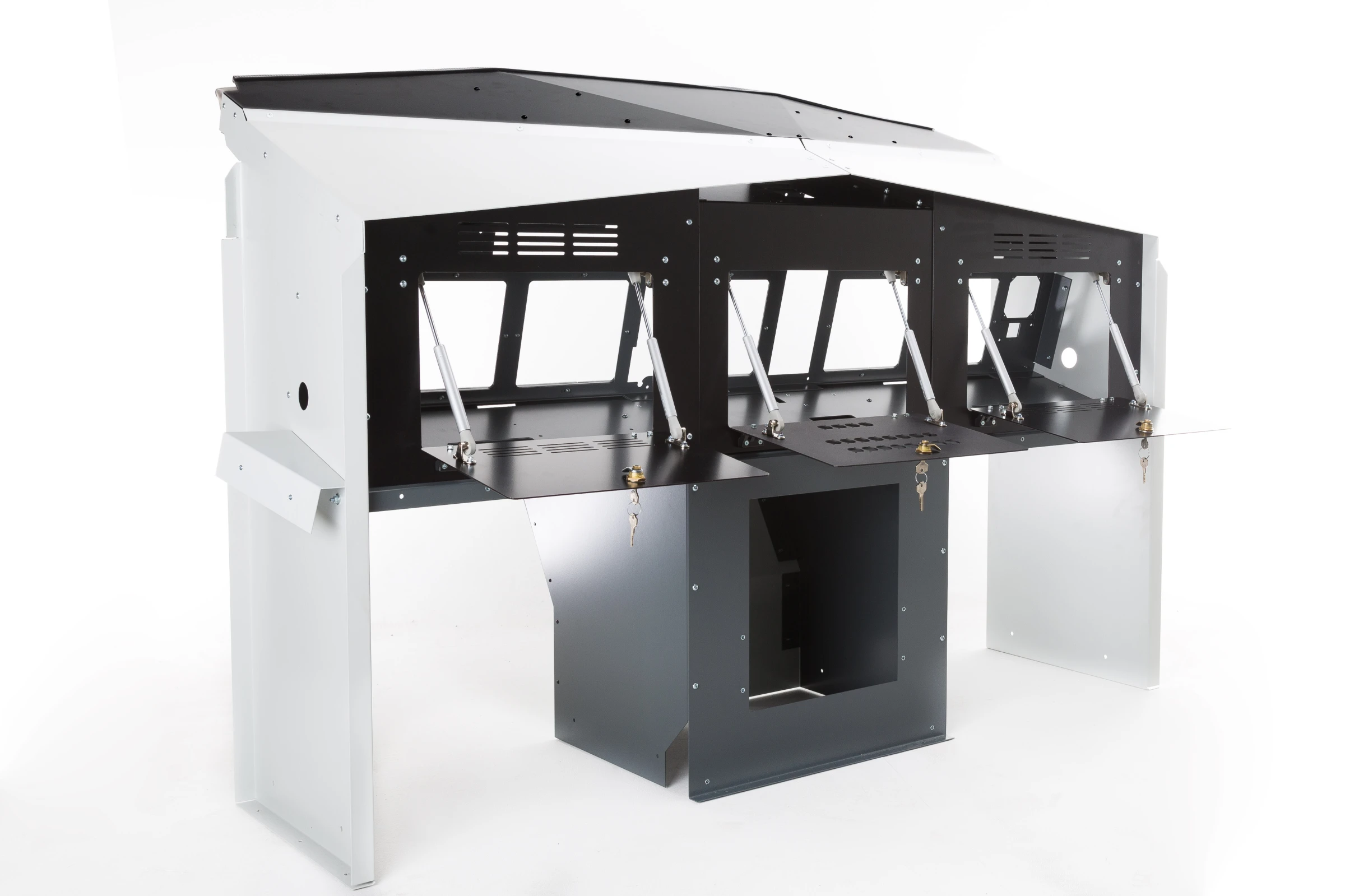

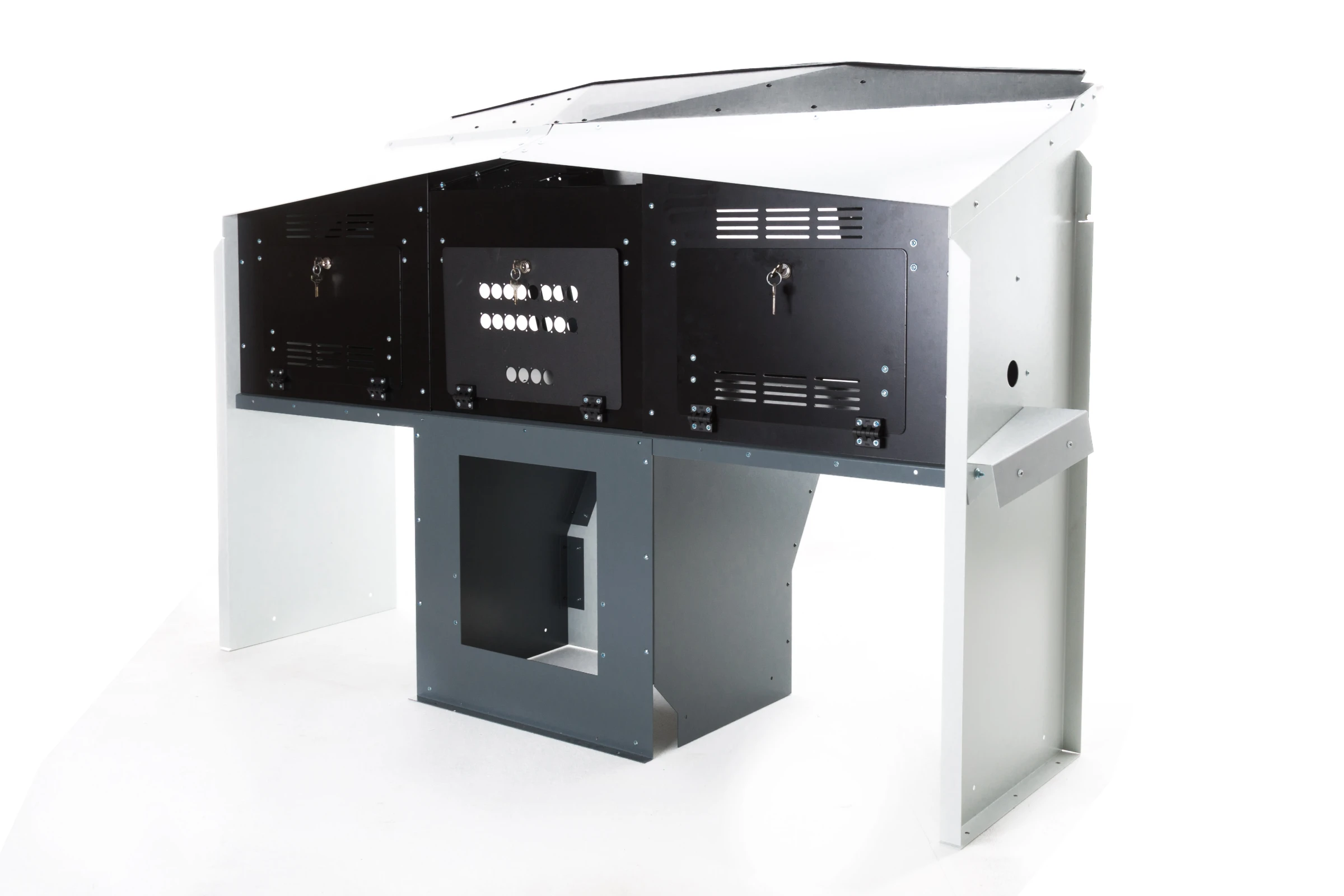

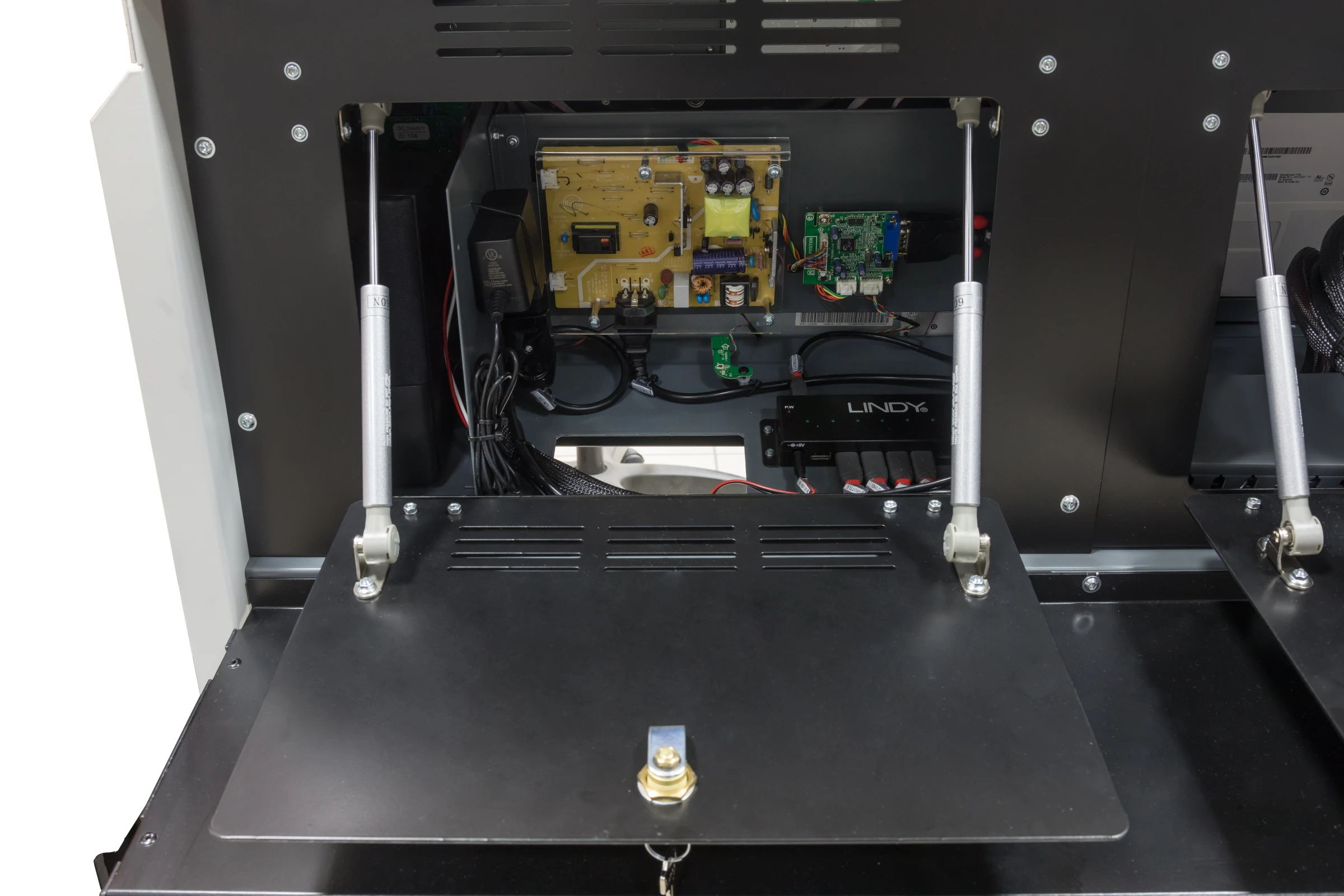

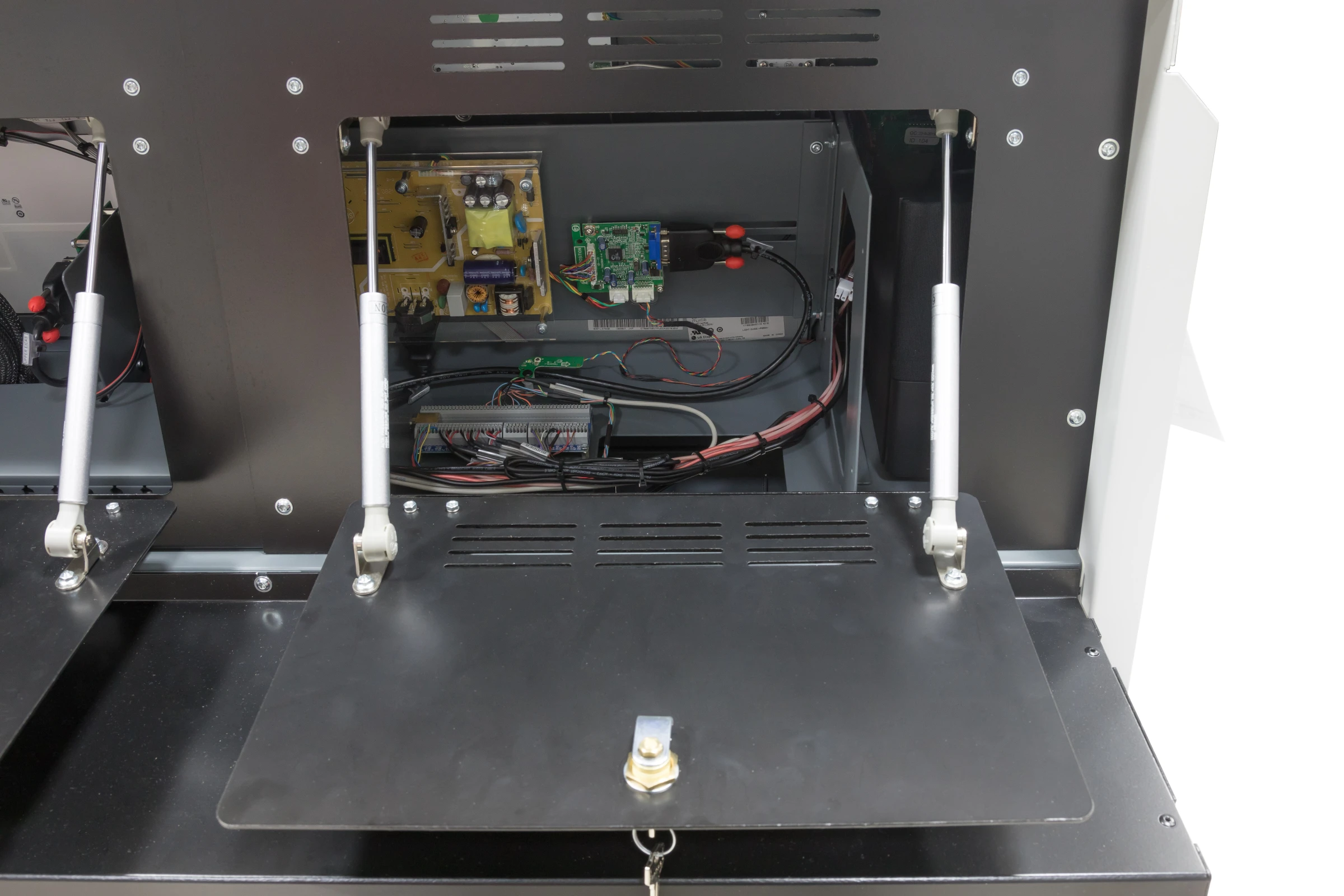

Allow easy inspection of the wiring for maintenance.

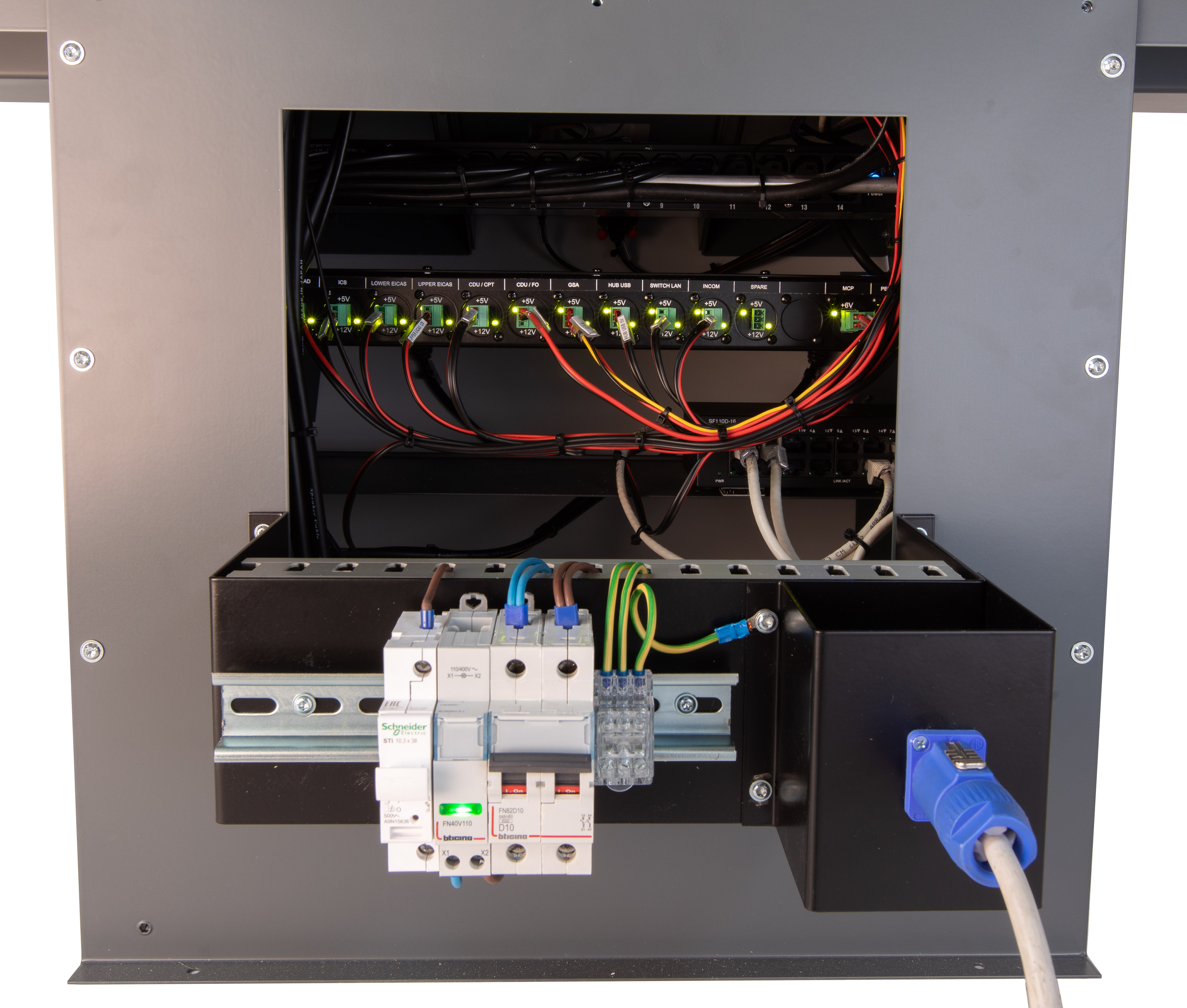

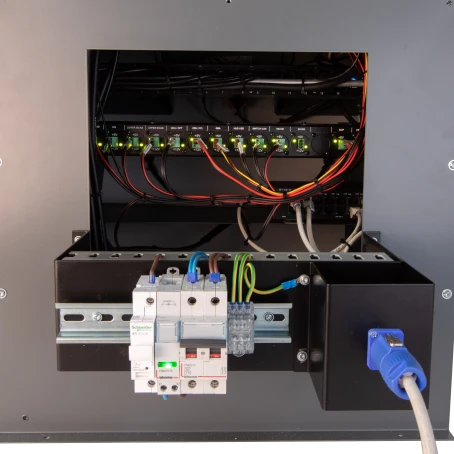

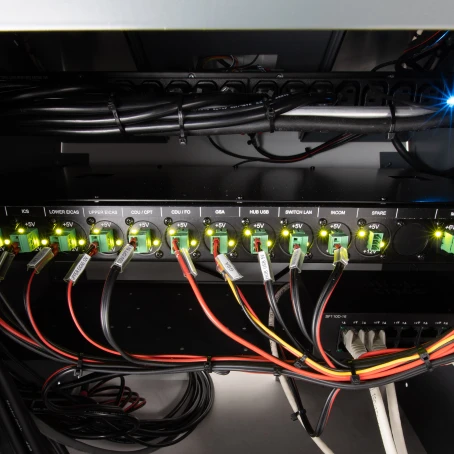

Dedicated wiring, with a power distributor made for this purpose.
Power AC connection and protection switch to increase user safety.
AC power source, AFDS Flood light and 3-point Background light.
Build to last and all function are working. Upgradeable firmware via browser.
The Main Instrument Panel is the central element of the cockpit. We build our MIPs for continuous operations and interconnectivity in mind.
As an experienced Systems Integrator, we are able to build our MIPs with neat and precise cabling, clear and rational components layout and with easy expansion capabilities, thanks to the full predispositions.
From high quality PSU, with breakers, lifesaver switch and industrial power distribution panels, to professional and high-specs cabling and connectors for long-time, trouble-free operations.
Our MIPs will ship to you completely tested and ready for use, as per FSC philosophy.
We believe that reliability and failure-free operations are the keys for a professional flight simulator.
We researched and hand picked each and every single component, and even engineered and built, with a no-compromise mindset, the parts that, when found on the market, did not met our expectations. One example of that are our new, FSC engineered, RUDDER PEDALS PRO, extremely sturdy and precise, with a perfect, real-world feeling.

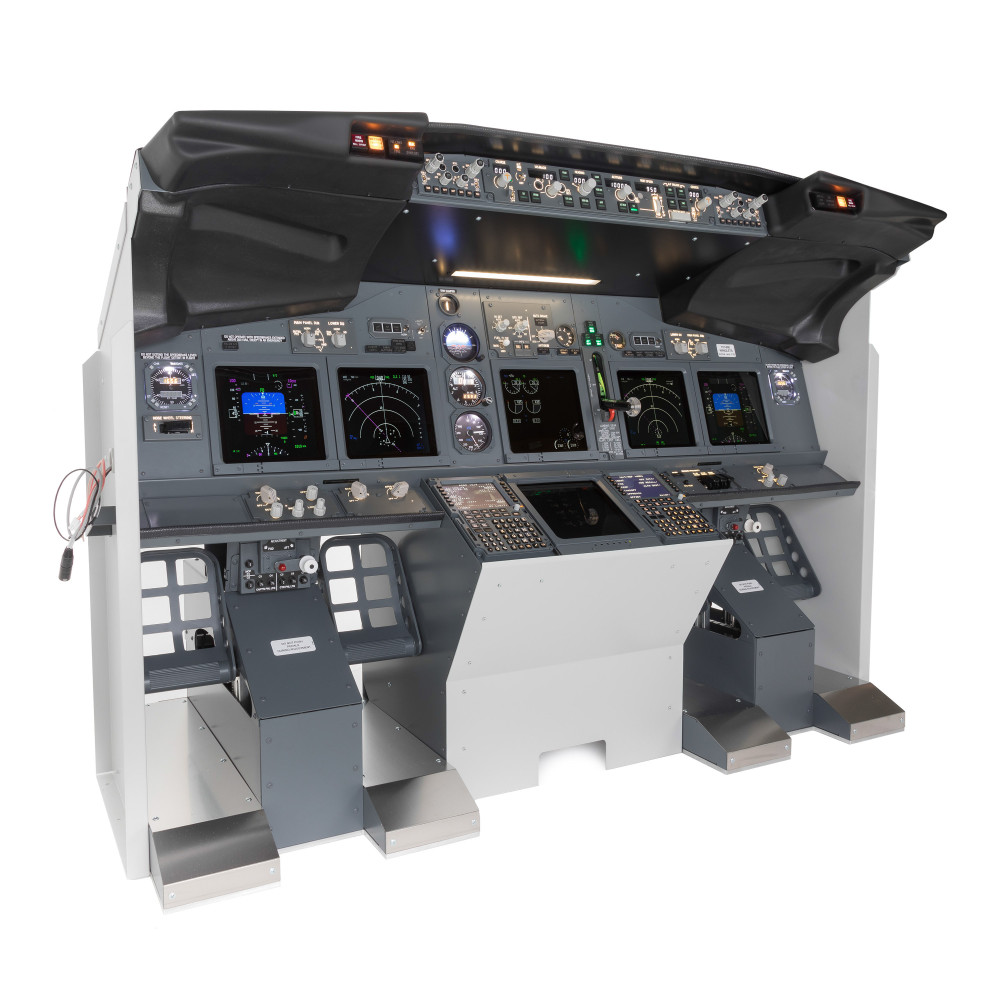

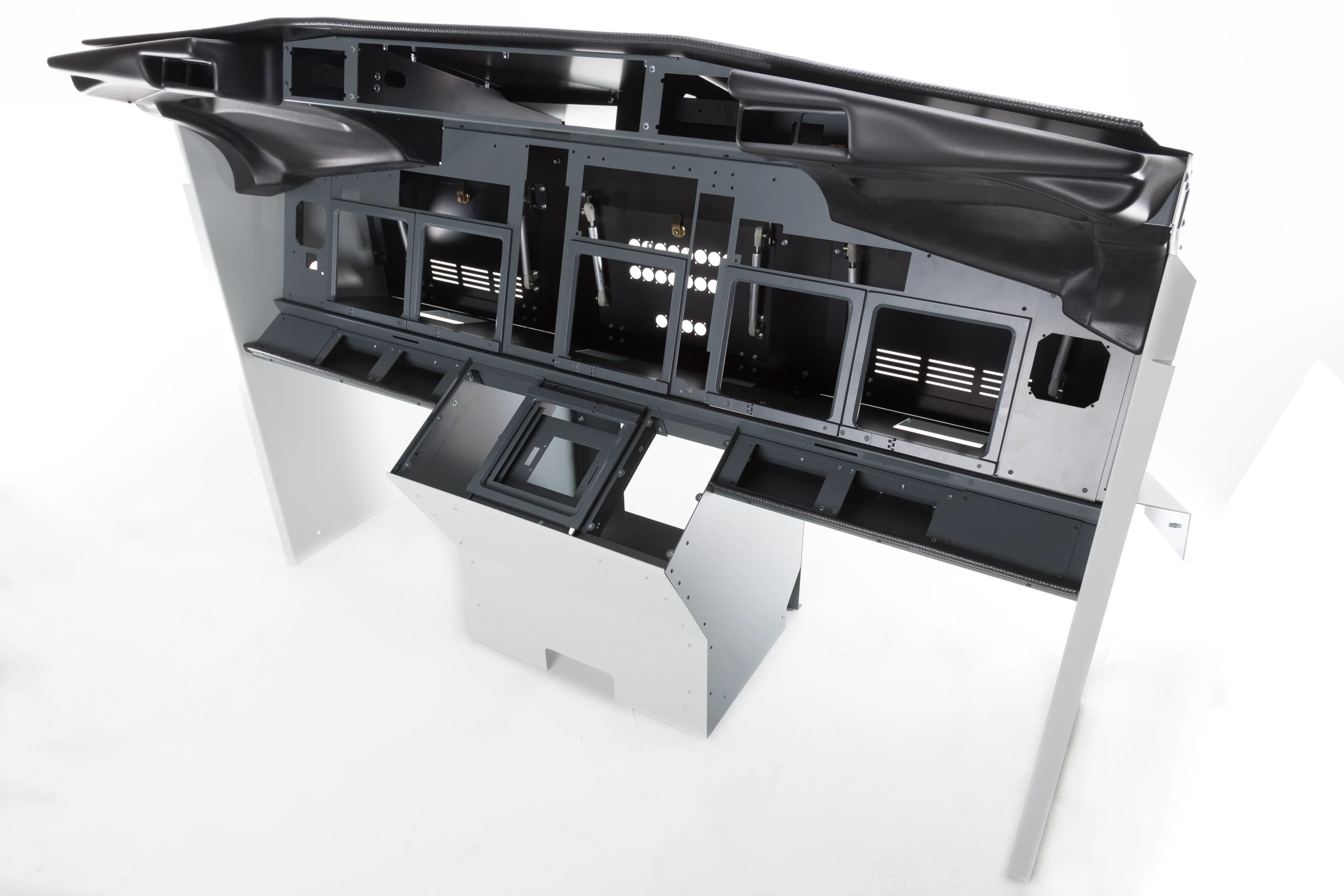

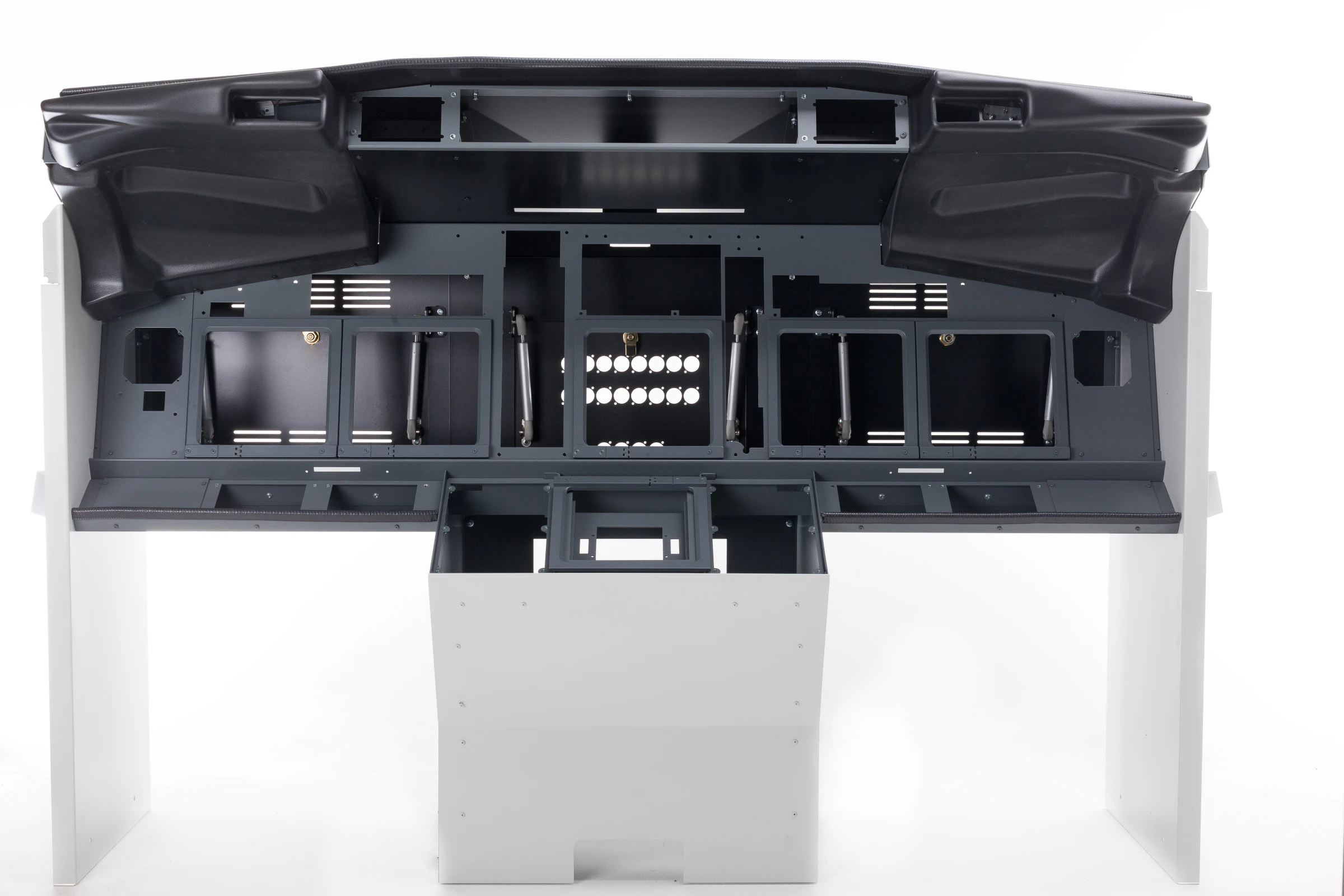

FSC B737NG MIP PRO 2 is a 1:1 scale replica of the original one. Fully made of metal, it is built to last and engineered for an easy installation of additional components and integration with external systems.
The FSC MIP PRO 2 will ship to you with full cabling, regardless of your choice of components.
We decided to have this peculiar approach to our product because we believe that a full predisposition for future expansions is the way to go, because it limits downtime and prevents possible problems due to multiple cable installations performed at different times.

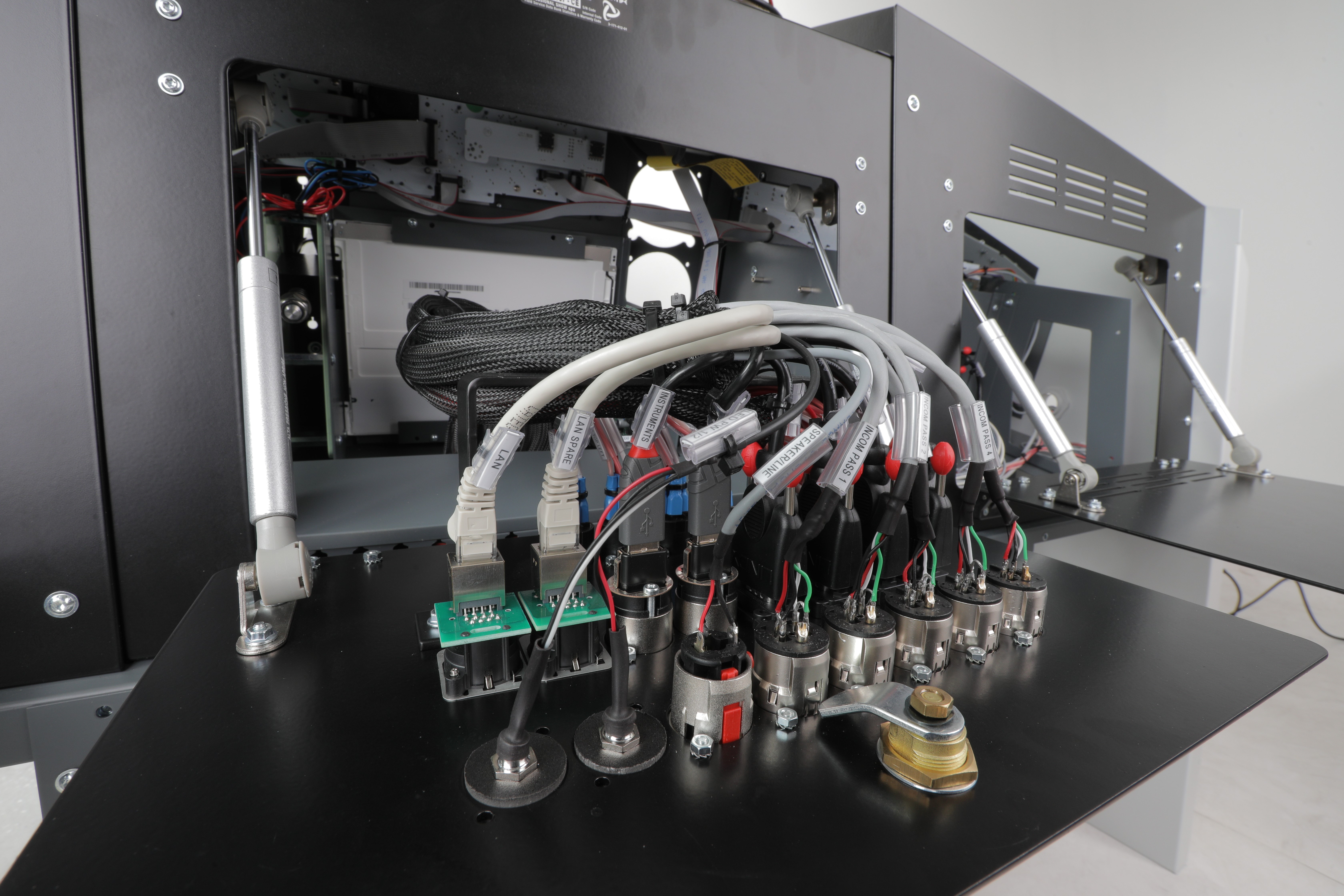

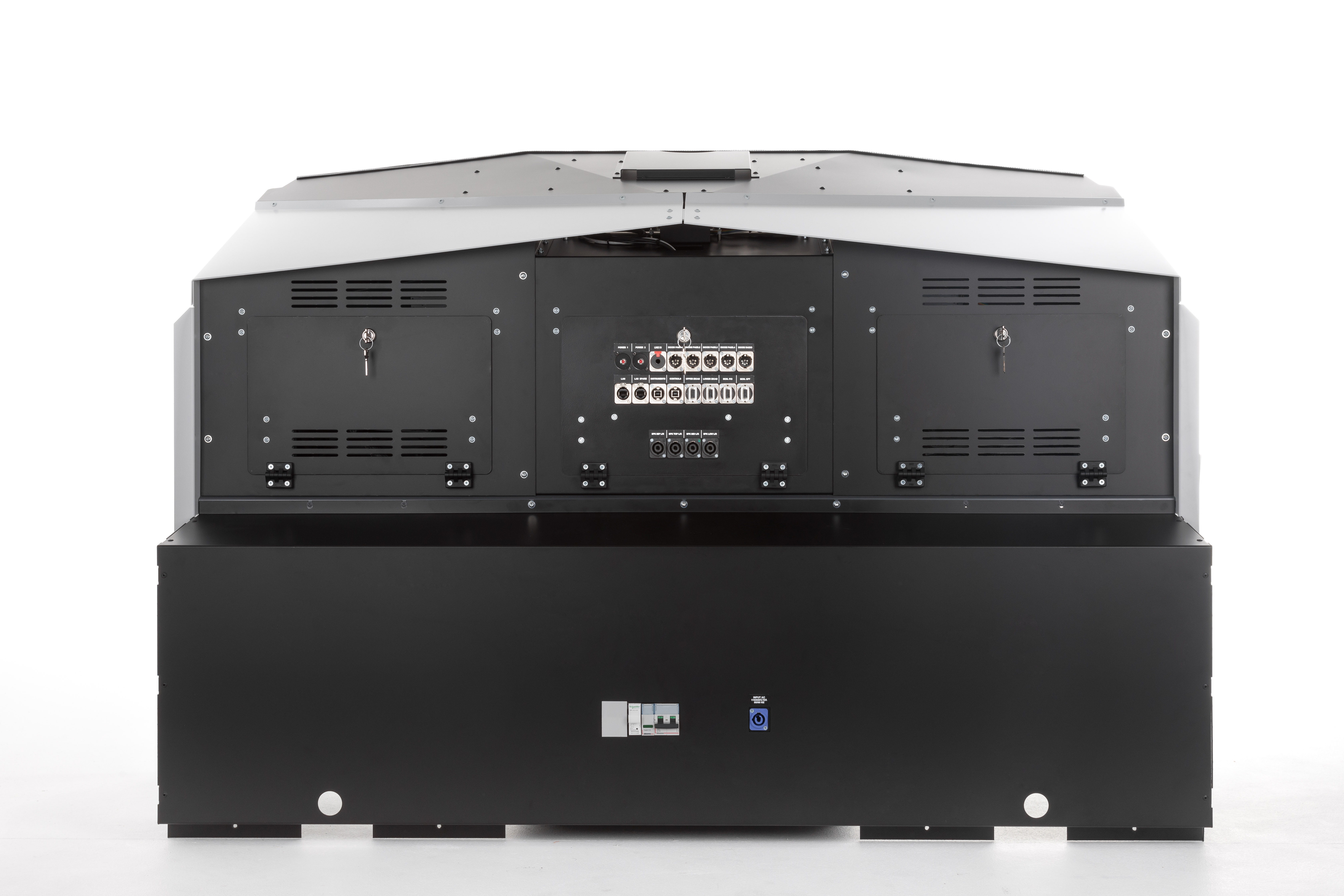

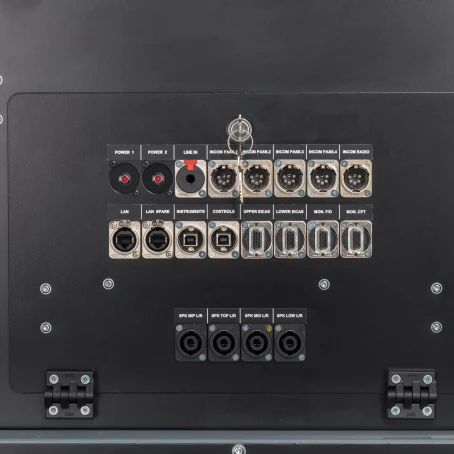

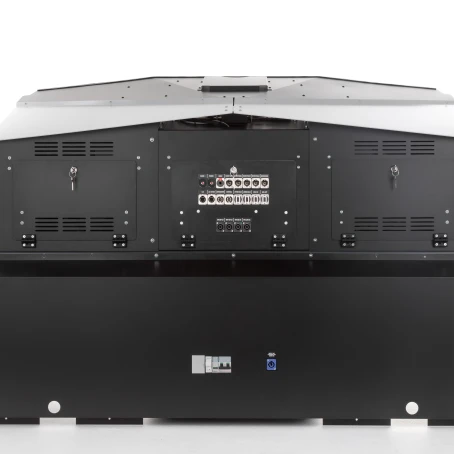

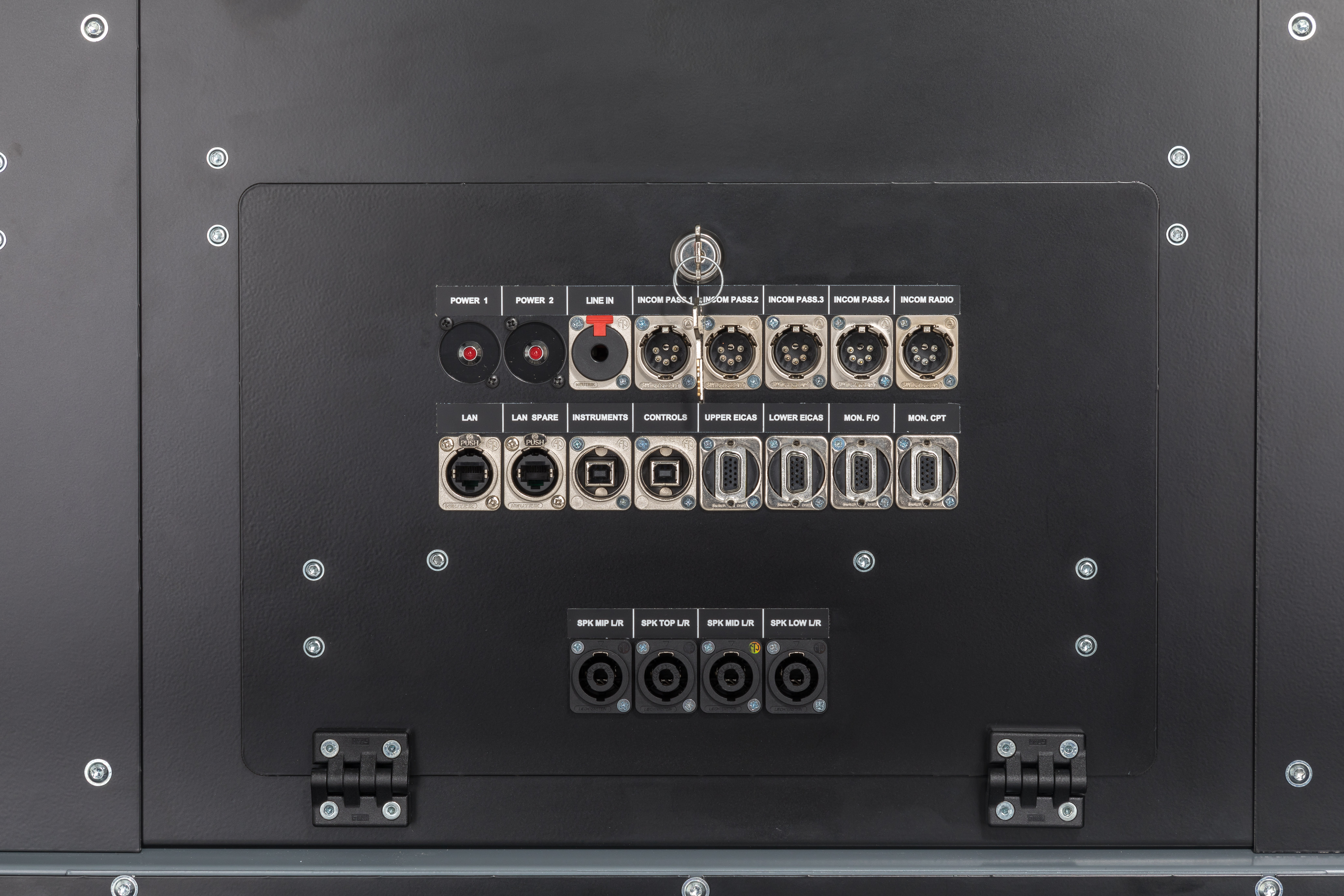

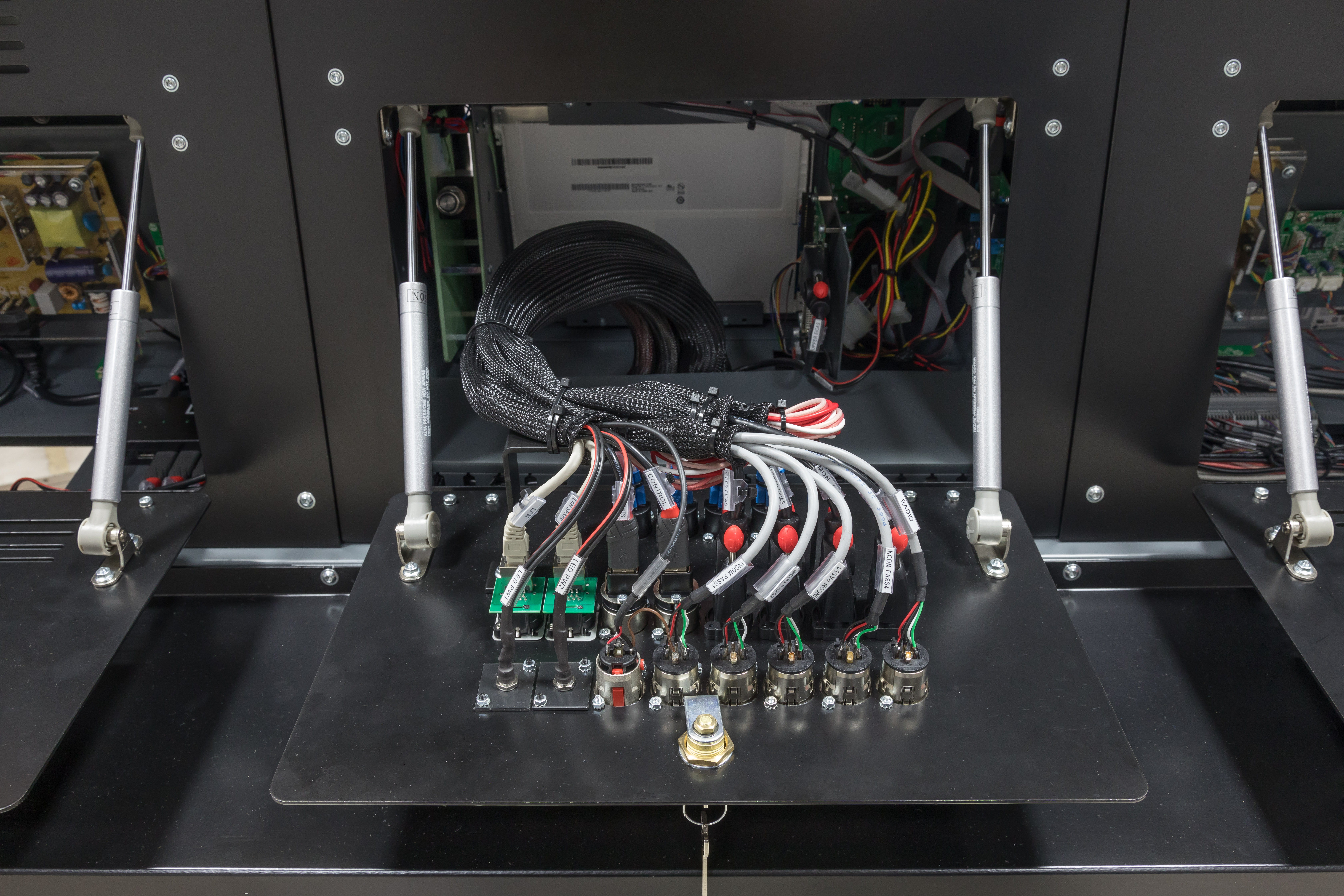

Rear panel with the connections for: LAN (with redundancy) , USB x 2, VGA x 4 , intercoms x 5, audio line in, audio power ins x 8
High resolution joystick interface included and fully wired
Signal and power cables already installed for:
It may seem anachronistic and outdated, yet the analog VGA connection offers multiple advantages, and the disadvantage in the signal is rendered insignificant due to the low resolution required to correctly display the PFD and ND screens. The advantages are essentially the always precise repositioning of the screens even if the MIP is turned off and on again while the PC is running, which is impossible to do with HDMI screens.
A Daisy Chain connection is a type of configuration where multiple devices are connected in series, one after the other, forming a chain. In this setup, each device is directly connected to the next, creating a continuous line of connections.
The main connection is the MCP, without which it is not possible to connect all other peripherals to the computer.
We prepare our products for dispatch with care, to ensure they reach our customers in exactly the same condition as when they leave our premises.
We avoid generic packaging and work with specialist partners who create bespoke solutions for us for each product, using extremely robust, high-quality packaging materials.
Where necessary, we provide additional protection for individual components using heat-sealed, multi-layer internal barriers to ensure complete protection against moisture, temperature fluctuations and any extreme weather conditions.
